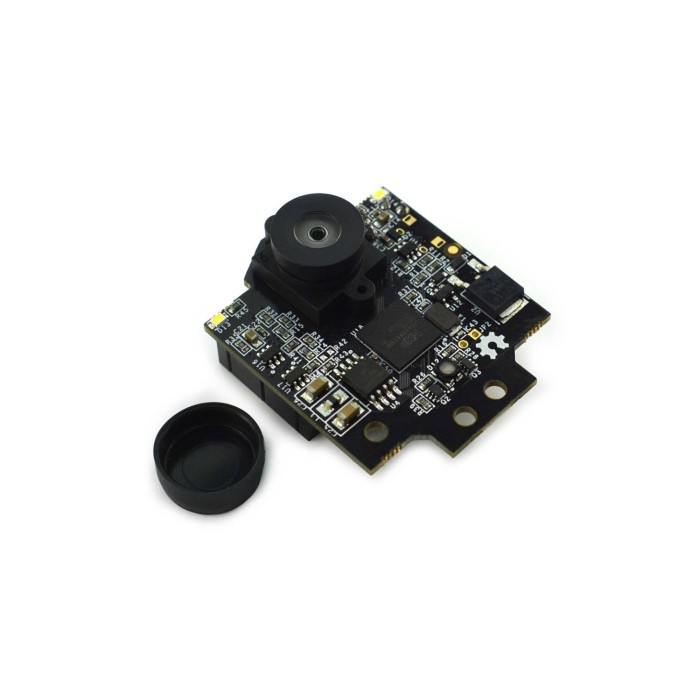

Pixy2 CMUcam5 Image Sensor - Arduino Compatible (made in China)
$109.0000
In stock
SKU
CAM-01-001
Volume discounts:
- +5 4 % $104.6400
- +10 6 % $102.4600
- +25 8 % $100.2700
- +50 10 % $98.0900
- +100 12 % $95.9100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Raspberry Pi Camera Module - 8 Megapixel , 1080p Previous
The Pixy2 CMUcam5 is a fast and powerful image sensor that can be trained to recognize and track objects by color, shape, and size. With the ability to track hundreds of objects at once and process full frames at 50 fps, it's ideal for robotics, automation, and embedded vision systems. It uses an efficient color-based filtering method that is stable under lighting changes and sends only the necessary data to your microcontroller.
The Pixy2 is powered by an NXP LPC4330 dual-core processor and features multiple interfaces including UART, SPI, I2C, USB, and analog/digital output, allowing easy integration with platforms like Arduino, Raspberry Pi, or BeagleBone.
Specifications of Pixy2 CMUcam5
- Processor: NXP LPC4330, dual-core, 204 MHz
- Image Sensor: Omnivision OV9715, 1/4", 1280 x 800 resolution
- Lens Field of View: 75° horizontal, 47° vertical
- Lens Type: Standard M12 (interchangeable)
- RAM: 264 KB
- Flash: 1 MB
- Power Consumption: 140 mA (typical)
- Power Input: USB (5V) or unregulated 6V to 10V
- Data Interfaces: UART, SPI, I2C, USB, digital, analog
- Dimensions: 2.1" x 2.0" x 1.4"
- Weight: 27 grams
Documents:
| Interface Type | Digital, Analog, USB, UART, I2C, SPI |
|---|---|
| Operating Voltage (V) | 6 to 10 V |
| Operating Current (mA) | 140 mA |
| Dimensions (mm) | 53x51x36 mm |
| Mounting Type | Screw holes |
| Function | Image Processing |
| Memory Capacitry | 264 KB RAM, 1 MB Flash |
| Camera Resolution | 1280 x 800 |
| Main Protocols | I2C, SPI, UART, USB |
| Application | Robotics, Computer Vision |
| Output Type | Analog Voltage, Digital |
| Programmable | Configurable |
| Chipset | LPC4330, Omnivision OV9715 |
