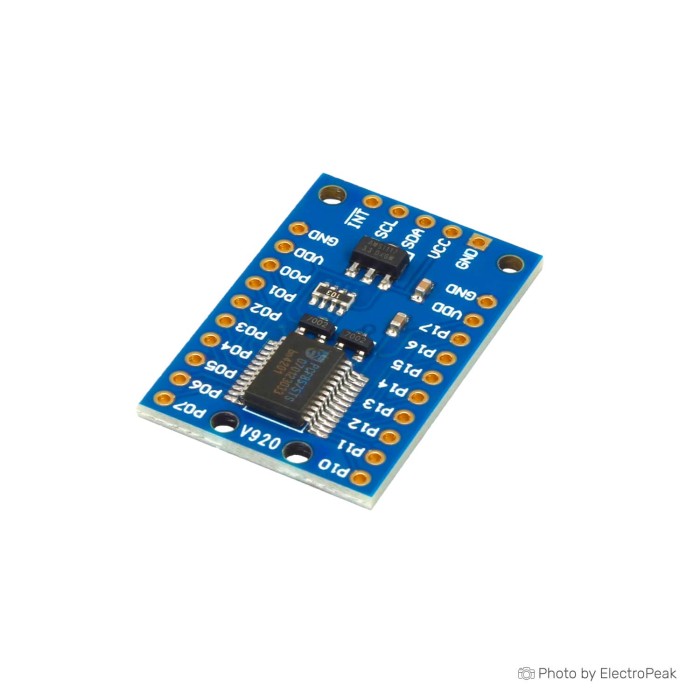

PCF8575 16 Channel I2C IO Expansion Module
$1.2500
In stock
SKU
COM-05-102
Volume discounts:
- +50 4 % $1.2000
- +100 6 % $1.1800
- +300 8 % $1.1500
- +500 10 % $1.1300
- +1000 12 % $1.1000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Ready to Use CH340 USB to TTL UART Serial Convertor Module for PCBs Previous
The PCF8575 16 Channel I2C IO Expansion Module is an I2C input/output expansion module for digital control applications. It provides 16 digital I/O ports for extending the available connections on microcontrollers and other devices. The module supports a wide operating voltage range and uses internal pull-up resistors on each I/O pin. It also includes address select pins for configuring multiple I2C addresses. This module is suited for projects that need additional digital inputs and outputs through a single I2C interface.
Features of PCF8575 16 Channel I2C IO Expansion Module - 2.5V To 6V
- I2C communication
- 16 digital I/O ports
- Wide operating voltage range
- Internal pull-up resistors
- Multiple I2C address selection
Specifications of PCF8575 16 Channel I2C IO Expansion Module - 2.5V To 6V
- Interface: I2C
- Number of Channels: 16 digital I/O ports
- Operating Voltage: 2.5V to 6V
- Input/Output Voltage: Same as operating voltage
- Current Consumption: <1mA in active mode
- Current Consumption: <1µA in standby mode
- Pull-up Resistors: Internal pull-up resistors (10kΩ) for each I/O pin
- Address Select Pins: 3 address select pins for configuring up to 8 different I2C addresses
- Dimensions: 32.2x21mm
How to Use PCF8575 16 Channel I2C IO Expansion Module - 2.5V To 6V
- Connect the module to your I2C bus.
- Set the address select pins as needed.
- Use the 16 digital I/O ports in your project.
More Info
- Supports digital I/O expansion through a single I2C interface.
- Useful for microcontroller-based projects, automation systems, and robotics.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.5V to 6V |
| Operating Current (mA) | <1mA in active mode, <1µA in standby mode |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 32.2x21mm |
| Interface Category | I2C Serial Interface Board Module |
| Output Type | Digital |
| Channels | 16-channel |
| Chipset | PCF8575 |
| Voltage Range | 2.5V to 6V |
| Protocols | I2C |
| Conversion Type | I2C to Parallel |
