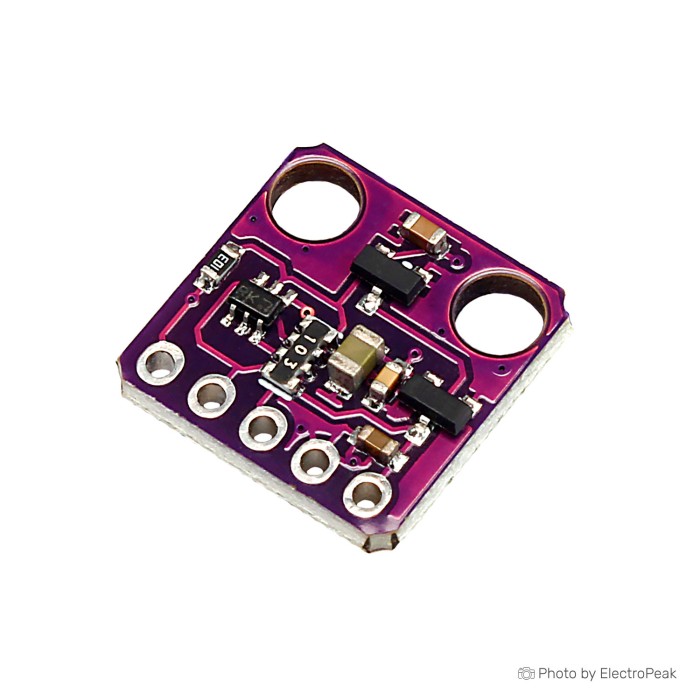

PAJ7620U2 Gesture Recognition Sensor Module
$5.9500
In stock
SKU
SEN-24-028
Volume discounts:
- +25 4 % $5.7000
- +50 6 % $5.5700
- +100 8 % $5.4500
- +300 11 % $5.3200
- +500 13 % $5.1900
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
APDS-9960 Infrared Gesture Sensor Module Previous
The PAJ7620U2 Gesture Recognition Sensor Module is a gesture recognition sensor module for detecting hand and finger movements. It recognizes 9 gestures and provides access to gesture information through the I2C bus. The module also includes built-in proximity detection for sensing object approach or departure. It is designed for flexible power-saving operation and stable performance across a wide operating range.
The PAJ7620U2 Gesture Recognition Sensor Module supports direct digital communication and includes ambient light noise cancellation. It is suitable for gesture-based input and proximity detection applications that require compact sensor integration. The module combines gesture sensing, proximity detection, and I2C communication in one unit.
Features of PAJ7620U2 Gesture Recognition Sensor Module
- 9 gesture recognition
- Built-in proximity detection
- I2C interface
- Flexible power-saving scheme
- Ambient light noise cancellation
- Ambient light immunity
Specifications of PAJ7620U2 Gesture Recognition Sensor Module
- Supply voltage: 2.8V to 3.3V
- I/O voltage: 1.8V to 3.3V
- Gesture set: Up / Down / Left / Right / Push / Pull / CW / CCW / Wave
- Gesture speed in Normal Mode: 60°/s to 600°/s
- Gesture speed in Gaming Mode: 60°/s to 1200°/s
- Ambient light immunity: < 100k Lux
- I2C interface speed: up to 400 kbit/s
- Pull-up voltage for I2C bus and interrupt line: 1.8V to 3.3V
- Operating temperature: -40°C to +85°C
How to Use PAJ7620U2 Gesture Recognition Sensor Module
- Connect the module to a microcontroller or embedded system through the I2C bus.
- Read the detected gesture or proximity data from the digital interface.
More Info
- Supports gesture-based input.
- Suitable for proximity sensing applications.
- Designed for use with microcontrollers and embedded systems.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 2.8V to 3.3V |
| Operating Temp (°C) | -40 to 85 |
| Output Type | I2C |
| Sensing Method | Optical |
| Chipset | PAJ7620U2 |
| Sensor Model | PAJ7620U2 |
