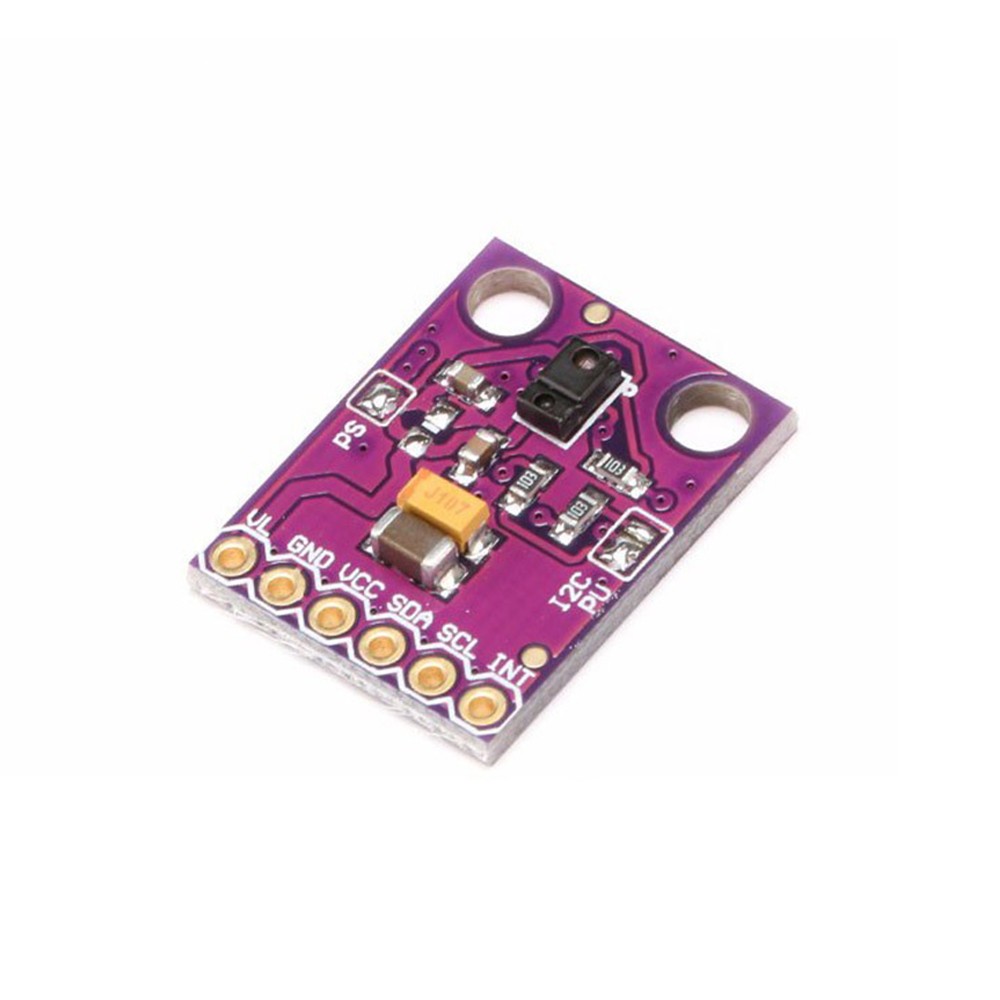

This is the RGB and Gesture Sensor, a small breakout board with a built-in APDS-9960 sensor that offers ambient light and color measuring, proximity detection, and touchless gesture sensing. With this RGB and Gesture Sensor you will be able to control a computer, microcontroller, robot, and more with a simple swipe of your hand! This is, in fact, the same sensor that the Samsung Galaxy S5 uses and is probably one of the best gesture sensors on the market for the price.

The APDS-9960 is a serious little piece of hardware with built in UV and IR blocking filters, four separate diodes sensitive to different directions, and an I2C compatible interface. For your convenience we have broken out the following pins: VL (optional power to IR LED), GND (Ground), VCC (power to APDS-9960 sensor), SDA (I2C data), SCL (I2C clock), and INT (interrupt). Each APDS-9960 also has a detection range of 4 to 8 inches (10 to 20 cm)

Specifications of APDS-9960 Infrared Gesture Sensor Module:

  • Model: GY-APDS9960
  • chip: APDS-9960
  • Power supply: 3.3v
  • Communication: I2C/IIC communication protocol
  • I2C Address: 0x39
  • RGBC Light Sensing with Integrated UV-IR Block Filter
  • Integrated IR LED
  • detection range : 4 to 8 inches (10 to 20 cm)

Application of APDS-9960 Infrared Gesture Sensor Module:

  • RGB Infrared Gesture Sensor
  • Motion Direction Recognition Module
  • Display Backlight Control
  • Correlated Color Temperature Sensing
  • Cell Phone Touch-screen Disable
  • Digital Camera Touch-screen Disable
  • Mechanical Switch Replacement
  • Gesture Detection
More Information
Interface TypeI2C
Operating Voltage (V)3.3V
Operating Temp (°C)-40 to 85
Mounting TypeTHT (Through Hole)
Output TypeDigital
Detection Distance10 to 20 cm
Detection Angle (°)60 degrees
Sensing MethodInfrared (IR)
ChipsetAPDS-9960
Sensor ModelGY-APDS9960
