Waveshare Ov5640 5 Megapixel Camera Board (C) Auto Focusing Onboard Flash
$24.9500
In stock
SKU
CAM-01-005
Volume discounts:
- +25 4 % $24.0700
- +50 5 % $23.6300
- +100 7 % $23.1800
- +300 9 % $22.7400
- +500 11 % $22.3000
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
VGA OV7670 Camera Module 640X480 Previous

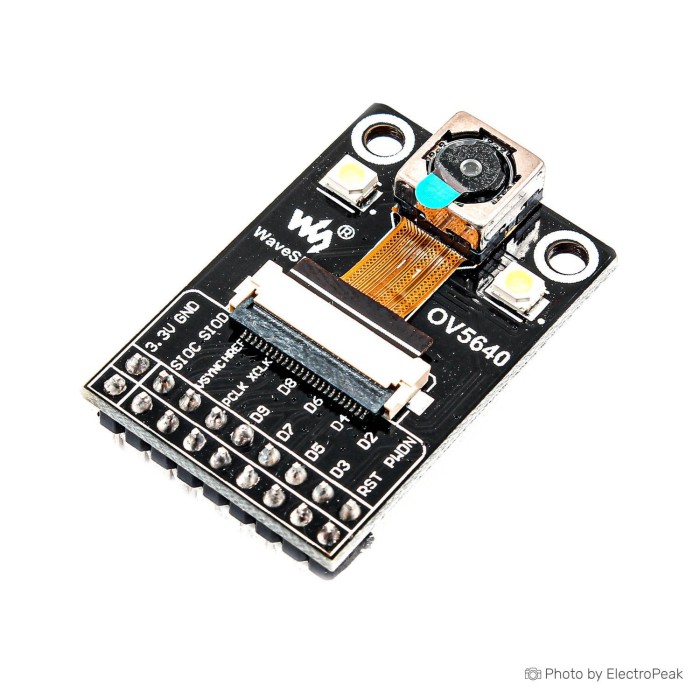

Waveshare OV5640 5MP Camera Board (C) is a high-resolution camera board with auto focus and onboard flash. It is based on the OV5640 image sensor and provides 5 megapixel image output. The board supports image resolution up to 2592x1944 and is designed with an adjustable focal length. It also includes flash support for low-light capture. This camera board uses SCCB control and an 8-bit DVP data interface.
Features of Waveshare OV5640 5MP Camera Board (C) - Auto Focus, Flash
- 5 megapixel image output
- Auto focus support
- Onboard flash support
- 2592x1944 image resolution
- Adjustable focal length
- SCCB control interface
- 8-bit DVP data interface
Specifications of Waveshare OV5640 5MP Camera Board (C) - Auto Focus, Flash
- Camera resolution: 5 megapixel
- Image resolution: 2592x1944
- Sensor: OV5640
- Auto focus: supported
- Flash: onboard LED flash
- Automatic photo control: AEC, AWB, ABF, ABLC
- Image quality control: color saturation, black-and-white level, color spectrum, image sharpness, lens correction
- Operating temperature: -30 to 70 degrees Celsius
- Voltage: 3.3V DC
- Working voltage: 3.3V DC
- CCD size: 0.25 inch
- Aperture (F): 2.8
- Focal length: 3.37 mm (adjustable)
- Diagonal angle: 67.4 degrees
- Control interface: SCCB (compatible with I2C)
- Data interface: 8-bit DVP
- Size: 35.70 x 23.90 mm
How to Use Waveshare OV5640 5MP Camera Board (C) - Auto Focus, Flash
- Connect the board through the SCCB control interface and 8-bit DVP data interface.
- Supply 3.3V DC to the camera board.
- Configure auto focus and image settings as needed.
- Use the onboard flash when low-light capture is required.
More Info
- Waveshare camera board
- OV5640 image sensor
- Suitable for electronics and robotics projects
| Interface Type | MIPI,Parallel,I2C |
|---|---|
| Operating Voltage (V) | 3.3V |
| Operating Temp (°C) | -30 to 70 |
| Dimensions (mm) | 35.70 x 23.90 mm |
| Output Type | Digital |
| Resolution | 2592x1944 |
| Pixel Resolution | 5MP |
| Field of view angle (degrees) | 67.4 degrees |
| Chipset | OV5640 |
| Sensor Type | CMOS |
| Output Interface | Digital |
| Application | Machine vision,Surveillance systems,Smart projects,Security and surveillance systems,Robotic machine vision,Smart home systems,IoT projects,Industrial imaging and image processing |
| Focal Length | 3.37 mm (adjustable) |
| Aperture | 2.8 |
