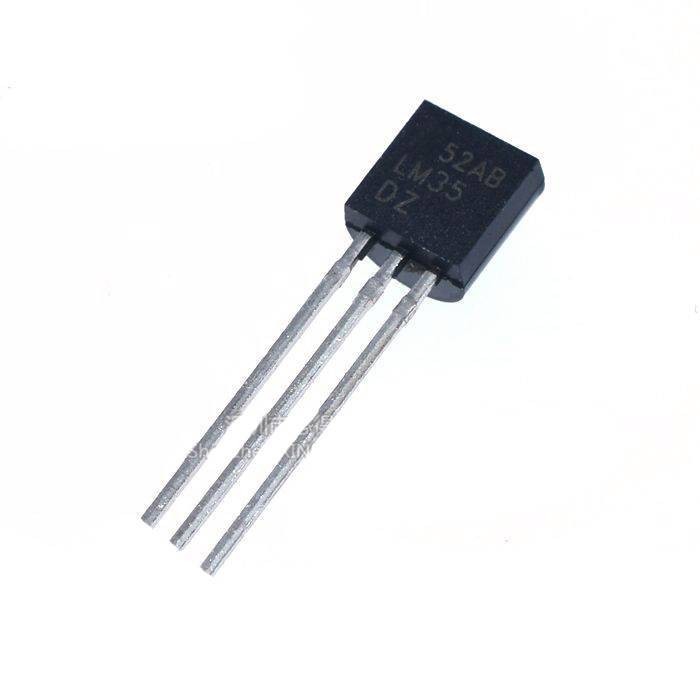

LM35DZ Temperature Sensor (Premium Original)
$0.7000
In stock
SKU
SEN-10-079
Volume discounts:
- +50 4 % $0.6700
- +100 6 % $0.6600
- +300 9 % $0.6400
- +500 10 % $0.6300
- +1000 13 % $0.6100
Product Variations:
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LM335 Temperature Sensor (Premium Original) Previous
LM35DZ Temperature Sensor is a precision analog temperature sensor with a linear output proportional to temperature in Celsius. It requires no external calibration or trimming and is calibrated directly in degrees Celsius. The sensor offers low current consumption, minimal self-heating, and a TO-92 plastic package. It is suitable for precision temperature measurement in electronics, robotics, and control systems. LM35DZ provides stable analog temperature sensing across a wide operating range.
Features of LM35DZ Temperature Sensor - TO-92, 10mV/°C
- Analog temperature output
- Linear 10 mV/°C scale
- No external calibration needed
- Low current consumption
- Minimal self-heating
- TO-92 plastic package
Specifications of LM35DZ Temperature Sensor - TO-92, 10mV/°C
- Input voltage: 4V to 30V
- Output: Analog with a linear scale of 10 mV/°C
- Accuracy at 25°C: ±0.6°C / ±1.5°C (tested limit)
- Accuracy at max temperature: ±0.9°C / ±2°C (design limit)
- Accuracy at min temperature: ±0.9°C / ±2°C (design limit)
- Non-linearity: ±0.2°C / ±0.5°C (design limit)
- Current consumption: Less than 60 µA
- Self-heating: Approximately 0.08°C in still air
- Output impedance: 0.1 Ω for 1 mA load
- Operating temperature range: −55°C to +150°C
- Package: TO-92 plastic package
- Special features: No calibration needed, suitable for remote sensing, high accuracy, low cost due to wafer-level trimming
How to Use LM35DZ Temperature Sensor - TO-92, 10mV/°C
- Connect the sensor to a suitable input voltage within the specified range.
- Read the analog output as a linear temperature signal in Celsius.
- Use the output for temperature measurement or monitoring.
More Info
- Part of the LM35 series.
- Packaged in a hermetic TO-92 transistor package.
