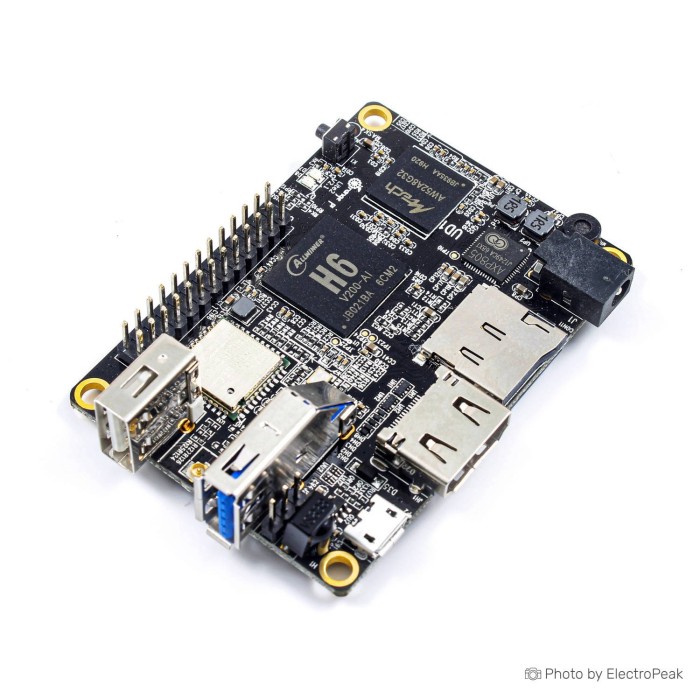

Orange Pi Lite 2 Development Board
$0.0000
Out of stock
SKU
MIN-02-024
Product Variations: View out of stock variants
Add an Accessory:
Shop with confidence Learn More
Orange Pi One H3 Quad Core Development Board Previous
Orange Pi Lite 2 Development Board is an open-source single-board computer built for compact computing and development projects. It supports Android 7.0, Ubuntu, and Debian. The board is based on the AllWinner H6 SoC and includes 1GB LPDDR3 memory. It combines CPU, GPU, wireless connectivity, audio, video, and GPIO in one development board. The Orange Pi Lite 2 Development Board is designed as a complete board for electronics and robotics-style applications.
Features of Orange Pi Lite 2 Development Board
- Open-source single-board computer
- Android, Ubuntu, and Debian support
- AllWinner H6 SoC
- 1GB LPDDR3 memory
- Wi-Fi and Bluetooth support
- HDMI 2.0a output
- 26-pin GPIO header
Specifications of Orange Pi Lite 2 Development Board
- CPU: H6 Quad-core 64-bit ARM Cortex™-A53
- GPU: Mali T720
- OpenGL ES3.1/3.0/2.0/1.1 support
- Speed: Over 70 GFLOPS
- Memory: 1GB LPDDR3
- Onboard storage: TF card (Max. 32GB) /MMC card slot
- Wi-Fi and Bluetooth: AP6255, IEEE 802.11 AC/bb/g/n, BT4.1
- Audio input: MIC
- Audio output: HDMI 2.0a
- Video input: CSI camera connector
- 8-bit digital camera interface support
- Maximum still capture resolution for parallel interface: Up to 5M
- Video decoding: H265/HEVC Main/Main10 [email protected] High-tier; 4K@60fps, up to 6Kx4K@30fps
- Video decoding: H264/AVC BP/MP/[email protected], MVC, 4K@30fps
- Video decoding: VP9, Profile 0/2, 4K@30fps
- Video decoding: AVS+/AVS JIZHUN profile@level 6.0, 1080P@60fps
- Video output: HDMI 2.0a TX with HDCP 2.2 output
- Power source: DC input and USB OTG input
- USB 2.0 ports: One USB 2.0 Host, one Micro USB 2.0
- USB 3.0 ports: One USB 3.0 Host
- GPIO pin: 26 Pins Header
- UART interface: One UART
- LED: Power LED and Status LED
- IR receiver: Yes
- Key: Power(K1)
- Supported OS: Android, Ubuntu, Debian
- Size: 69x48 mm
- Weight: 50 g
How to Use Orange Pi Lite 2 Development Board
- Install a supported operating system on the board storage.
- Connect power through the DC input or USB OTG input.
- Use the available ports, GPIO header, and interfaces for your project.
More Info
- The board includes Wi-Fi, Bluetooth, microphone, USB, and HDMI connections.
- The product size is 69x48 mm and the weight is 50 g.
| Processor (SoC) | AllWinner H6 |
|---|---|
| CPU | H6 Quad-core 64-bit ARM Cortex™-A53 |
| Architecture | ARM Cortex-A53 |
| RAM | 1GB |
| RAM Type | LPDDR3 |
| Storage Support | microSD |
| Storage Capacity | Max. 32GB |
| GPU/VPU | Mali T720 |
| Ethernet | No |
| Wi-Fi | WiFi 5 |
| Bluetooth | Bluetooth 4.1 |
| USB Ports | 1x USB 3.0 Host, 1x USB 2.0 Host, 1x Micro USB 2.0 (OTG) |
| Video Output | HDMI |
| Hardware Interfaces | CSI (Camera), UART |
| GPIO Pins | 26-pin header |
| Camera/Display | CSI (Camera) |
| Power Input | DC Jack and USB OTG |
| PCIe | No |
| Dimensions (mm) | 69x48 mm |
| OS Support | Ubuntu, Debian, Android |
| Weight (g) | 50 |
| Video Decoding | H265/HEVC Main/Main10 [email protected] High-tier (4K@60fps, up to 6Kx4K@30fps), H264/AVC BP/MP/[email protected], MVC (4K@30fps), VP9 Profile 0/2 (4K@30fps), AVS+/AVS JIZHUN profile@level 6.0 (1080P@60fps) |
