OpenBCI Cyton + Daisy Biosensing EEG Boards (16-Channels)
$8219.0000
In stock
SKU
SEN-21-044
Volume discounts:
- +5 4 % $7903.0700
- +10 6 % $7745.1100
- +25 8 % $7587.1400
- +50 10 % $7429.1800
- +100 12 % $7271.2100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping
Free delivery in 7-10 days by Express Shipping
More shipping info
Shop with confidence Learn More
OpenBCI EEG Electrode Cap Kit Previous

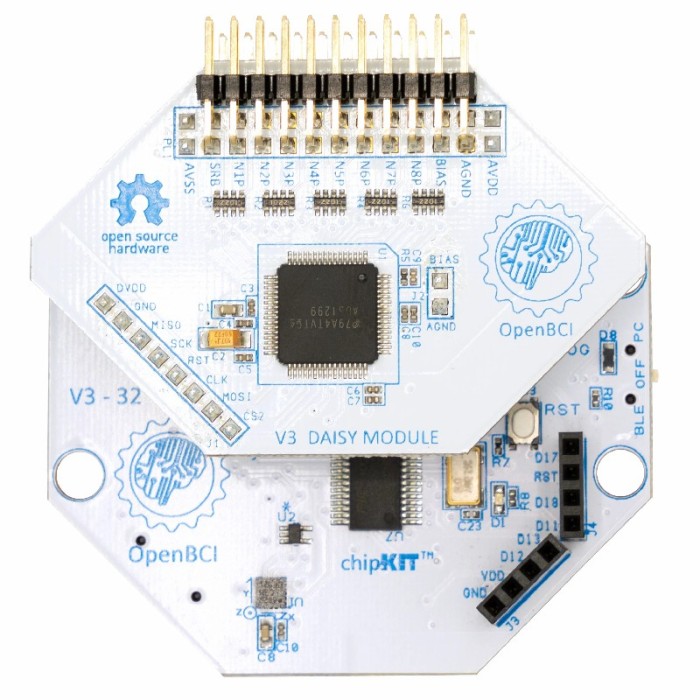

The OpenBCI Cyton + Daisy Biosensing Boards combine to form a 16-channel, Arduino-compatible bio-amplifier system ideal for EEG, EMG, and ECG applications. Built around the PIC32MX250F128B microcontroller, it features fast processing, high memory, 24-bit resolution, and wireless data transmission. The system is easy to set up for researchers and developers, offering compatibility with many biofeedback tools.
Specifications of Cyton + Daisy Biosensing Boards
- Channels: 16 differential high-gain, low-noise input channels
- Microcontroller: PIC32MX250F128B with chipKIT™ bootloader
- ADC: Two Texas Instruments ADS1299 (one per board)
- Data Resolution: 24-bit per channel
- Sampling Rate: 125Hz per channel
- Programmable Gain: 1, 2, 4, 6, 8, 12, 24
- Operating Voltage (Digital): 3.3V
- Operating Voltage (Analog): ±2.5V
- Input Voltage: ~3.3V to 12V (Do not exceed 6V battery)
- Accelerometer: LIS3DH
- Wireless Communication: RFduino™ Low Power Bluetooth™ radio via OpenBCI USB dongle
- Micro SD Slot: Included
- GPIO Pins: 5 pins (3 analog capable)
- Compatibility: Active and passive electrodes
Manufacture of Cyton + Daisy Biosensing Boards
| Platform | Arduino |
|---|---|
| Interface Type | Wireless |
| Operating Voltage (V) | 3.3V, ±2.5V, 3.3V to 12V |
| Output Type | Wireless |
| Resolution | 24-bit per channel |
| Biometric Parameter | EEG, ECG, EMG |
| Medical Certification | Consumer Grade |
| Application | EEG,EMG,ECG |
| Sensor Type | Active EEG sensors |
