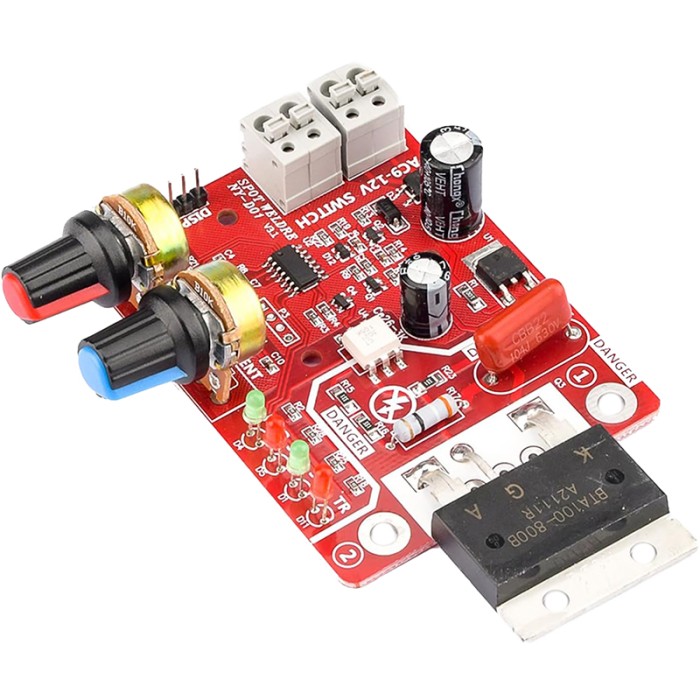

NY-D01 Spot Welding Machine Control Board
SAVE
As low as $6.9500
In stock
Only %1 left
SKU
TLS-12-018
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Velcro Cable Tie Previous
The NY-D01 Spot Welding Machine Control Board is a specialized controller for DIY and simple resistance welding applications. It uses a silicon-controlled phase-shifting trigger to regulate welding time and current for spot welding control. The board is built around an STM8 industrial microcontroller and includes optocoupler isolation for safe operation. High-precision potentiometers provide easy input, and a digital interface supports clear display of time and current settings.
Features of NY-D01 Spot Welding Machine Control Board
- Silicon-controlled phase-shifting trigger
- STM8 industrial-grade microcontroller
- Optocoupler isolation
- High-precision potentiometer input
- Digital display interface
- Screw-free fast connection
- On-board status indicators
- Zero-crossing detection circuit
Specifications of NY-D01 Spot Welding Machine Control Board
- Microcontroller: STM8 industrial-grade control
- Isolation: Optocoupler isolation between strong and weak currents
- Terminal Type: Screw-free fast connection for power and foot switch lines
- Time Input: 1-50 cycles (1 cycle = 20ms)
- Current Input Range: 30% to 99%
- Power Compatibility: Supports 100A SCR
- Indicators: On-board indicators for power, state, foot, and trigger status
- Phase Shift Accuracy: Equipped with a reliable zero-crossing detection circuit
- Dimensions: ---
How to Use NY-D01 Spot Welding Machine Control Board
- Connect the power and foot switch lines using the screw-free fast connection terminals.
- Adjust the time and current settings with the input controls.
- Use the board to control spot welding operation through the trigger and status indicators.
More Info
- Designed for DIY and simple resistance welding applications.
- Supports clear monitoring of power, state, foot, and trigger status.
| Operating Voltage (V) | 9V-12V AC |
|---|---|
| Mounting Type | Screw holes |
| Control Type | Thyristor |
| Channel Count | 1 |
| Switching Capacity | 100A SCR |
| Control Signal | Digital |
| Chipset | STM8 industrial-grade control |
| LED Count | 4 |
| Display Type | LED |
| Material | PCB |
| Input Type (AC/DC) | AC |
