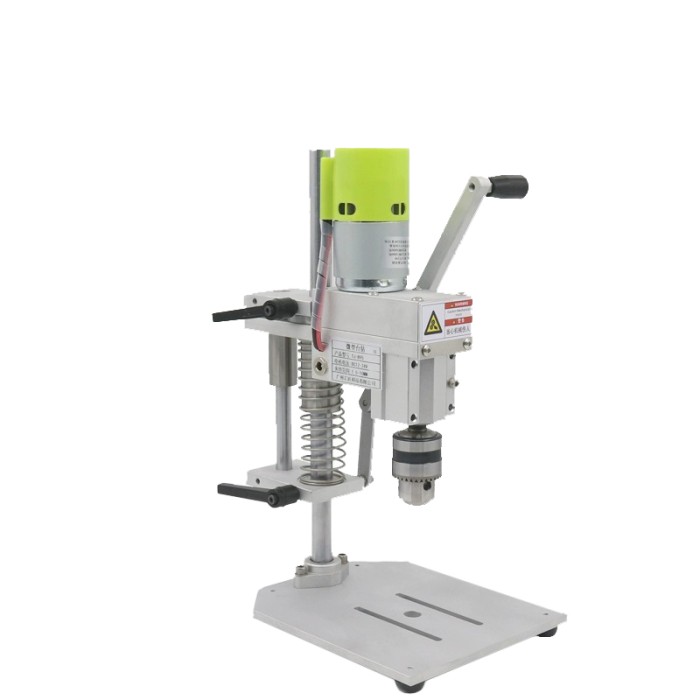

The Huijiang Micro Bench Drill (Model TZ-895) is a compact desktop bench drill designed for precision work. With its mini size, it is perfect for small-scale drilling tasks, making it ideal for workshops and hobbyists. The drill is powered by a 997 motor with adjustable voltage and speed, offering reliable performance. Its durable B12 chuck provides a clamping range of 1.5-10mm, and the drilling stroke and lifting stroke ensure versatility in use. Available with different power supply options, it is easy to set up and operate.
Specifications of Micro Bench Drill
-
Brand Name: Huijiang
-
Model: TZ-895
-
Chuck Model: B12
-
Clamping Range: 1.5-10mm
-
Motor Model: 997 motor
-
Motor Voltage: DC12-24V
-
Motor Power: 400W
-
Power Supply: 360W/480W (option)
-
Drilling Stroke: 50mm
-
Lifting Stroke: 140mm
-
Drill Speed: 12V 1000 rpm / 24V 2000 rpm
-
Dimensions: 218x180x313mm
-
Weight: 2.96kg
-
Note: Do not connect directly to 220V household power supply.
Datasheet of Micro Bench Drill
Datasheet: Not available
