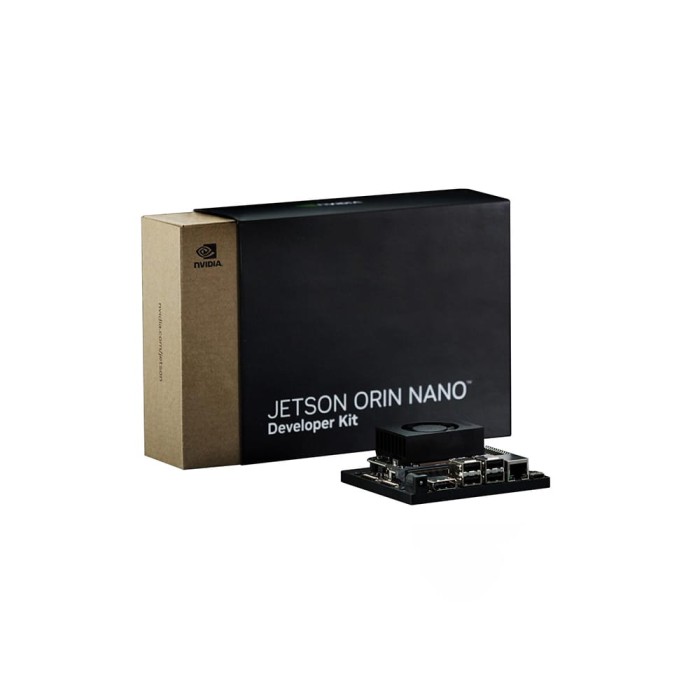

NVIDIA Jetson Orin Nano AI Developer Kit

The NVIDIA Jetson Orin Nano AI Developer Kit is a powerful and versatile platform for AI development. With its compact and energy-efficient design, this kit is perfect for creating and testing AI applications on the edge. It features the NVIDIA Orin system-on-a-chip (SoC), which delivers high performance and power efficiency for AI processing.

Equipped with the NVIDIA Jetson SDK, the Jetson Orin Nano AI Developer Kit offers a comprehensive and user-friendly development environment for building and deploying AI models. It also has a variety of interfaces and ports for easy connectivity to peripherals and sensors. With its affordable price and practical functionality, this kit is a top choice for any AI developer. Upgrade to the NVIDIA Jetson Orin Nano AI Developer Kit and unleash the power of AI at the edge.

Specification of NVIDIA Jetson Orin Nano AI Developer Kit:

• Model Number: jetson series, Jetson orin nano 4G

• Mounting Type: Screw fixed

• AI Performance: 40 TOPS

• GPU: 1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores

• GPU Max Frequency : 625 MHz

• CPU: 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU, 1.5MB L2 + 4MB L3

• CPU Max Frequency: 1.5 GHz

• Memory : 4GB 64-bit LPDDR5 34 GB/s / 8GB 128-bit LPDDR5
  68 GB/s

• Video Encode: 1080p30 supported by 1-2 CPU cores

• Video Decode:

  • 1x 4K60 (H.265)

  • 2x 4K30 (H.265)

  • 5x 1080p60 (H.265)

  • 11x 1080p30 (H.265)

• CSI Camera: 2x MIPI CSI-2 22-pin Camera Connectors

• PCIE:

  • M.2 Key M slot with x4 PCIe Gen3

  • M.2 Key M slot with x2 PCIe Gen3

  • M.2 Key E slot

• Storage: (Supports external NVMe)

• USB

  • USB Type-A Connector: 4x USB 3.2 Gen2

  • USB Type-C Connector for UFP

  • Networking: 1xGbE Connector

• Display: 1x DisplayPort 1.2 (+MST) connector

• Other IO:

  • 40-Pin Expansion Header(UART, SPI, I2S, I2C, GPIO)

  • 12-pin button header

  • 4-pin fan header

  • microSD Slot

  • DC power jack

• Camera: Up to 4 cameras

• Power: 7W - 15W

• Mechanical: 100 mm x 79 mmx 21 mm
  (Height includes feet, carrier board, module, and thermal solution)
