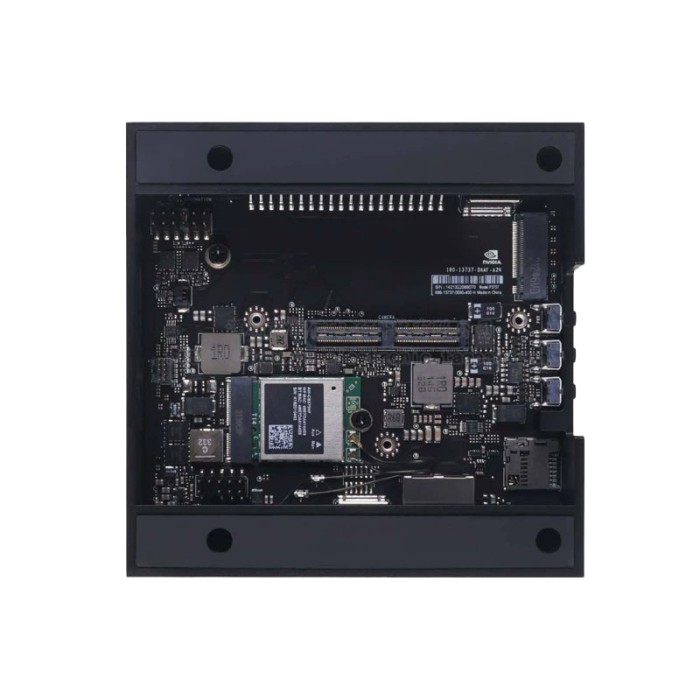

Jetson AGX Orin 64GB Development Board

The Jetson AGX Orin 64GB Development Board is a high-performance platform designed for developing and prototyping advanced AI applications, robotics, and computer vision systems. Featuring an exceptional 275 TOPS of AI performance and 64 GB of high-speed memory, it is ideal for demanding applications requiring significant computational power. The board supports a wide range of high-speed interfaces and integrates seamlessly with NVIDIA's AI software stack, accelerating development with pre-trained models and robust workflows.

Specifications of Jetson AGX Orin 64GB Development Board

• AI Performance: 275 TOPS

• GPU: 2048-core NVIDIA Ampere architecture GPU with 64 tensor cores, Max frequency: 1.3 GHz

• CPU: 12-core Arm Cortex-A78AE v8.2 64-bit CPU with 3 MB L2 + 6 MB L3 cache and 2.2GHz Max frequency

• DL Accelerator: 2xNVDLA v2

• DLA Max freauency: 1.6GHz

• Vision Accelerator: 1xPVA v2

• Memory: 64 GB 256-bit LPDDR5 with 204 GB/s bandwidth

• Storage: 64GB eMMC 5.1 , microSD slot

• Video Encode: 2x 4K60 (H.265), 4x 4K30(H.265), 8x 1080p60 (H.265), 16x 1080p30 (H.265),

• Video Decode: 1x 8K30 (H.265), 3x 4k60 (H.265), 7x 4k30 (H.265), 11x 1080p60 (H.265), 22x 1080p60 (H.265)

• CSI Camera: 16-lane MIPI CSI-2 connectors

• PCIe: x16 PCIe slot supporting x8 PCIe Gen4, M.2 Key M slot with x4 PCIe Gne4, M.2 Key E slot with x1 PCIe Gen4

• USB: USB Type-C connector: 2x USB 3.2 Gen2, USB Type-A connector: 2x USB 3.2 Gen2, 2x USB 3.2 Gen1, USB Micro-B connector: USB 2.0

• Ethernet: 1x 10 GbE connector

• Display: 1x DisplayPort 1.4 (+MST) connector

• Other IO:

  • 40-pin header (UART, SPI, I2S, I2C, CAN, PWM, DMIC, GPIO)

  • 12-pin automation header

  • 10-pin audio panel header

  • 10-pin JTAG header

  • 4-pin fan header

  • 2-pin RTC batter backup connector

  • microSD slot

  • DC power jack

  • Power, Force Recovery, and Reset buttons

• Power: 15~60 W

• Dimensions: 110mm x 110mm x 71.65mm (Height includes feet, carrier board, module, and thermal solution)
