NTC 3950 Thermistor for 3D Printers - 100K Ohm
SAVE
As low as $0.1300
In stock
Only %1 left
SKU
3DP-01-062
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
3D Printers Extruder Nozzle - Different Sizes Previous

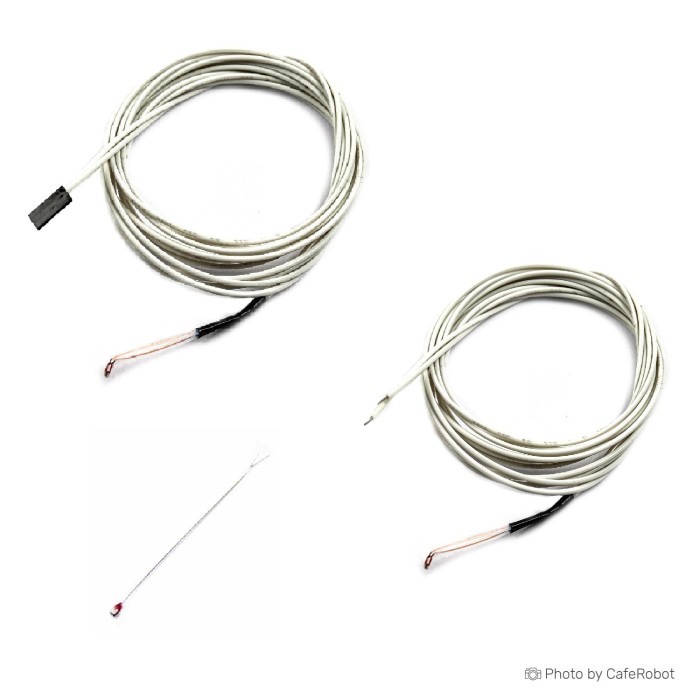

The NTC 3950 Thermistor for 3D Printers - 100K Ohm is a temperature sensor for precise temperature measurement and control in 3D printer systems. It is used for adjusting nozzle temperature and heat bed temperature. The thermistor is rated for high-temperature operation and includes a cable for installation. It is designed with a 100KΩ resistance value and a 3950 NTC type. This product is suitable for temperature monitoring tasks that require accuracy and stable resistance behavior.
Features of NTC 3950 Thermistor for 3D Printers - 100K Ohm, 100cm
- 100KΩ NTC 3950 type
- 1% accuracy
- 100cm cable length
- High-temperature Teflon insulation
- 200C and 300V wire rating
- Working temperature up to +200 C
Specifications of NTC 3950 Thermistor for 3D Printers - 100K Ohm, 100cm
- Accuracy: 100KΩ ± 1%
- Cable Length: 100cm
- Wire Diameter: 1.05MM
- Sensor Head Diameter: 1.8mm
- Wire Type: White Teflon wire
- Wire Rating: 200C and 300V
- Wire Resistance Range: 1KΩ ~ 1000KΩ
- Working Temperature: -30C ~ +200 C
How to Use NTC 3950 Thermistor for 3D Printers - 100K Ohm, 100cm
- Install the thermistor in the temperature sensing position.
- Connect the cable to the target device wiring.
- Use the sensor for temperature measurement and adjustment.
More Info
- Thermistor sensor for 3D printer temperature control.
- Includes cable for installation.
| Interface Type | Analog |
|---|---|
| Operating Temp (°C) | -30C ~ +200 C |
| Mounting Type | Wire |
| Output Type | Analog Voltage |
| Accuracy | 100KΩ ± 1% |
| Measurement Range | 1KΩ ~ 1000KΩ |
| Environmental Parameter | Temperature |
| Probe Type | Probe Style |
| Chipset | NTC 100K |
| Relay Output | No |
| Temp Accuracy | ± 1% |
