3D Printers Extruder Brass Nozzle - Different Sizes Previous

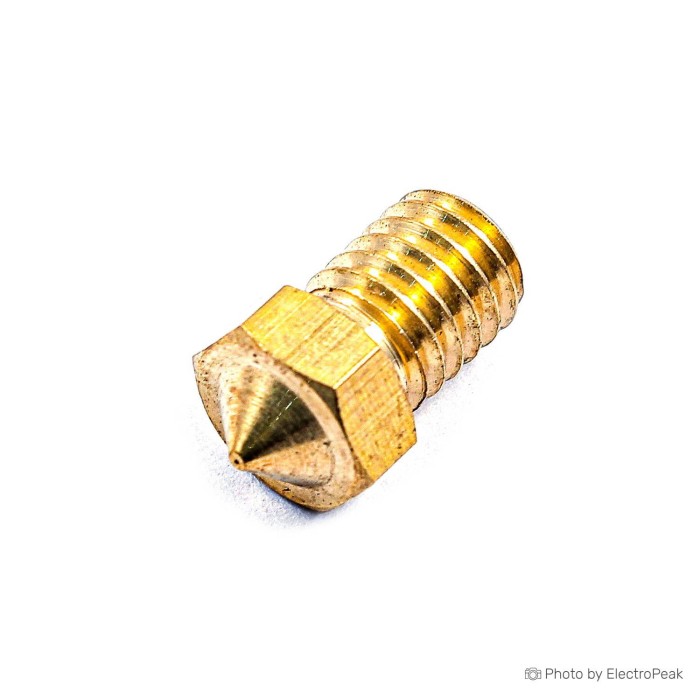

The E3D V5/V6 3D Printer Brass Nozzle is a hot end nozzle for FDM 3D printing. It is available in 0.2mm, 0.3mm, and 0.4mm output hole sizes. The nozzle is made from brass and uses an M6 screw thread. It supports 1.75mm filament feed and has a 2.0mm input hole diameter. The nozzle length is 12.5mm, and the overall size is 12x6 mm. It is suitable for PLA, ABS, and PETG filament types. The working temperature range is 180 to 260 degrees Celsius, depending on filament type. This nozzle is designed for E3D V5/V6 M6 model hot ends.
Features of E3D V5/V6 3D Printer Brass Nozzle - 0.2mm, M6
- Brass nozzle construction
- 0.2mm output hole
- 0.3mm output hole
- 0.4mm output hole
- M6 screw thread
- Supports 1.75mm filament feed
- High thermal resistance
Specifications of E3D V5/V6 3D Printer Brass Nozzle - 0.2mm, M6
- Nozzle material: Brass
- Output hole diameter: 0.2mm
- Output hole diameter: 0.3mm
- Output hole diameter: 0.4mm
- Filament feed size: 1.75mm
- Input hole diameter: 2.0mm
- Screw thread: M6
- Length: 12.5mm
- Overall size: 12x6 mm
- Compatible filament types: PLA
- Compatible filament types: ABS
- Compatible filament types: PETG
- Working temperature range: 180 to 260 degrees Celsius
- High thermal resistance: Yes
- Application: FDM 3D printers
- Model: E3D-V5 V6 M6
How to Use E3D V5/V6 3D Printer Brass Nozzle - 0.2mm, M6
- Install the nozzle on the compatible hot end model.
- Select the filament type and working temperature within the specified range.
- Start the FDM printing process and extrude the melted filament through the nozzle.
More Info
- Smaller output hole sizes support finer printing detail.
- 0.4mm is the reference nozzle size.
