Non-Invasive AC Current Sensor
SAVE
As low as $4.1000
In stock
Only %1 left
SKU
SEN-04-072
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LCD for SUI-201 DC Energy Metering Module Previous

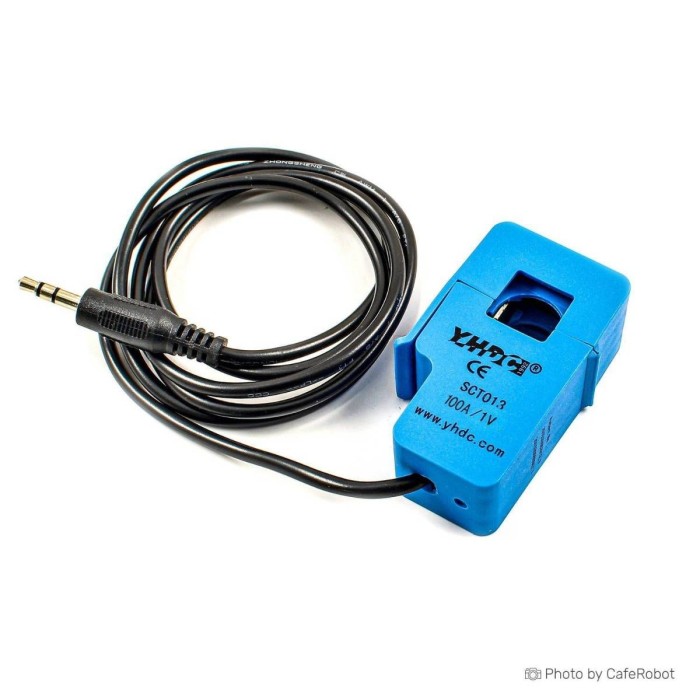

Non-Invasive AC Current Sensor is a current transformer (CT) sensor for measuring alternating current. It is suitable for energy consumption measurement in a structure. This AC current sensor provides a non-contact method for current measurement. It is designed for use with AC current monitoring and related electrical measurement tasks.
Features of Non-Invasive AC Current Sensor - 0~100A AC, DC 0~1V
- Non-invasive current measurement
- AC current sensing
- Current transformer (CT) type
- Suitable for energy consumption measurement
- Selectable input current options
Specifications of Non-Invasive AC Current Sensor - 0~100A AC, DC 0~1V
- Input current: 0~100A AC
- Input current: 5A
- Input current: 10A
- Input current: 15A
- Input current: 20A
- Input current: 25A
- Input current: 50A
- Input current: 60A
- Input current: 100A
- Output mode: DC 0~1V
- Non-linear: ±3%
- Turn ratio: 1800:1
- Resistance grade: Grade B
- Working temperature: -25°C ~ ﹢70°C
- Internal sample resistance (RL): 186Ω
- Dielectric strength (between shell and output): 1000V AC/1min 5mA
- Size: 13mm x 13mm
- Fire resistance: UL94-VO
How to Use Non-Invasive AC Current Sensor - 0~100A AC, DC 0~1V
- Select the required input current version.
- Install the sensor for AC current measurement.
- Read the DC 0~1V output signal.
More Info
- Suitable for flow measurement
- Suitable for AC motor control
- Suitable for lighting equipment
- Suitable for air compressor use
| Operating Temp (°C) | -25°C ~ +70°C |
|---|---|
| Dimensions (mm) | 13mm x 13mm |
| Output Type | Analog Voltage |
| Accuracy | ±3% |
| Current Range (A) | 5A, 10A, 15A, 20A, 25A, 50A, 60A, 100A |
| Isolation Voltage (V) | 1000V AC/1min 5mA |
| Turns Ratio | 1800:1 |
| Channels | 1-channel |
| Display Type | None |
| Parameters | Current |
