0.56" 4.5-30V DC LED Digital Voltmeter
SAVE
As low as $0.4300
In stock
Only %1 left
SKU
SEN-04-049
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Non-Invasive AC Current Sensor Previous

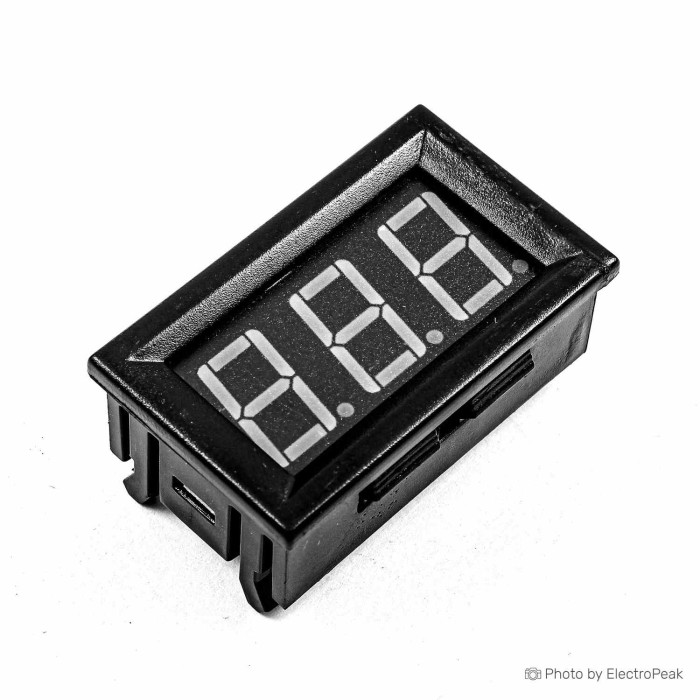

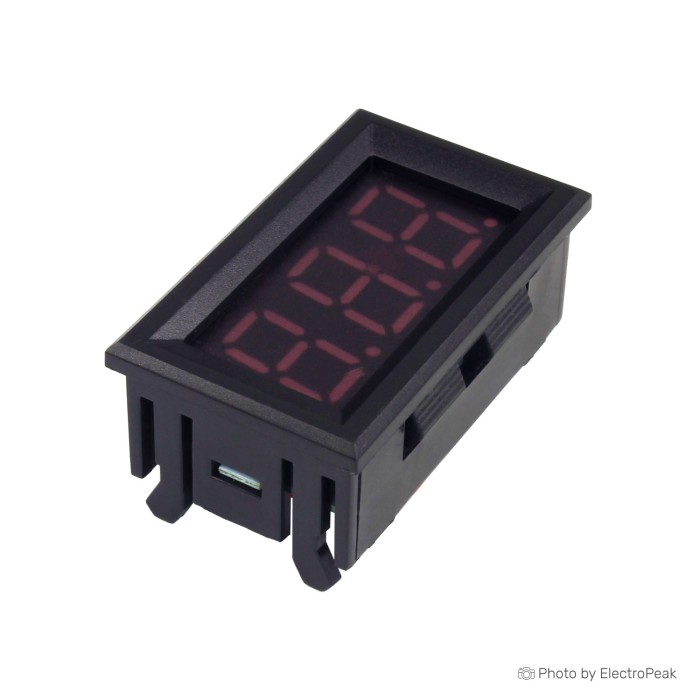

The 0.56 inch 4.5-30V DC LED Digital Voltmeter is a compact panel module for voltage measurement and display. It is designed for DC voltage monitoring with a clear three-digit LED screen. The module uses a simple two-wire connection with red and black wires. It also features automatic decimal point positioning based on the measured voltage. This voltmeter is not moisture-proof, waterproof, shockproof, or oil-proof, so careful handling is required.
Features of 0.56 Inch 4.5-30V DC LED Digital Voltmeter
- DC voltage measurement
- Three-digit LED display
- 0.56-inch display size
- Two-wire connection
- Automatic decimal point adjustment
- Compact panel design
Specifications of 0.56 Inch 4.5-30V DC LED Digital Voltmeter
- Measurement range: 4.5-30V DC
- Connection wires: Red and black
- Selectable colors: Blue, red, green
- Module dimensions: 48x29x22 mm
- Installation hole size: 46x27 mm
- Thickness: 16 mm
- Cable length: 20 cm
- Net weight: 17 g
- Gross weight: 22 g
- Display: 0.56-inch three-digit digital LED
- Current consumption: Less than 20 mA
- Typical current consumption: 5-15 mA
- Operating temperature: -10 to 65°C
How to Use 0.56 Inch 4.5-30V DC LED Digital Voltmeter
- Connect the red wire to the positive side.
- Connect the black wire to the negative side.
- Install the module in the panel opening.
More Info
- Designed for DC voltage display only.
- Not suitable for moisture-prone or wet environments.
| Operating Voltage (V) | 4.5-30V DC |
|---|---|
| Operating Current (mA) | 5-15 mA (Max < 20 mA) |
| Operating Temp (°C) | -10 to +65 °C |
| Dimensions (mm) | 48x29x22 mm |
| Mounting Type | Panel Mount |
| Voltage Range (V) | 4.5-30V DC |
| Weight (g) | 17 |
| Channels | 1-channel |
| Display Type | LED |
| Parameters | DC Voltage |
