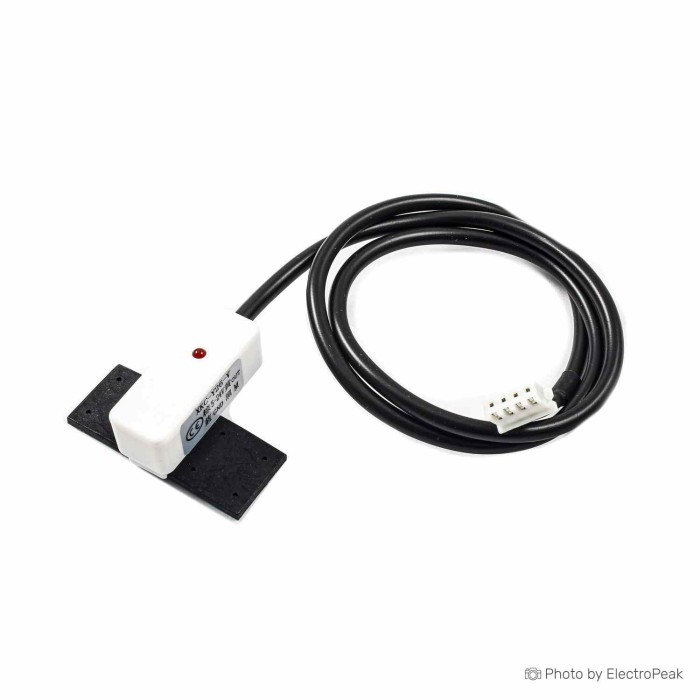

Y26-V Non-contact Water Liquid Level Sensor

The Y26-V Non-Contact Water Liquid Level Sensor is a non-contact liquid level sensor for detecting liquid levels through the outer wall of non-metallic containers. It provides digital output with a HIGH signal equal to the supply voltage and a LOW signal at 0V. The sensor includes a built-in potentiometer for sensitivity adjustment. It is designed for use with liquids such as water, acids, alcohols, and toxic liquids in high-pressure conditions. The sensor uses a red LED indicator during detection and is intended for installations where direct contact with the liquid is not desired.

Features of Y26-V Non-Contact Water Liquid Level Sensor

• Non-contact level detection
• External wall mounting
• Digital HIGH and LOW output
• Built-in sensitivity adjustment
• Red LED indication
• IP67 protection

Specifications of Y26-V Non-Contact Water Liquid Level Sensor

• Model: XKC-Y26
• Input Voltage: 5V ~ 24V
• Input Current: 5mA
• Output Type: Digital
• Output Voltage: Vin (high level), 0V (low level)
• Output Current: 1mA ~ 100mA
• Response Time: 500ms
• Applicable Pipe Diameter Range: ‰¥10mm
• Level Error: ±1.5mm
• Operating Temperature: 0°C ~ 85°C
• Operating Humidity: 5% ~ 100%
• Waterproof Protection: IP67
• Material: ABS
• Size: 34.5mm x 40mm x 15.6mm
• Output Voltage (HIGH): Equal to supply voltage
• Output Voltage (LOW): 0V
• Response Time: 500ms
• Temperature Range: 0 to 85 degrees Celsius
• Wall Thickness Detection: 0-13mm
• Body Material: ABS
• Cable Length: 45cm
• Detection Sensitivity: D ≥ 100, L: 20±2
• Detection Sensitivity: 100 ≥ 80, L: 15±2
• Detection Sensitivity: 80/100 ≥ 60, L: 12±2
• Detection Sensitivity: 60/100 ≥ 40, L: 7±1
• Detection Sensitivity: 40/100 ≥ 30, L: 5±1
• Detection Sensitivity: (100 ≥ 20, L: 3±1)30
• Detection Sensitivity: 20/100 ≥ 10, L: 1.5±0.5

How to Use Y26-V Non-Contact Water Liquid Level Sensor

1. Mount the sensor on the outside wall of a non-metallic container.
2. Adjust the sensitivity using the built-in potentiometer.
3. Observe the output signal and LED status during liquid level detection.

More Info

• Suitable for non-contact liquid level monitoring.
• Designed for non-metallic containers.
• Supports detection through container walls within the listed thickness range.
