Description
A non-contact liquid level sensor is used for detecting whether there is liquid by water induction capacitor. When there is no liquid to approach the sensor, the sensor will generate certain static capacitance because of the capacitor distribution; when the liquid rises slowly to approach the sensor the liquid parasitic capacitor will coupling to this static capacitor so the terminal capacitance of the sensor will increase.
The changing capacitance signal will be input to control IC and achieve signal switch.
Then transform the changing capacitance value into a variation of a certain electric signal.
An intelligent non-contact liquid level sensor adopts advanced signal processing technology and high-speed signal processing chip, and it will not be influenced by container wall thickness when detecting the liquid level in an airtight container. The liquid level sensor is installed under the container (high level and low level).
It does not need to bore a non-metallic container, easy to install. It can detect the liquid level of various toxic substances, acid, alkali and all kinds of liquid in a
high-pressure airtight container. It can be widely used and has no special requirement for liquid medium and material of the container.
Features

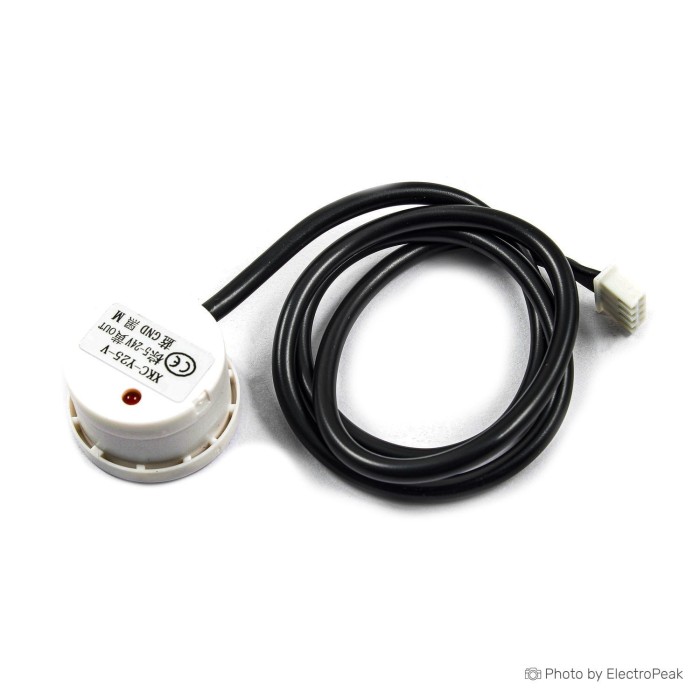

Model: XKC-Y25
Input Voltage: 5V ~ 24V
Input Current: 5mA
Output Type: Digital
Output Voltage: Vin (high level), 0V (low level)
Output Current: 1mA ~ 100mA
Response Time: 500ms
Applicable Pipe Diameter Range: ‰¥10mm
Level Error: ±1.5mm
Operating Temperature: 0°C ~ 85°C
Operating Humidity: 5% ~ 100%
Waterproof Protection Code: IP67
Material: ABS
Size: 28mm x 16.9mm (Dia x H)
