NIUP11TA NiCd/NiMH Battery Charger Module
SAVE
As low as $2.5000
In stock
Only %1 left
SKU
BAT-03-087
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Lithium Battery Charging 5V 1A Module TP4056 with Current Protection Previous

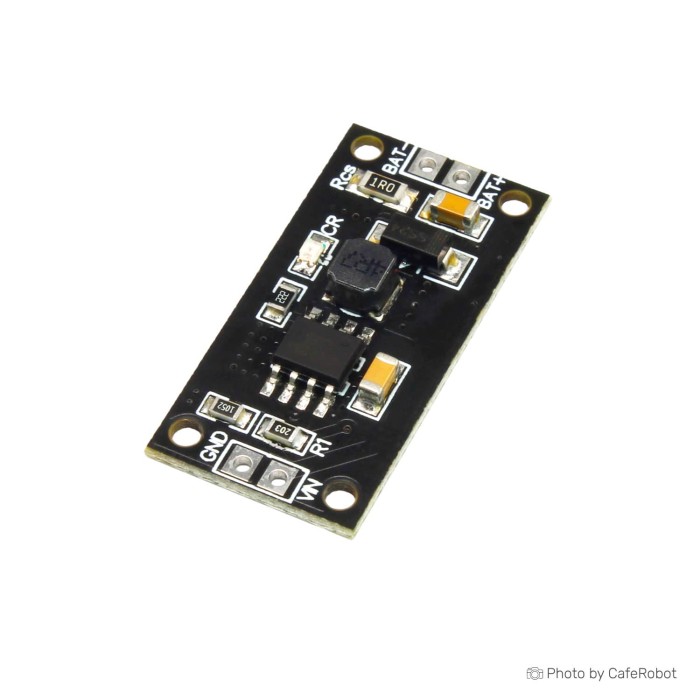

The NIUP11TA NiCd/NiMH Battery Charger Module is a compact charging module for NiCd and NiMH batteries. It supports a DC 4.5V-5.5V input, with DC 5V recommended. The charging voltage range is about 1.35V-1.7V for 1-cell batteries, 2.7V-3.4V for 2-cell batteries, and 4.05V-5.1V for 3-cell batteries. The charging current is about 230mA-240mA. Its small size and light weight make it suitable for compact electronics projects.
Features of NIUP11TA NiCd/NiMH Battery Charger Module - DC 5V
- NiCd and NiMH charging
- DC 4.5V-5.5V input
- DC 5V recommended input
- 1-cell, 2-cell, and 3-cell charging support
- 230mA-240mA charging current
- Compact module size
Specifications of NIUP11TA NiCd/NiMH Battery Charger Module - DC 5V
- Input voltage: DC 4.5V-5.5V
- Recommended input voltage: DC 5V
- Charging voltage: 1.35V-1.7V (1-Cell)
- Charging voltage: 2.7V-3.4V (2-Cell)
- Charging voltage: 4.05V-5.1V (3-Cell)
- Charging current: 230mA-240mA
- Size: 30mm ×15mm ×4mm
- Weight: 1.5g
How to Use NIUP11TA NiCd/NiMH Battery Charger Module - DC 5V
- Connect the module to a DC 4.5V-5.5V supply.
- Use DC 5V as the recommended input.
- Connect the NiCd or NiMH battery pack within the supported cell range.
More Info
- Suitable for toy cars, digital cameras, solar charging, Bluetooth applications, audio equipment, electronic dictionaries, and portable devices.
- Also listed for Nickel Metal Hydride Battery Charger and NiCd Battery Charger use.
| Compatible With | NiCd/NiMH |
|---|---|
| Chipset | NIUP11TA |
| Function | Battery Charger |
| Charging Voltage (Pack) | 1.35V-1.7V (1-Cell), 2.7V-3.4V (2-Cell), 4.05V-5.1V (3-Cell) |
| Supported Battery Type | NiCd/NiMH |
| Cell Count | 1-Cell, 2-Cell, 3-Cell |
| Input Voltage (V) | DC 4.5V-5.5V |
| Output Voltage (V) | 1.35V-5.1V |
| Output Current (A) | 230mA-240mA |
| Connector | Soldering |
| Max Charging Current | 230mA-240mA |
| Fast Charge Protocol | No |
| Dimensions (mm) | 30mm × 15mm × 4mm |
| Mounting Type | Soldering |
| Weight (g) | 1.5 |
