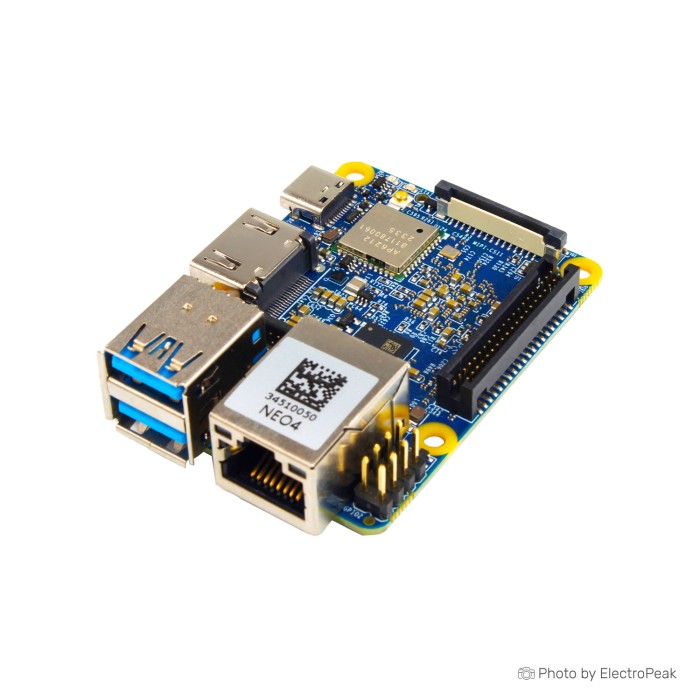

The NanoPi NEO4 is a compact yet powerful single-board computer powered by the Rockchip RK3399 processor. It features a dual-core Cortex-A72 and a quad-core Cortex-A53 CPU, along with a Mali-T864 GPU for advanced graphics performance. With support for 4K video decoding, USB 3.0, PCIe, Gigabit Ethernet, and Wi-Fi/Bluetooth, it is ideal for embedded applications, media centers, and networking projects.
Specifications of NanoPi NEO4
-
SoC: Rockchip RK3399
-
CPU: Dual-Core Cortex-A72 (up to 2.0GHz) + Quad-Core Cortex-A53 (up to 1.5GHz)
-
GPU: Mali-T864 (supports OpenGL ES1.1/2.0/3.0/3.1, OpenCL, DX11, AFBC)
-
VPU: 4K VP9 & 4K 10-bit H265/H264 60fps decoding
-
RAM: 1GB DDR3-1866
-
Storage:
-
No onboard eMMC (eMMC socket available)
-
1× MicroSD slot
-
-
Ethernet: Native Gigabit Ethernet
-
Wi-Fi/Bluetooth: 802.11 b/g/n, Bluetooth 4.0 combo module
-
Video Input: 1× 4-Lane MIPI-CSI (up to 13MP)
-
Video Output: HDMI 2.0a (supports 4K@60Hz, HDCP 1.4/2.2)
-
Audio Output: HDMI
-
USB Ports:
-
1× USB 3.0 Host (Type-A)
-
2× USB 2.0 Host (1× Type-A, 1× 2.54mm header)
-
1× USB Type-C (supports USB2.0 OTG & power input)
-
-
GPIO & Expansion:
-
GPIO1 (40-pin): 2× I2C, 1× UART/SPI, 1× SPDIF_TX, up to 8× GPIOs
-
GPIO2: 1× 1.8V 8-channel I2S
-
GPIO3: Debug UART (3V, 1500000bps), USB 2.0 x1
-
PCIe: x2
-
PWM: x1
-
RTC Battery: 2-pin 2.54mm pitch pads
-
-
LEDs: 1× Power LED, 1× GPIO-controlled LED
-
Power Supply: 5V/3A
-
PCB: 8-layer, 60mm × 45mm
-
Operating Temperature: -20℃ to 70℃
OS Support
-
Android 8.1 (requires eMMC Module)
-
Lubuntu 16.04 (32-bit)
-
FriendlyCore 18.04 (64-bit)
-
FriendlyDesktop 18.04 (64-bit)
-
FriendlyWrt 19.07.1 (64-bit)
-
FriendlyWrt 23.05
-
OpenMediaVault
-
Armbian (3rd Party)
-
Kernel Version: Linux-4.4-LTS
-
Bootloader: U-boot-2014.10
