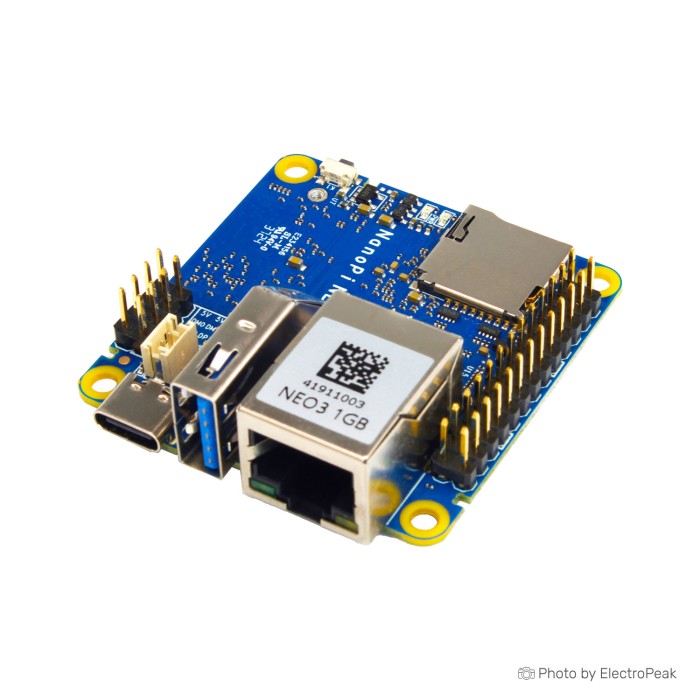

NanoPi NEO3

The NanoPi NEO3 is a compact, high-performance single-board computer powered by the RockChip RK3328 quad-core 64-bit Cortex-A53 processor. It supports up to 2GB DDR4 RAM and features Gigabit Ethernet, USB 3.0, and GPIO expansion. Designed for networking, storage, and IoT applications, it is compatible with multiple operating systems, including FriendlyWrt, OpenMediaVault, and FriendlyCore.

Specifications of NanoPi NEO3

• SoC: RockChip RK3328, Quad-core 64-bit Cortex-A53

• RAM: 1GB / 2GB DDR4

• LAN: 10/100/1000M Ethernet with unique MAC

• USB: 1× USB 3.0 Type-A, 2× USB 2.0 (2.54mm pin header)

• Storage: 1× MicroSD slot (system boot & storage)

• LEDs: 1× Power LED, 1× System LED

• Button: 1× User Button

• Fan Connector: 2-pin JST ZH 1.5mm for 5V fan

• GPIO: 26-pin header (I2C, UART, SPI, I2S, GPIO)

• Serial Debug: 3-pin header (2.54mm pitch), 1500000bps

• Power Supply: 5V/1A (via Type-C or GPIO)

• PCB Dimensions: 48 × 48mm

• Operating Temperature: -20℃ to 70℃

• Weight: 22g

OS Support

• FriendlyWrt 21.02.1 (64-bit)

• FriendlyWrt 23.05

• OpenMediaVault

• FriendlyCore Focal Lite (Based on Ubuntu 20.04)
