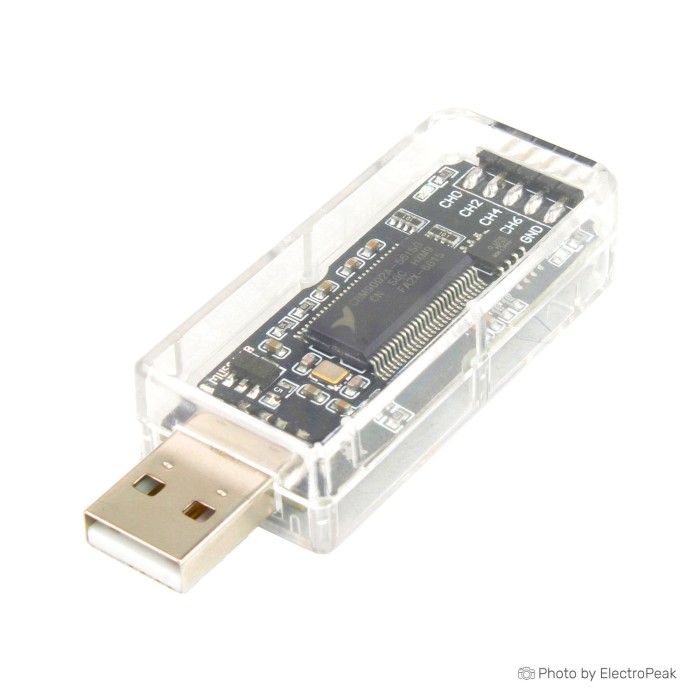

NanoDLA 24MHz 8-Channel USB Logic Analyzer
$7.5000
In stock
SKU
PRO-01-028
Volume discounts:
- +25 4 % $7.1900
- +50 6 % $7.0400
- +100 8 % $6.8900
- +300 10 % $6.7400
- +500 12 % $6.5800
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
ST-Link V2/JTAG Programmer for STM8 & STM32 Previous
NanoDLA 24MHz 8-Channel USB Logic Analyzer is a digital signal analysis tool with open source hardware, open source software, and open source host computer support. It is designed for electronic engineers and development workflows that require signal capture and protocol analysis. The device supports up to 24MHz sampling and eight channels for simultaneous acquisition. It works with PulseView and supports Windows, Linux, Mac, and Android. NanoDLA supports more than 100 protocol analyses and includes defined logic level ranges for input signals.
Features of NanoDLA 24MHz 8-Channel USB Logic Analyzer
- Open source hardware
- Open source software
- Open source host computer support
- 8-channel simultaneous sampling
- Up to 24MHz sampling rate
- Supports more than 100 protocol analyses
- Supports Windows, Linux, Mac, and Android
- Compact design
Specifications of NanoDLA 24MHz 8-Channel USB Logic Analyzer
- Software environment: PulseView
- Sampling channel: 8 channels
- Sampling frequency: up to 24MHz
- Operating system: Windows, Linux, Mac, Android
- Logic level: low level is [-0.5V, 0.8V]
- Logic level: high level is [2V, 5.25V]
- Product size: 71.5X23.6X14.2mm
- Input voltage: -0.5V to 5.25V
- Protocol analysis: more than 100 kinds
How to Use NanoDLA 24MHz 8-Channel USB Logic Analyzer
- Connect the logic analyzer to your system.
- Open PulseView on a supported platform.
- Capture signals using the 8 channels and adjust sampling as needed.
More Info
- User guide: https://github.com/wuxx/nanoDLA/blob/master/README.md
- Suitable for digital signal analysis and debugging workflows.
