MTH02 Temperature And Humidity Sensor
$3.7600
In stock
SKU
SEN-10-043
Volume discounts:
- +25 4 % $3.6200
- +100 6 % $3.5400
- +300 8 % $3.4700
- +500 10 % $3.4000
- +1000 11 % $3.3300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
MTH01 Temperature and Humidity Sensor Previous

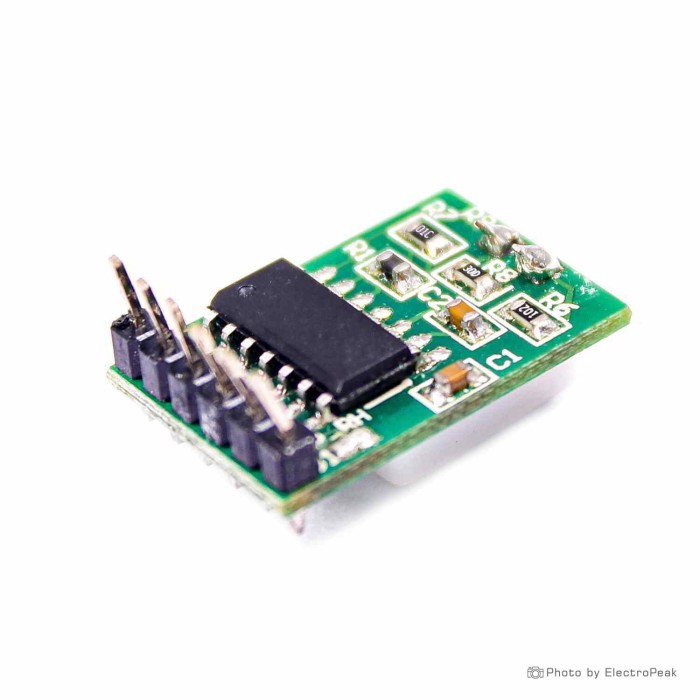

The MTH02 Temperature And Humidity Sensor Module is a digital sensor module for measuring temperature and humidity. It provides a digital output with an SPI interface and is fully calibrated. The module is precomputed, so no calculation is needed to obtain the temperature value. It also features automatic cut-off and uses a PH connector for connection.
This MTH02 Temperature And Humidity Sensor Module is designed for compact integration and long-term stable operation. It can also calculate dew point. The module is suitable for applications such as automatic control, weather stations, and humidity regulator use.
Features of MTH02 Temperature And Humidity Sensor Module - SPI
- Digital output
- SPI interface
- Fully calibrated
- Precomputed output
- Automatic cut-off
- PH connector connection
- Dew point calculation
- Small size
- Ultra-low power
- Long-term stability
Specifications of MTH02 Temperature And Humidity Sensor Module - SPI
- Temperature range: -40 °C to 70 °C
- Humidity range: 18% to 98%
- Temperature accuracy: +/- 0.5 °C
- Humidity accuracy: 3% RH
- Humidity precision: ± 3% RH (maximum of ± 5% RH)
- Power supply: 3 V to 5.5 V
- Minimum power supply: 2 V
How to Use MTH02 Temperature And Humidity Sensor Module - SPI
- Connect the module using a PH connector.
- Power the module within the specified supply range.
- Read temperature and humidity data through the SPI interface.
More Info
- The module can calculate dew point.
- The module is fully calibrated.
| Interface Type | SPI |
|---|---|
| Operating Voltage (V) | 3.3V - 5.5V |
| Operating Temp (°C) | -40 to 70 °C |
| Mounting Type | Connector |
| IP Rating | None |
| Output Type | Digital |
| Accuracy | ±0.5 °C, 3% RH |
| Measurement Range | -40 to 70 °C, 18% - 98% RH |
| Environmental Parameter | Temperature And Humidity |
| Probe Type | Temperature and humidity sensor |
| Chipset | MTH02 |
| Humidity Range | 18% - 98% |
| Relay Output | No |
| Humidity Accuracy | 3% RH |
| Protocols | SPI |
| Temp Accuracy | ±0.5 °C |
