MTH01 Temperature and Humidity Sensor
$3.7600
In stock
SKU
SEN-10-042
Volume discounts:
- +25 4 % $3.6200
- +100 6 % $3.5400
- +300 8 % $3.4700
- +500 10 % $3.4000
- +1000 11 % $3.3300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CJMCU LM75 Temperature Sensor Module - I2C Interface Previous

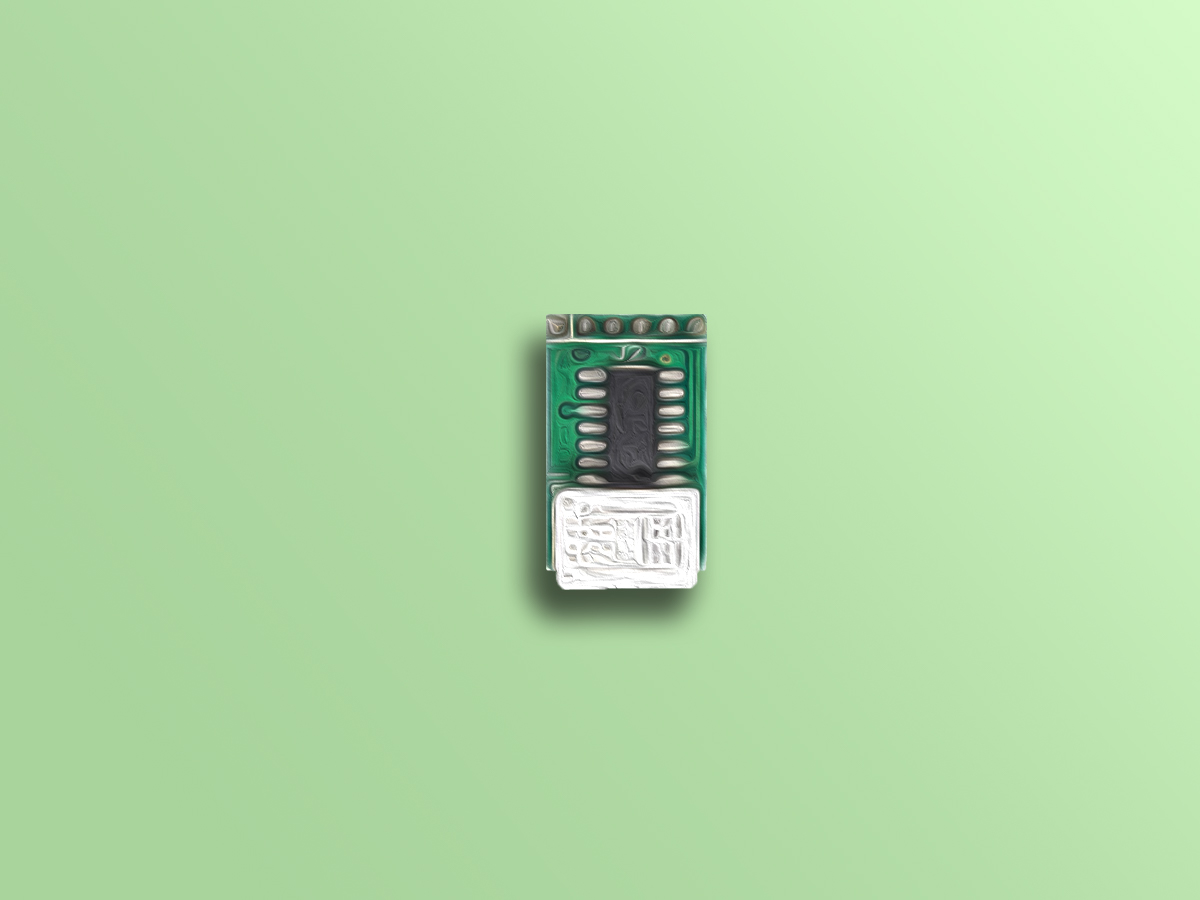

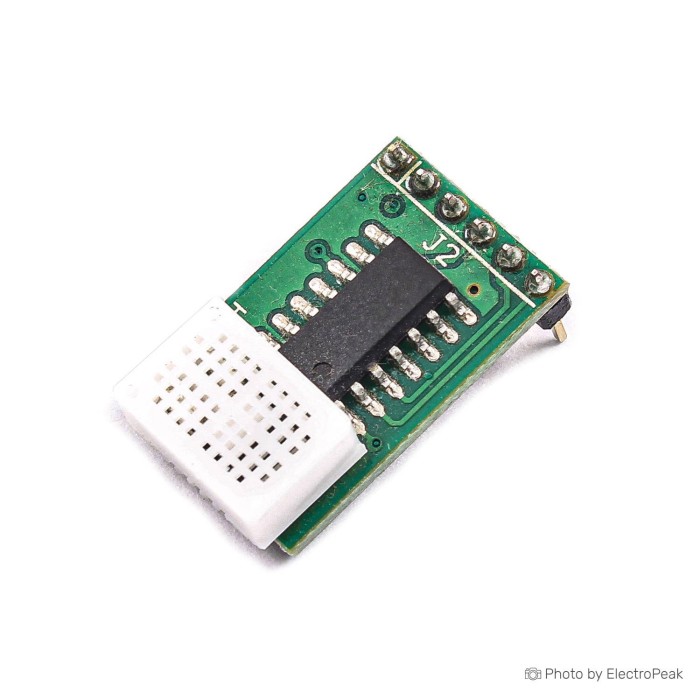

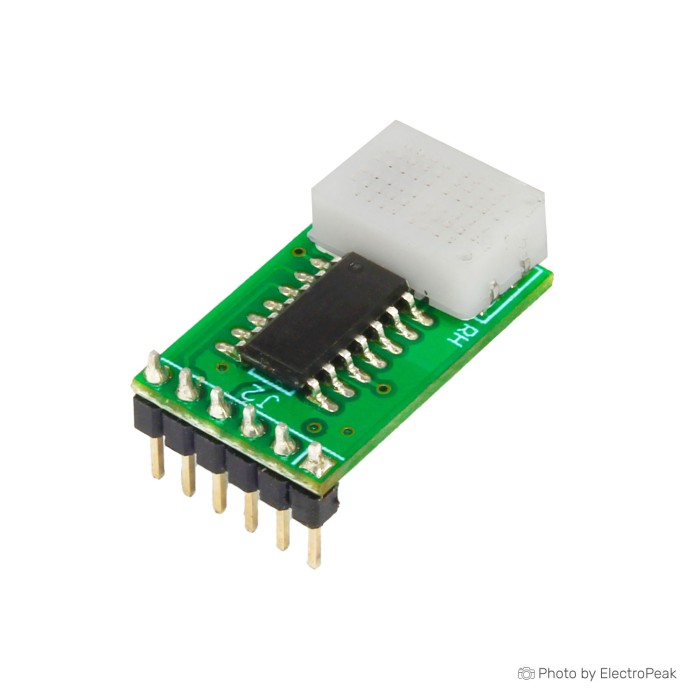

The MTH01 Temperature and Humidity Sensor Module is a digital sensor module with an SPI interface for direct temperature and humidity readout. It provides pre-calculated digital output, so no extra calculation is required. The module uses an NTC type temperature sensor and a resistor type humidity sensor. It is designed for low power operation and does not require additional components to run. It is suitable for applications that need temperature and relative humidity measurement in a compact digital module.
Features of MTH01 Temperature And Humidity Sensor Module
- SPI digital interface
- Pre-calculated digital output
- Low power consumption
- No additional components required
- NTC temperature sensor
- Resistor type humidity sensor
Specifications of MTH01 Temperature And Humidity Sensor Module
- Supply voltage: 3 V to 5.5 V
- Minimum supply voltage: 2 V
- Humidity resolution: 1%
- Temperature resolution: 0.1 degree Celsius
- Humidity non-linearity: 1-2%
- Humidity measurement range: 18-98%
- Response time: 60 seconds
- Temperature hysteresis: 1-2%
- Repeatability: 0.1 - 0.2 degree Celsius
- Temperature range: -40 to 70 degree Celsius
- Temperature accuracy: +/-0.5 to +/-1.0 degree Celsius
How to Use MTH01 Temperature And Humidity Sensor Module
- Connect the module to a 3 V to 5.5 V power supply.
- Use the SPI interface for direct temperature and humidity readout.
- Read the pre-calculated digital output.
More Info
- Digital output is fully calibrated.
- The module is compact and interchangeable.
| Interface Type | SPI |
|---|---|
| Operating Voltage (V) | 3 V to 5.5 V (min 2 V) |
| Operating Temp (°C) | -40 to 70 °C |
| Output Type | Digital |
| Accuracy | +/-0.5 to +/-1.0 °C |
| Resolution | 1%, 0.1 °C |
| Response Time | 60 s |
| Measurement Range | 18-98% |
| Environmental Parameter | Temperature And Humidity |
| Probe Type | NTC, Resistive |
| Chipset | MTH01 |
| Humidity Range | 18-98% |
| Relay Output | No |
| Humidity Accuracy | 1-2% |
| Protocols | SPI |
| Temp Accuracy | +/-0.5 to +/-1.0 °C |
