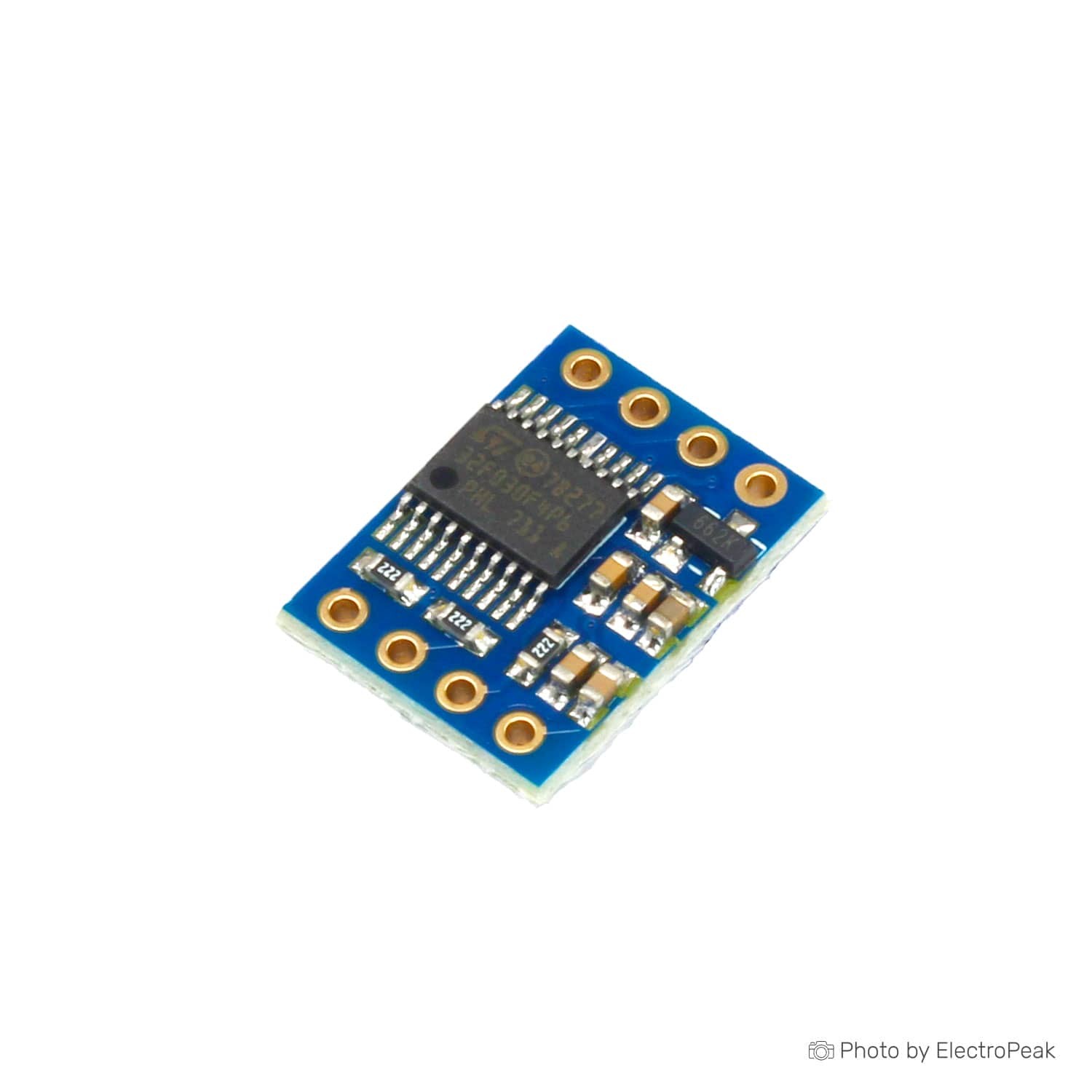

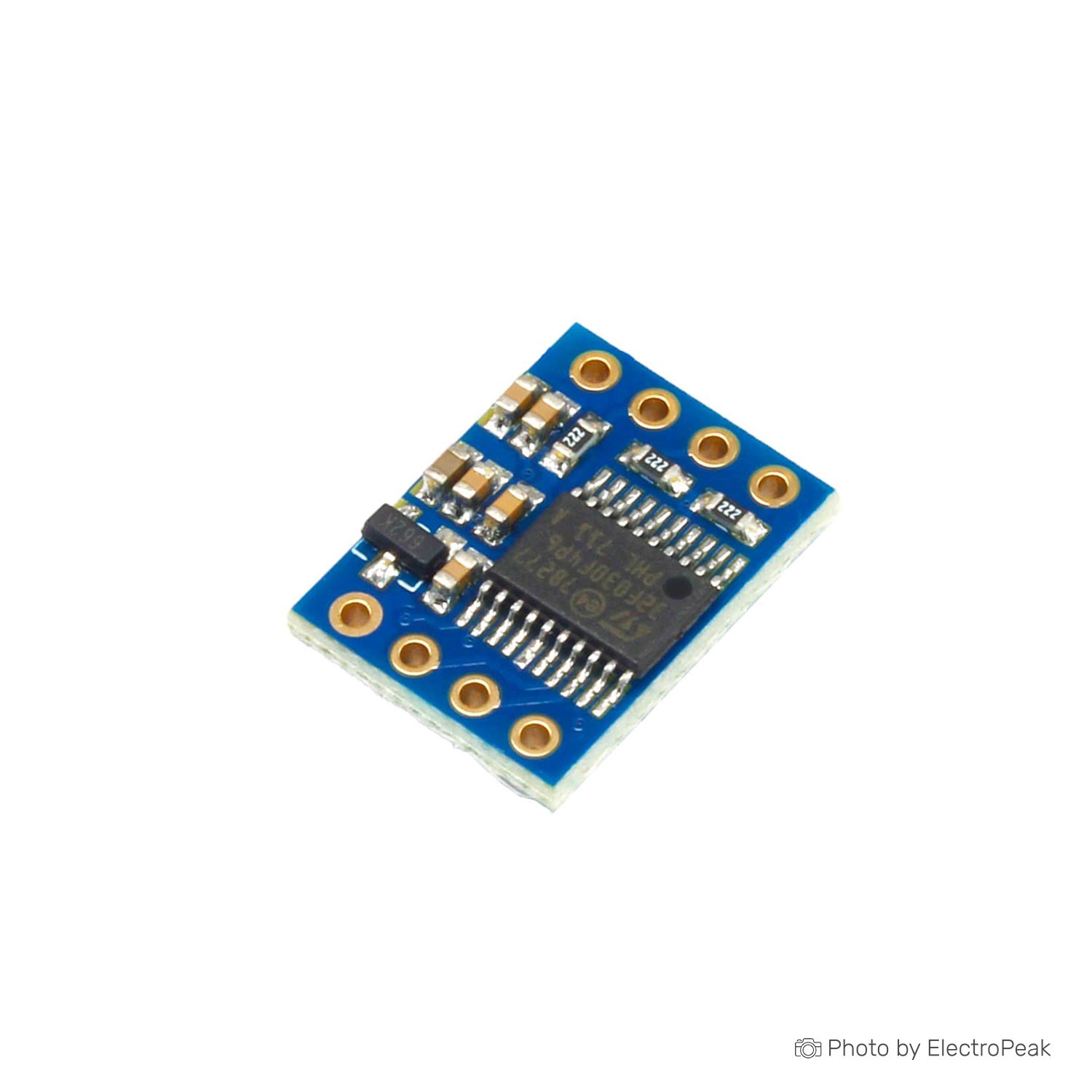

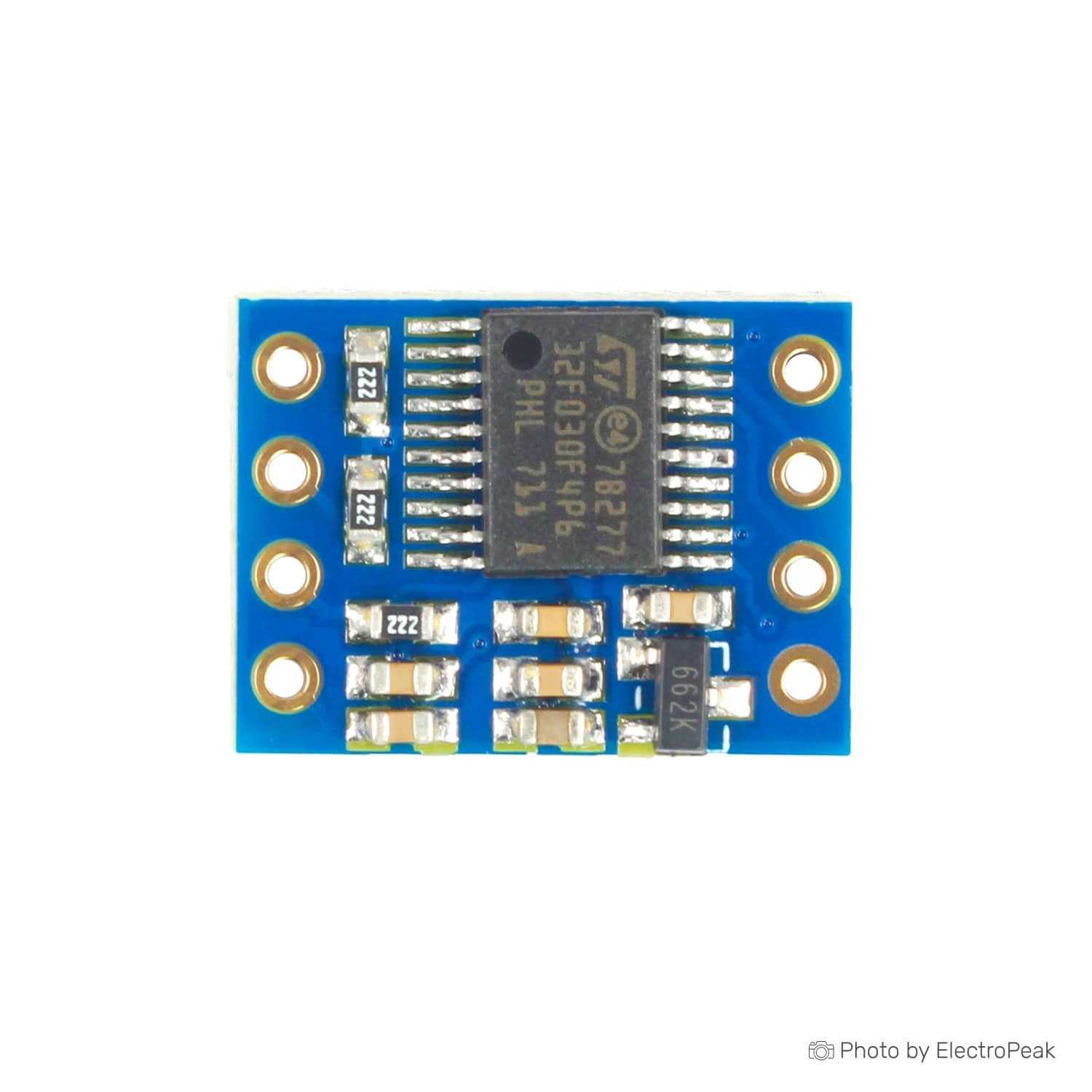

GY-25 MPU6050 3 Axis Accelerometer Gyroscope Module
- +25 4 % $4.3200
- +100 6 % $4.2300
- +300 8 % $4.1300
- +500 10 % $4.0400
- +1000 12 % $3.9500
GY-25 is a low-cost tilt module. Working voltage 3-5V, power consumption, small size.
How it works: Through gyroscope and accelerometer data fusion algorithm finally get the direct angle data.
This module, the serial port baud rate 9600bps and 115200bps, with continuous output and query output in two ways, to adapt to different working environments. Connect with all the single-chip computers and computers.
Specificatoins of GY-25 MPU6050 3 Axis Accelerometer Gyroscope Module:
- Measuring range: -180° to 180°
- Resolution: 0.01°
- Measurement accuracy: 1 ° (inclination)
- Repeatability: 1°
- Response frequency: 100HZ (115200bps)
- Working voltage: 3-5V
- Working current: 15mA
- Operating temperature: -20° Celsius ~ 85° Celsius
- Storage temperature: -40° Celsius to 125° Celsius

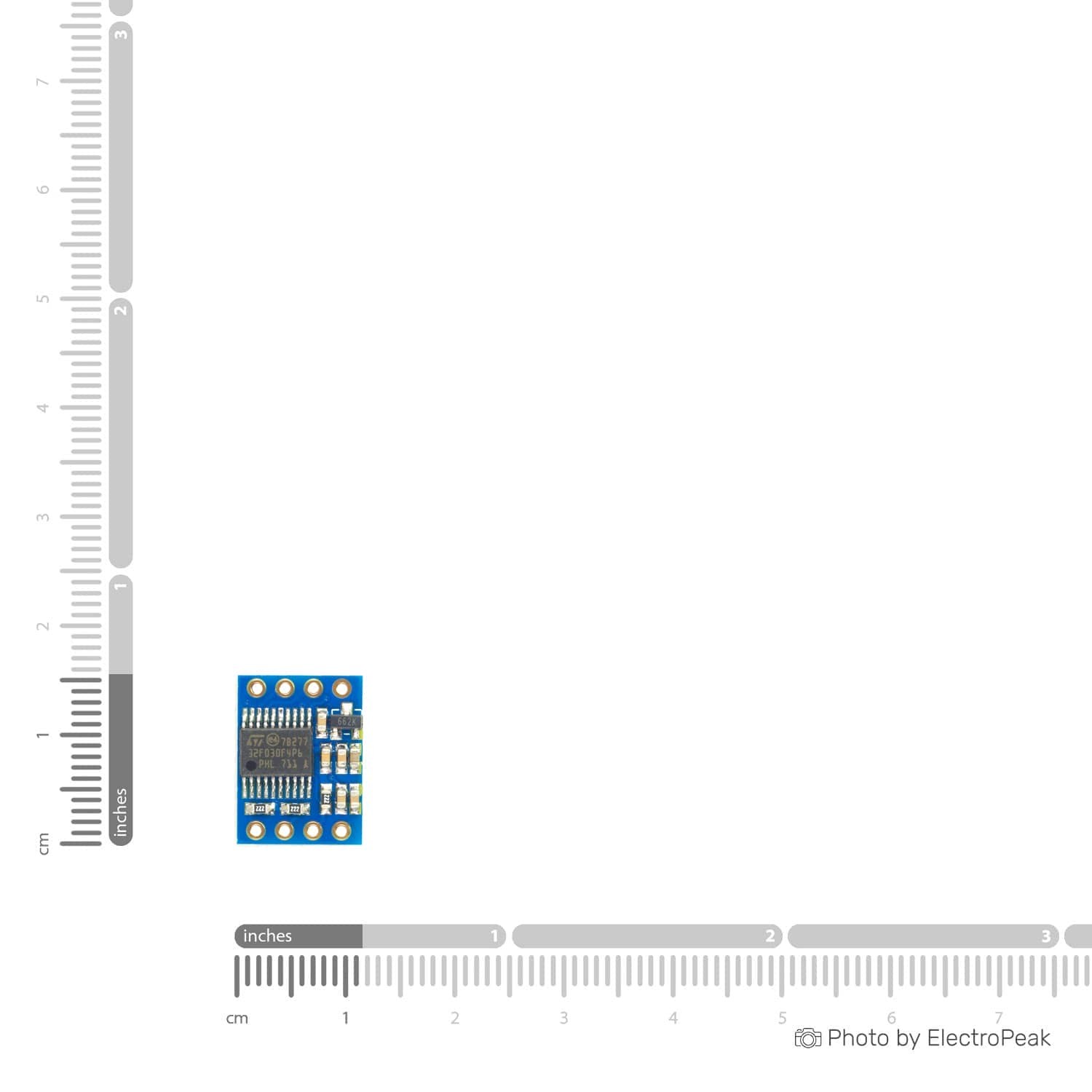

- Size: 15.5mm x 15.5mm
Features of GY-25 MPU6050 3 Axis Accelerometer Gyroscope Module:
- Small volume.
- Cost-effective.
- Serial communication format.
Extra Notes:
Applications:
Hand instrumentation
Robot navigation, positioning
Travel Model System
balance car
Pitch Positioning Antenna
Note: Note:
(1) When the module is turned on and calibrated, it is necessary to hold it for more than 3 seconds. It is not recommended to hold the module by hand.
(2) Euler angle due to universal lock problem, roll, pitch at 90 degrees will have mutual influence.

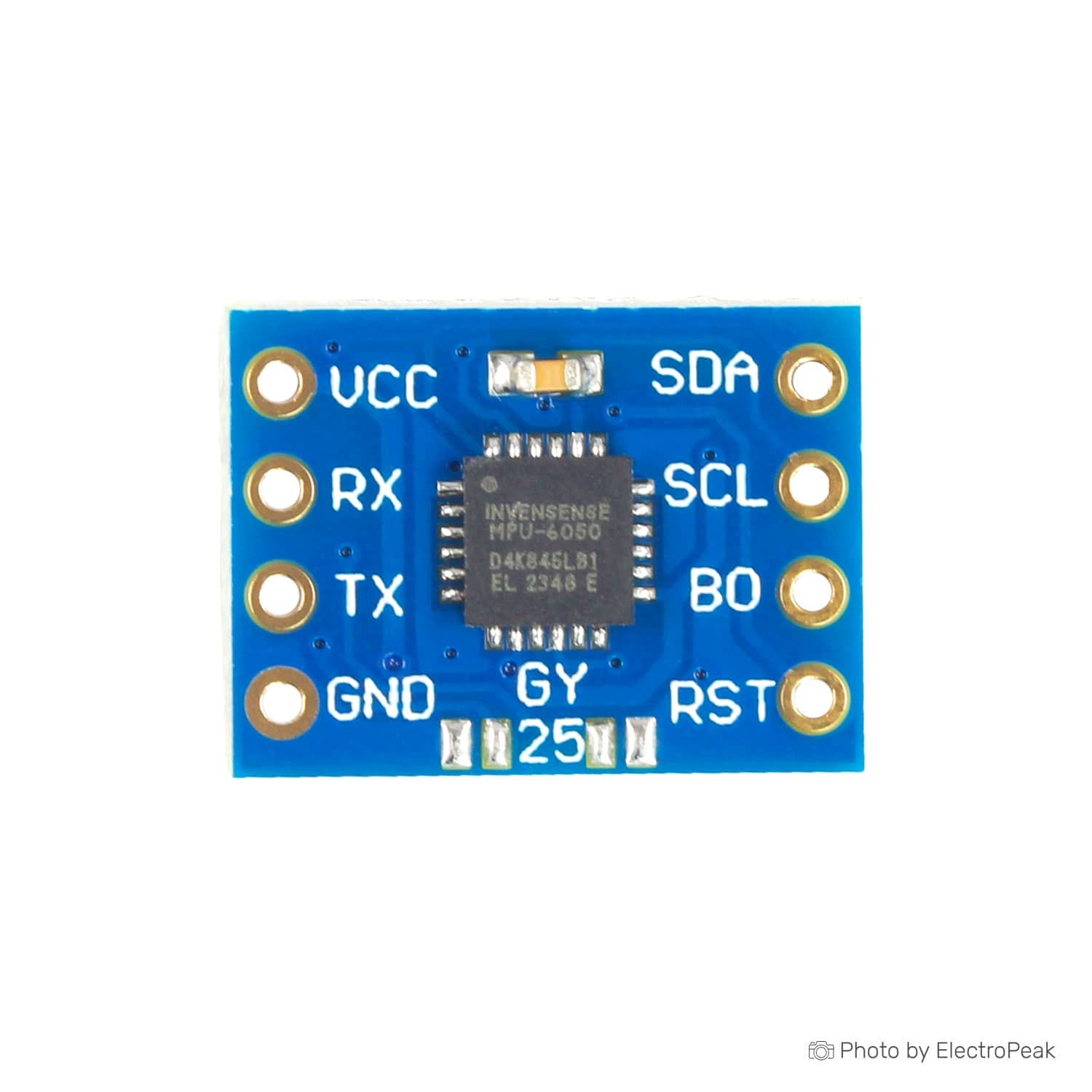

(3) The right solder pin is grounded. After restarting, the module enters IIC mode. The customer can operate the sensor by himself or herself. The mcu module does not perform any operations on the sensor.
(4) The I/O module is TTL level, it can be directly connected with the microcontroller serial port. It can be directly connected with chips such as PL2303, CH340 and FT232, but not with the computer's 9-pin serial port.
