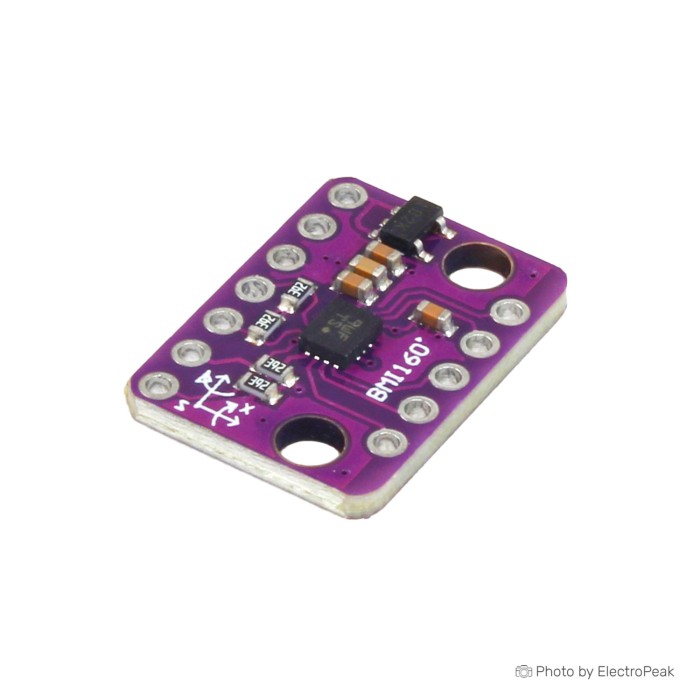

GY-BMI160 Module 6DOF 6 Axis Angular Velocity
$1.2500
In stock
SKU
SEN-02-008
Volume discounts:
- +50 4 % $1.2000
- +100 6 % $1.1800
- +300 8 % $1.1500
- +500 10 % $1.1300
- +1000 12 % $1.1000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
GY-50 L3G4200 3-Axis Digital Gyro Module Previous
GY-BMI160 Module is a 6-axis inertial measurement unit (IMU) built around the BMI160 chip. It combines a 3-axis accelerometer and a 3-axis gyroscope in one compact package. The module supports low-power operation and high-precision motion sensing. It uses a standard IIC/SPI communication protocol for integration in electronics and robotics projects. The onboard 16-bit AD converter provides 16-bit data output. This module is designed for applications that require motion and angular velocity measurement.
Features of GY-BMI160 Module
- 6-axis IMU design
- 3-axis accelerometer and 3-axis gyroscope
- BMI160 chip
- 3-5V power supply
- Internal low dropout voltage regulator
- Standard IIC/SPI communication
- 16-bit AD converter
- 16-bit data output
- Wide gyroscope range options
- Wide accelerometer range options
- Heavy gold PCB
- Machine soldering process
- 2.54mm pin spacing
- Compact module size
Specifications of GY-BMI160 Module
- Chip used: BMI160
- Power supply: 3-5V
- Internal low dropout voltage regulator
- Communication mode: Standard IIC/SPI communication protocol
- Chip built-in AD 16-bit converter
- 16-bit data output
- Gyro range: ±125, ±250, ±500, ±1000, ±2000 degrees/s
- Accelerometer range: ±2, ±4, ±8, ±16g
- Heavy gold PCB
- Machine soldering process
- Pin spacing: 2.54mm
- Module size: 13mm x 18mm
How to Use GY-BMI160 Module
- Connect the module to a compatible circuit using the 2.54mm pin spacing.
- Provide a 3-5V power supply.
- Use the IIC or SPI communication protocol for data reading.
More Info
- 3-axis accelerometer and 3-axis gyroscope in one package
- Suitable for motion and angular velocity measurement projects
| Interface Type | I2C, SPI |
|---|---|
| Operating Voltage (V) | 3-5v |
| Operating Temp (°C) | -40 to 85 |
| Dimensions (mm) | 13mm * 18mm |
| Mounting Type | THT (Through Hole) |
| Output Type | Digital |
| Resolution | 16 bit |
| Number of Axes | 6-axis (IMU) |
| Acceleration Range (g) | ±2g, ±4g, ±8g, ±16g |
| Gyro Range (dps) | ±125dps, ±250dps, ±500dps, ±1000dps, ±2000dps |
| Push Button | No |
| Sensor Type | IMU, AHRS |
| Protocols | I2C, SPI |
| Chipset | BMI160 |
