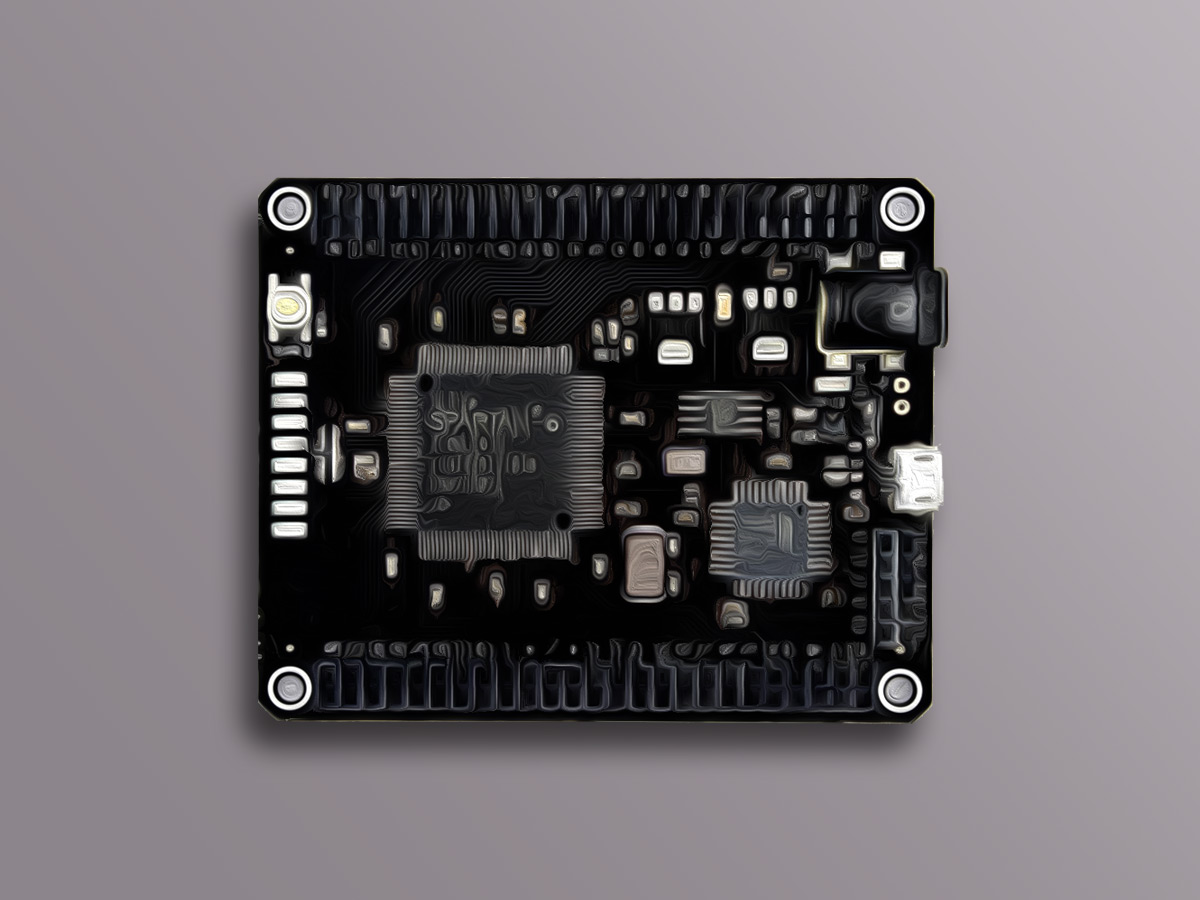

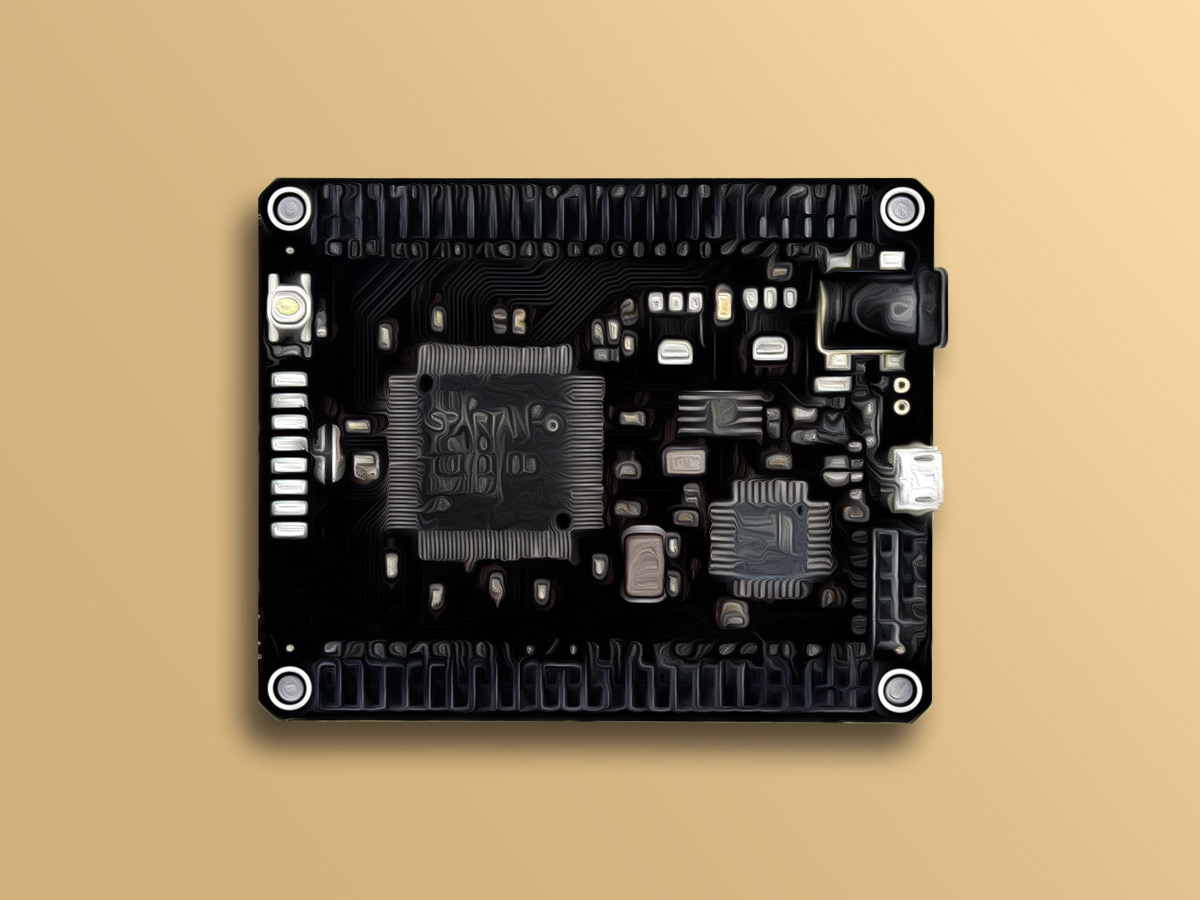

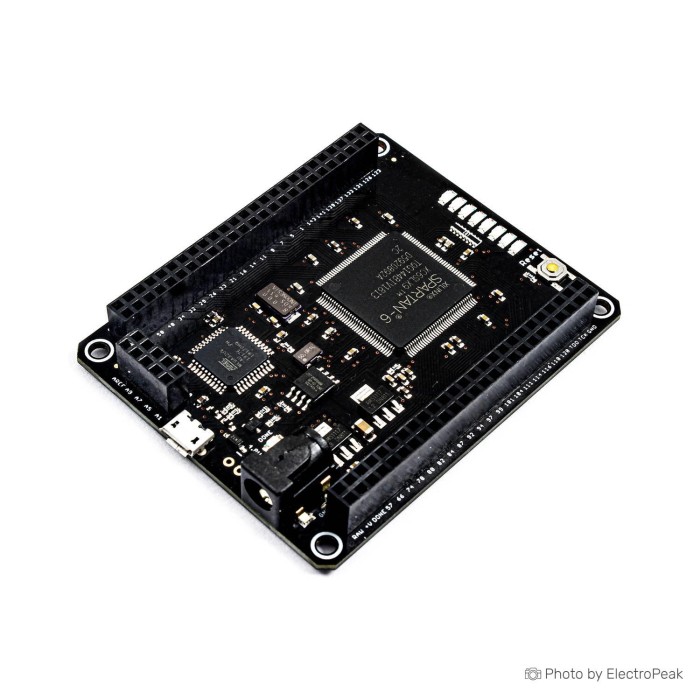

MOJO V3 - FPGA SPARTAN 6 Development Board
$109.0000
In stock
SKU
MIC-05-006
Volume discounts:
- +5 4 % $104.8800
- +10 6 % $102.8100
- +25 8 % $100.7500
- +50 9 % $98.6900
- +100 11 % $96.6300
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Xilinx FPGA Spartan6 XC6SLX9 Development Board Previous
Mojo V3 FPGA Spartan 6 Development Board combines an FPGA core with a high-performance microcontroller for digital design and FPGA configuration. It is built around the Spartan 6 XC6SLX9 FPGA and the ATmega32U4 microcontroller. The board supports USB programming without a programmer and uses onboard flash memory to store the FPGA configuration file. After power-up, the ATmega32U4 configures the FPGA from flash memory. Once configuration is complete, the FPGA designs can communicate with the microcontroller and access the serial port and analog inputs.
Features of Mojo V3 FPGA Spartan 6 Development Board
- Spartan 6 XC6SLX9 FPGA
- 84 digital IO pins
- 8 analog inputs
- 8 general-purpose LEDs
- 1 LED for FPGA configuration status
- Onboard voltage regulation
- USB programming support
- Onboard flash memory
Specifications of Mojo V3 FPGA Spartan 6 Development Board
- Spartan 6 XC6SLX9 FPGA core
- 84 digital IO pins
- 8 analog inputs
- 8 general-purpose LEDs
- 32 megabits flash memory
- 1 LED for FPGA configuration status
- Onboard voltage regulator with 4.8-12V handling
- ATmega32U4 for FPGA configuration, USB communications, and analog pin reading
- Onboard flash memory for FPGA configuration file storage
- No programmer required
- USB programming support
- Clock management: DCM, PLL
- Maximum core supply voltage: 1.26 V DC
- Minimum core supply voltage: 1.14 V DC
- FPGA family: Spartan 6
- I/O supply voltage: 3.45 V DC
- MSL: MSL 3 - 168 hours
- I/O pins: 218
- Pin count: 324
- Maximum operating frequency: 450 MHz
- RAM: 2138112 bits
How to Use Mojo V3 FPGA Spartan 6 Development Board
- Power on the board.
- Let the ATmega32U4 configure the FPGA from onboard flash memory.
- Use the FPGA, serial port, and analog inputs after configuration.
More Info
- Uses a USB (DFU) bootloader for firmware upgrades.
- Supports access to serial communication after FPGA configuration.
