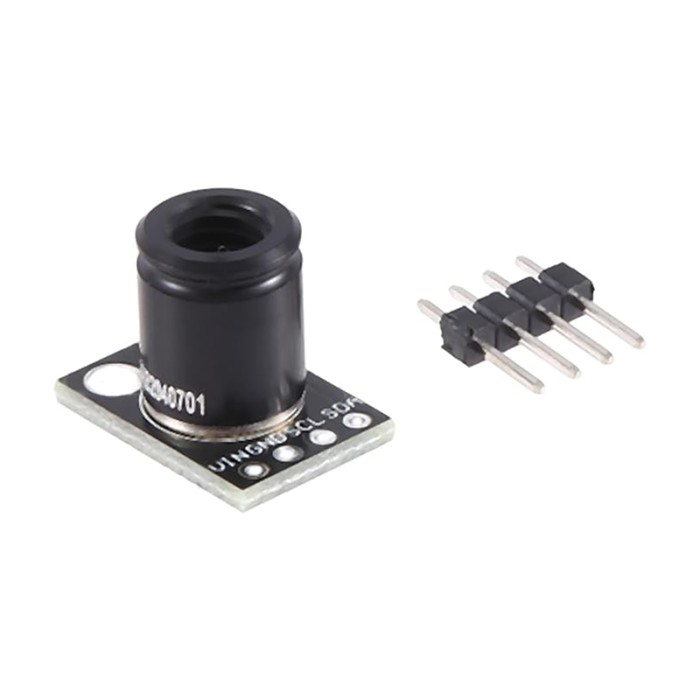

MLX90640ESF Infrared Imaging Module
$42.9500
In stock
SKU
MOD-05-001
Volume discounts:
- +10 4 % $41.2700
- +25 6 % $40.4300
- +50 8 % $39.5800
- +100 10 % $38.7400
- +300 12 % $37.9000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
OV3660 3MP 24Pin Camera Module Suitable For ESP32-CAM Previous
The MLX90640ESF Infrared Imaging Module is a compact thermal imaging module for infrared image capture and temperature measurement. It is available in BAA and BAB models, each with a different field of view. The module uses a 32×24 pixel temperature sensor array for detailed thermal data. It supports an I2C interface and a programmable frame rate. Its operating voltage range is 3.3V to 5V.
Features of MLX90640ESF Infrared Imaging Module
- 32×24 pixel thermal array
- BAA and BAB model options
- I2C interface up to 1MHz
- Programmable frame rate
- Compact module design
Specifications of MLX90640ESF Infrared Imaging Module
- Resolution: 32×24 pixel array
- Field of View: 110° × 75° for MLX90640BAA
- Field of View: 55° × 35° for MLX90640BAB
- Environmental Temperature: -40°C to 85°C
- Target Temperature Measurement Range: -40°C to 300°C
- Interface: I2C interface
- Interface Rate: up to 1MHz
- Noise Equivalent Temperature Difference (NETD): 0.1K RMS@1Hz
- Programmable Frame Rate: 0.5~64Hz
- Programmable Frame Rate: 0.25~32FPS
- Operating Voltage: 3.3V to 5V
- Dimensions: 28×16mm
How to Use MLX90640ESF Infrared Imaging Module
- Connect the module to a compatible system using the I2C interface.
- Supply power within the 3.3V to 5V operating range.
- Select the required BAA or BAB model based on the field of view.
More Info
- Available in MLX90640BAA and MLX90640BAB variants.
- Suitable for thermal cameras, temperature monitoring systems, and industrial automation.
| Interface Type | I2C |
|---|---|
| Operating Voltage (V) | 3.3V to 5V |
| Operating Current (mA) | 23mA |
| Operating Temp (°C) | -40°C to 85°C |
| Dimensions (mm) | 28×16mm |
| IP Rating | None |
| Output Type | I2C |
| Accuracy | 0.1K RMS@1Hz |
| Resolution | 32×24 pixel array |
| Measurement Range | -40°C to 300°C |
| Environmental Parameter | Temperature |
| Probe Type | Non-contact |
| Chipset | MLX90640ESF |
| Relay Output | No |
| Protocols | I2C |
| Temp Accuracy | 0.1K RMS@1Hz |
