MKS SERVO42D NEMA17 Closed Loop Stepper Motor Driver

[MTR-09-030]
Shop with confidence Learn More
Availability: In stock
SKU
MTR-09-030
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
As low as $12.25

Note: The motor is not included with the driver.

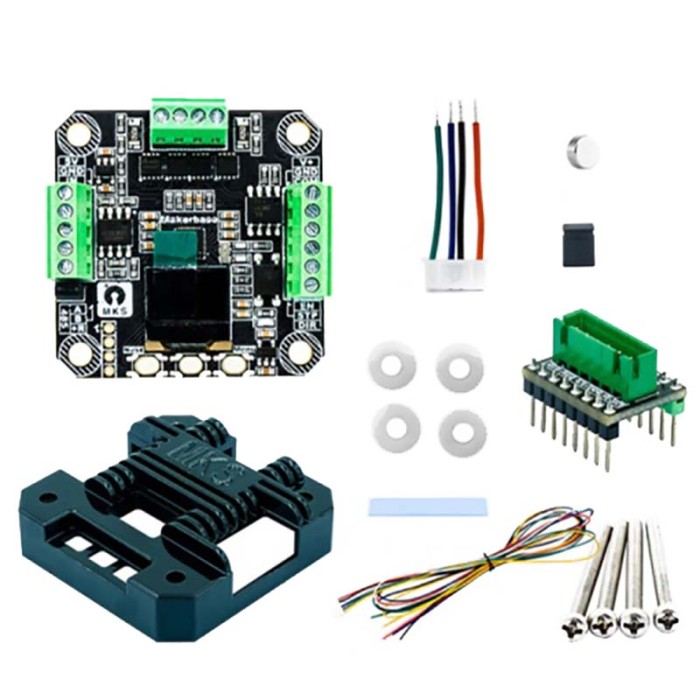

The MKS SERVO42D is a NEMA17 closed-loop stepper motor driver designed for applications requiring precision, efficiency, and quiet operation. It incorporates advanced features like RS485/CAN options, low vibration, and low noise. Ideal for CNC machines, 3D printers, and other automated equipment, this driver offers high-speed performance and accurate control.

Specifications of MKS SERVO42D NEMA17 Closed-Loop Stepper Motor Driver

  • Microprocessor: N32L403 (Cortex-M4)

  • MOSFET: AAP4008QD (40V, 20A)

  • Encoder: 14-bit magnetic encoder

  • Working Voltage: 12V-24V

  • Working Current: 0-3000mA

  • Maximum Speed: 3000 RPM+

  • Subdivision: 1-256 (default 16)

  • Pulse Signal Frequency: 160KHz

  • Pulse Signal Common: Positive

  • Update Frequency:

    • Torque: 20KHz

    • Velocity: 20KHz

    • Position: 20KHz

  • Motor Vibration: Low

  • Motor Noise: Low

  • Motor Temperature: Low

  • Communication Option: RS485/CAN

  • Dimensions: 38x38mm

Development Resources of MKS SERVO42D

Manufacturer's Product Page
