MKS OSC Stepper Controller Module
$1.9500
In stock
SKU
MTR-09-027
Volume discounts:
- +50 4 % $1.8700
- +100 6 % $1.8300
- +300 8 % $1.7900
- +500 10 % $1.7500
- +1000 12 % $1.7100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
TB6600 Stepper Motor Driver Previous

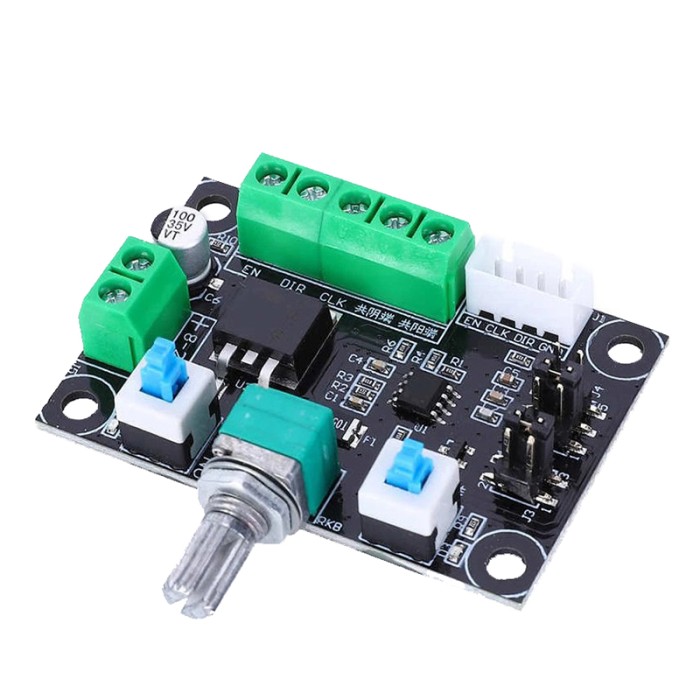

The MKS OSC Stepper Controller Module is a pulse generator for stepper motor drivers. It provides selectable frequency ranges and a jumper-selectable signal type for flexible control setup. The module supports direction control and operates across an 8V-24V voltage range. It is designed for use with a stepper motor, driver, and DC power supply. Compact sizing makes it suitable for straightforward integration.
Features of MKS OSC Stepper Controller Module
- Pulse generator for stepper drivers
- Three selectable frequency ranges
- PWM/pulse signal selection
- Clockwise/counterclockwise direction control
- 8V-24V operating voltage
- Compact module size
Specifications of MKS OSC Stepper Controller Module
- Frequency Range: High 5.4kHz to 160kHz
- Frequency Range: Medium 540Hz to 16.6kHz
- Frequency Range: Low 80Hz to 2.4kHz
- Signal Type: PWM/Pulse (jumper selectable)
- Direction Control: Clockwise/Counterclockwise (CW/CWW)
- Voltage: 8V-24V
- Size: 58 x 38.6mm
How to Use MKS OSC Stepper Controller Module
- Supply the module with 8V-24V power.
- Select the signal type and frequency range with the jumpers.
- Connect PUL, DIR, and EN to the stepper driver.
- Set the DIR terminals for clockwise or counterclockwise motion.
- Test the motor operation after wiring.
More Info
- Compatible setup includes a stepper motor, driver, and DC power supply.
- The module uses jumper settings for flexible signal configuration.
