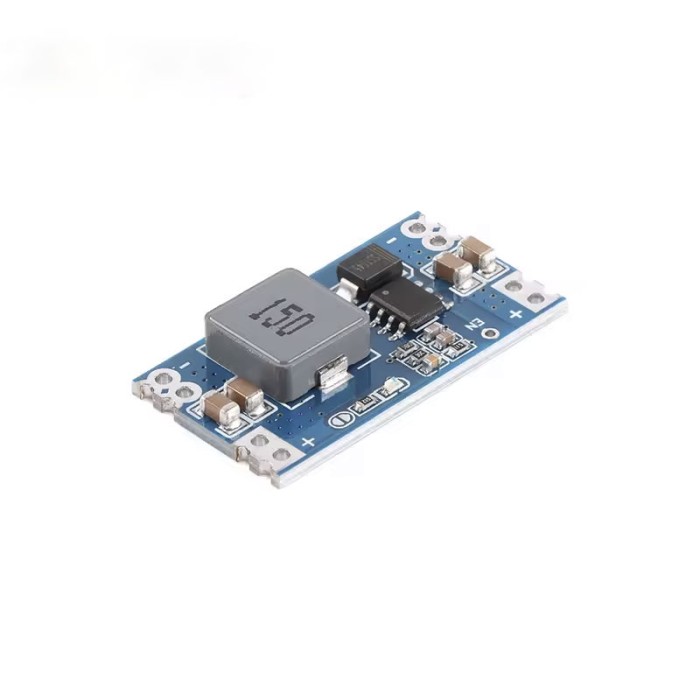

Mini560 pro DC-DC Step-Down Regulator Power Supply Module- 5A

The Mini560 Pro DC-DC Step-Down Regulator Power Supply Module is a compact and efficient voltage regulator that converts higher DC input voltages into stable lower outputs. With multiple fixed output options (3.3V, 5V, 9V, 12V) and up to 95% efficiency, it’s perfect for powering electronics, microcontrollers, and embedded systems. It supports up to 5A peak output current with excellent thermal performance.

Specifications of Mini560 Pro DC-DC Step-Down Regulator Power Supply Module - 5A

• Input Voltage: 5.5V–32V (minimum difference 2V)
• Output Voltage: 3.3V / 5V / 9V / 12V
• Maximum Output Current: 5A (continuous 3A with heat dissipation)
• Conversion Efficiency: Up to 95%
• Switching Frequency: 500KHz
• Operation Temperature: -40°C to +80°C
• Type: Non-isolated buck, synchronous rectification
• Control Pin: EN pin (HIGH = operation, LOW = shutdown)
• Dimensions: 33x18x5.4mm

Datasheet of Mini560 Pro DC-DC Step-Down Regulator Power Supply Module - 5A

Datasheet: Not available.
