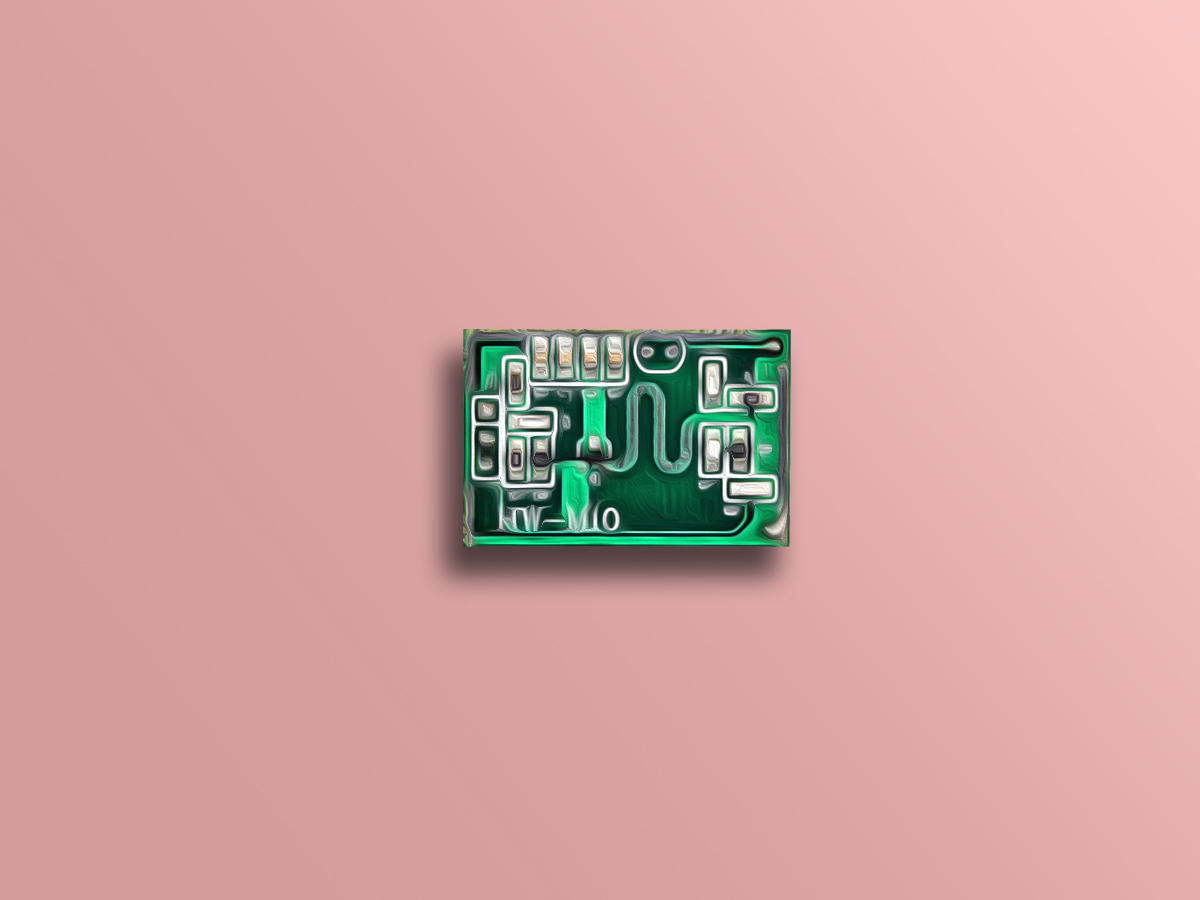

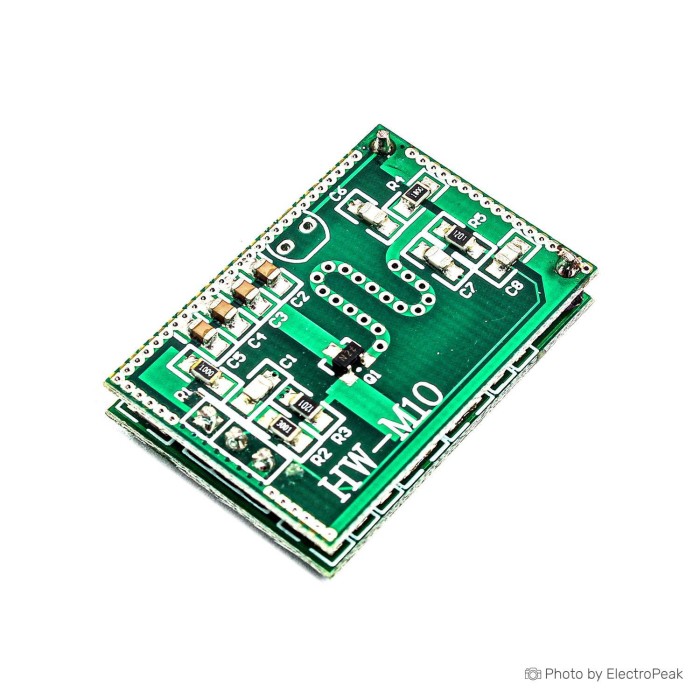

HW-M10-A Microwave Motion Detection Sensor
$1.9700
In stock
SKU
SEN-24-002
Volume discounts:
- +50 4 % $1.8900
- +100 6 % $1.8500
- +300 8 % $1.8100
- +500 10 % $1.7800
- +1000 12 % $1.7400
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
HB100 Microwave Doppler Radar Sensor Module Previous
HW-M10-A Microwave Motion Detection Sensor is a Doppler radar motion detection module designed for sensing movement by transmitting and receiving high-frequency electromagnetic waves. It operates at 10.525GHz and detects changes in echo signals caused by movement. The module supports motion detection through wood, glass, and plastic. It is suitable for automated lighting, anti-theft alarms, smart projects, and other electronics applications.
Features of HW-M10-A Microwave Motion Detection Sensor - 10.525GHz
- Doppler radar detection
- 10.525GHz operating frequency
- Motion detection through obstacles
- High-sensitivity sensing
- Compact module design
Specifications of HW-M10-A Microwave Motion Detection Sensor - 10.525GHz
- Model: HW-M10
- Input Voltage: 6V ~ 24V
- Input Voltage: DC 6V-22V
- Suggested Voltage: 12V
- Current: <3mA
- Static Current: less than 1mA
- Frequency: 10.525GHz
- Output Voltage: 0V (Low), 5V(High)
- Output Level: High V / Low 0V
- Output Type: Digital
- Trigger Type: Repeat Trigger
- Default Delay Time: 30s
- Delay Time: 3s to 200s
- Detection Distance: 10m
- Detection Distance: 1 to 30m
- Detection Angle: 360°
- Detection Angle: 180x360 degrees
- Pin Number: 3 Pins
- Operating Temperature: -20°C ~ +70°C
- Size: 30mm x 20mm x 7mm
- Dimensions: 30x20x6 mm
- Power Transmit and Receive: less than 2mW
How to Use HW-M10-A Microwave Motion Detection Sensor - 10.525GHz
- Connect the module to a compatible power supply within the listed input voltage range.
- Use the output signal for motion-triggered control in your electronics project.
- Adjust timing and placement as needed for the target application.
More Info
- Uses microwave radar sensing technology.
- Designed for automatic lighting and security-related projects.
| Operating Voltage (V) | 6V-22V |
|---|---|
| Operating Current (mA) | 1 |
| Dimensions (mm) | 30x20x6 mm |
| Output Type | Digital |
| Measurement Range | 1 to 30 meters |
| Sensor Type | Microwave Motion Detector |
| Measurement Principle | Doppler radar |
| Supply Current | mA |
| Chipset | HW-M10 |
| Detection Angle (°) | 180x360 degrees |
