LX9300 Happy Birthday Song Music Voice Module
$0.1100
In stock
SKU
SEN-17-137
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
CM108 USB Drive Free External Sound Card Module Previous

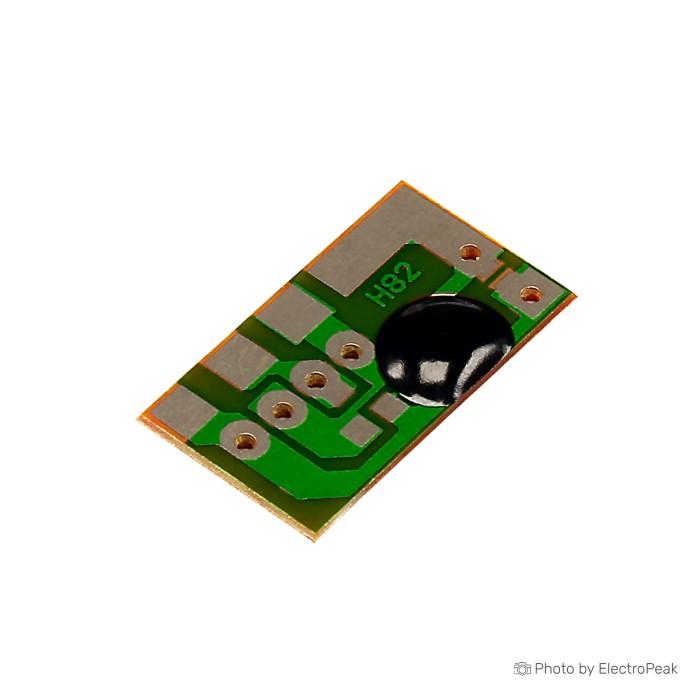

The LX9300 Happy Birthday Song Music Voice Module is a compact music voice module for audio playback applications. It operates within a 2.5V-4.5V range and uses a small PCB board layout. The module is designed with a static working current of only a few µA. It is suitable for builds that need a simple birthday song playback module. The LX9300 music voice module also includes basic wiring and speaker connection guidance.
Features of LX9300 Happy Birthday Song Music Voice Module
- Compact PCB board
- Low static working current
- 2.5V-4.5V operation
- Happy birthday song playback
Specifications of LX9300 Happy Birthday Song Music Voice Module
- Voltage: 2.5V-4.5V
- PCB board dimensions: 20mm*11mm
- Module static working current: only a few µA
How to Use LX9300 Happy Birthday Song Music Voice Module
- Connect the red wire of the battery box to positive and the black wire to negative.
- Connect a regular 4 ohm 0.25W, 0.5W, or passive buzzer.
- Use an NPN-type transistor such as S8050 or S9013.
More Info
- The speaker does not require positive and negative polarity distinction.
- Suitable for simple music voice module wiring.
| Operating Voltage (V) | 2.5V-4.5V |
|---|---|
| Operating Current (mA) | only a few µA |
| Dimensions (mm) | 20mm*11mm |
| Audio Function | Audio Player |
| Output Power | 0.25W, 0.5W |
| Speaker Impedance (Ω) | 4Ω |
| Bluetooth Ver. | No |
| Channels | 1-channel |
| Chipset | LX9300 |
