لینوکس برد Luckfox Pico Pro/Max RV1106
$16.9500
In stock
SKU
DEV-06-007
Volume discounts:
- +25 4 % $16.2900
- +50 6 % $15.9500
- +100 8 % $15.6200
- +300 10 % $15.2900
- +500 12 % $14.9600
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LuckFox Pico Plus RV1103 Linux Micro Development Board Previous

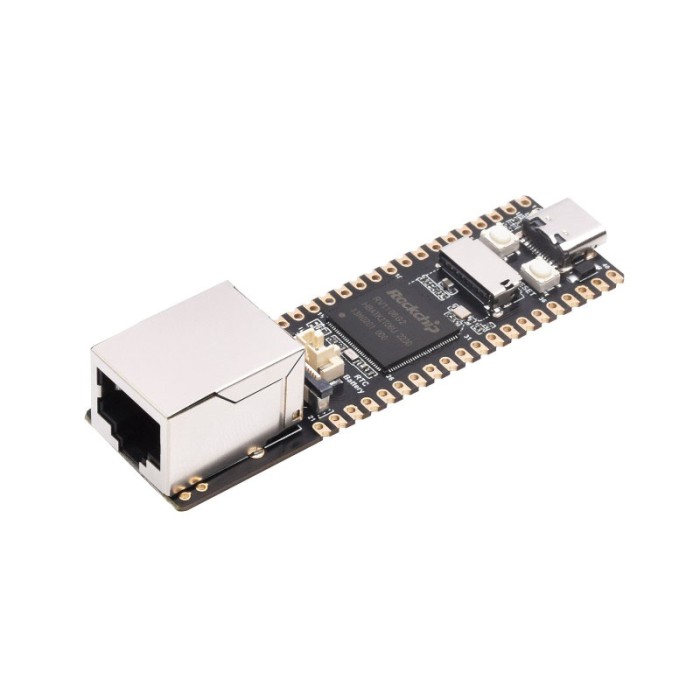

The Luckfox Pico Pro/Max RV1106 Linux Micro Development Board is designed for AI, IoT, and edge computing applications. Powered by a Cortex A7 processor running at 1.2GHz, it includes a 0.5 TOPS Neural Processing Unit (NPU) that supports int4, int8, and int16 computations. The board comes in two memory configurations: Pro with 128MB DDR2 and Max with 256MB DDR2. It supports input resolutions of up to 5M @30fps via the MIPI CSI interface and includes 26 GPIO pins for diverse connectivity. It is compact and ideal for AI-based camera applications, industrial automation, and IoT projects.
Specifications of Luckfox Pico Pro/Max RV1106 Linux Micro Development Board
-
Processor: Cortex A7 @ 1.2GHz
-
Neural Network Processor (NPU): 0.5 TOPS, supports int4, int8, and int16
-
ISP: Input 5M @30fps (Max)
-
Memory: Pro: 128MB DDR2 / Max: 256MB DDR2
-
USB: USB 2.0 Host/Device
-
Camera Interface: MIPI CSI 2-lane
-
GPIO: 26 × GPIO pins
-
Ethernet Port: 10/100M Ethernet controller and embedded PHY
-
Default Storage: SPI NAND FLASH (256MB)
-
Dimensions: 72x12mm
Manufacture of Luckfox Pico Pro/Max RV1106 Linux Micro Development Board
| Processor (SoC) | Rockchip RV1106 |
|---|---|
| CPU | Cortex A7 @ 1.2GHz |
| Architecture | ARM Cortex-A7 |
| RAM | 256MB |
| RAM Type | LPDDR2 SDRAM |
| Storage Support | SPI NAND FLASH |
| Storage Capacity | 256MB |
| GPU/VPU | No |
| NPU (TOPS) | 0.5 TOPS |
| Ethernet | 100 Mbps |
| Wi-Fi | No |
| Bluetooth | No |
| USB Ports | USB 2.0 Host/Device |
| Video Output | No |
| Hardware Interfaces | CSI (Camera) |
| GPIO Pins | 26 |
| Camera/Display | CSI (Camera) |
| Power Input | 5V via USB-C |
| PCIe | No |
| Dimensions (mm) | 72x12mm |
| OS Support | Linux, Ubuntu |
