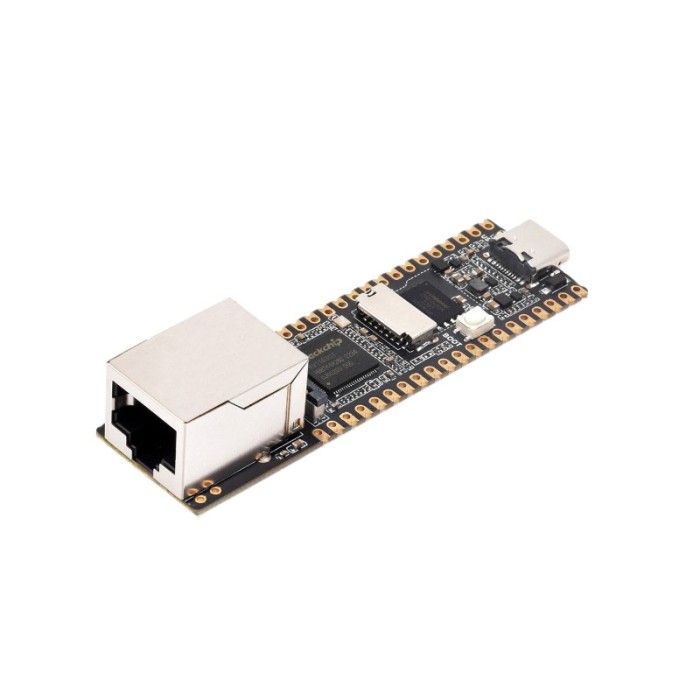

LuckFox Pico Plus RV1103 Linux Micro Development Board
$14.9500
In stock
SKU
DEV-06-008
Volume discounts:
- +25 4 % $14.3400
- +50 6 % $14.0300
- +100 8 % $13.7200
- +300 10 % $13.4200
- +500 12 % $13.1100
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Luckfox Pico Mini RV1103 Linux Micro Development Board Previous
The LuckFox Pico Plus RV1103 Linux Micro Development Board is a powerful and compact edge AI board designed for various embedded applications. Featuring a dual-core Cortex A7 1.2GHz processor with an integrated RISC-V core, it includes a 0.5 TOPS Neural Processing Unit (NPU) that supports int4, int8, and int16 computations. With 64MB DDR2 memory, it can handle input of up to 4M @30fps for camera applications via the MIPI CSI interface. It also features 25 GPIO pins and a 10/100M Ethernet controller for robust connectivity. This board is ideal for AI, vision, and IoT projects.
Specifications of LuckFox Pico Plus RV1103 Linux Micro Development Board
-
Processor: Cortex A7 @ 1.2GHz + RISC-V
-
Neural Network Processor (NPU): 0.5 TOPS, supports int4, int8, and int16
-
ISP: Input 4M @30fps (Max)
-
Memory: 64MB DDR2
-
USB: USB 2.0 Host/Device
-
Camera Interface: MIPI CSI 2-lane
-
GPIO: 25 × GPIO pins
-
Ethernet Port: 10/100M Ethernet controller and embedded PHY
-
Default Storage: SPI NAND FLASH (128MB)
-
Dimensions: 72x21mm
Manufacture of LuckFox Pico Plus RV1103 Linux Micro Development Board
| Processor (SoC) | Cortex A7 @ 1.2GHz + RISC-V |
|---|---|
| CPU | Single-core ARM Cortex-A7 @ 1.2GHz |
| Architecture | ARM Cortex-A7 |
| RAM | 64MB DDR2 |
| RAM Type | DDR2 |
| Storage Support | microSD |
| Storage Capacity | 128MB |
| NPU (TOPS) | 0.5 TOPS |
| Ethernet | 100 Mbps |
| Wi-Fi | No |
| Bluetooth | No |
| USB Ports | USB 2.0 Host/Device |
| Video Output | No |
| Hardware Interfaces | CSI (Camera) |
| GPIO Pins | 25 |
| Camera/Display | CSI (Camera) |
| Power Input | 5V via USB-C |
| PCIe | No |
| Dimensions (mm) | 72x21mm |
| OS Support | Linux |
