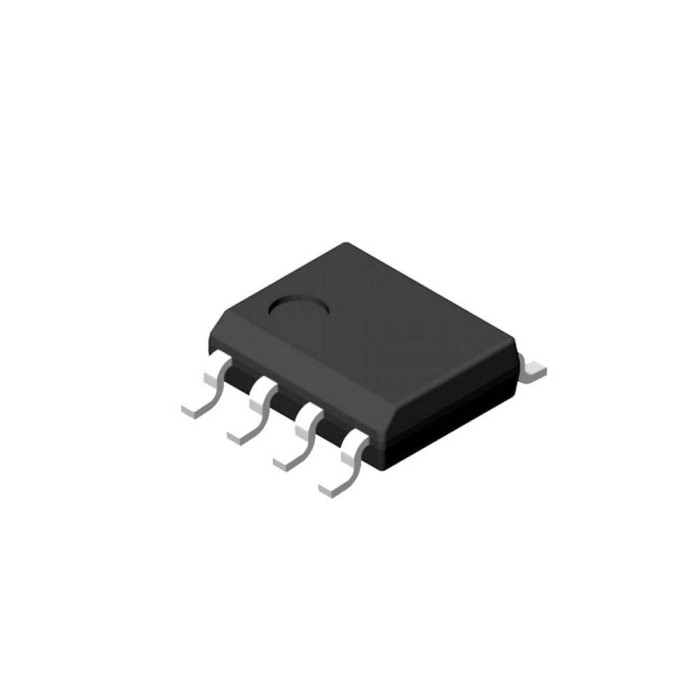

LM75A SOP-8 Digital Temperature Sensor
$0.3600
In stock
SKU
SEN-10-068
Volume discounts:
- +100 3 % $0.3500
- +500 6 % $0.3400
- +1000 8 % $0.3300
- +10000 11 % $0.3200
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The LM75A SOP-8 Digital Temperature Sensor is a digital temperature sensor with a delta-sigma analog-to-digital converter and a digital over-temperature detector. It provides digital temperature readings and supports I2C communication through SDA and SCL pins. The LM75A can also function as a thermal switch for over-temperature monitoring. It is designed for system integration and automation where temperature detection and alert signaling are required.
Features of LM75A SOP-8 Digital Temperature Sensor
- Digital temperature measurement
- Delta-sigma ADC
- Digital over-temperature detector
- I2C communication
- Thermal switch function
Specifications of LM75A SOP-8 Digital Temperature Sensor
- Operating voltage: 3.3V to 5V
- Current consumption: 250µA
- Maximum current consumption: 1mA
- Temperature range: -55°C to +125°C
- Measurement accuracy: 0.5°C
- Communication protocol: I2C
- Pins: 8 pins
- SDA pin
- SCL pin
- Temperature limit setting: 75°C
- Temperature limit setting: 80°C
- Vcc: 2.7..5.5V
- Accuracy: ±2°C from -25°C to 100°C
- Accuracy: ±3°C over -55°C to 125°C
- Package: SOP-8
How to Use LM75A SOP-8 Digital Temperature Sensor
- Connect the sensor to the I2C lines using SDA and SCL.
- Apply power within the specified voltage range.
- Read temperature data or use the thermal switch output for monitoring.
More Info
- Used as a temperature sensor and thermal watchdog with two-wire interface.
- Provides low-level output when temperature exceeds preset limits.
