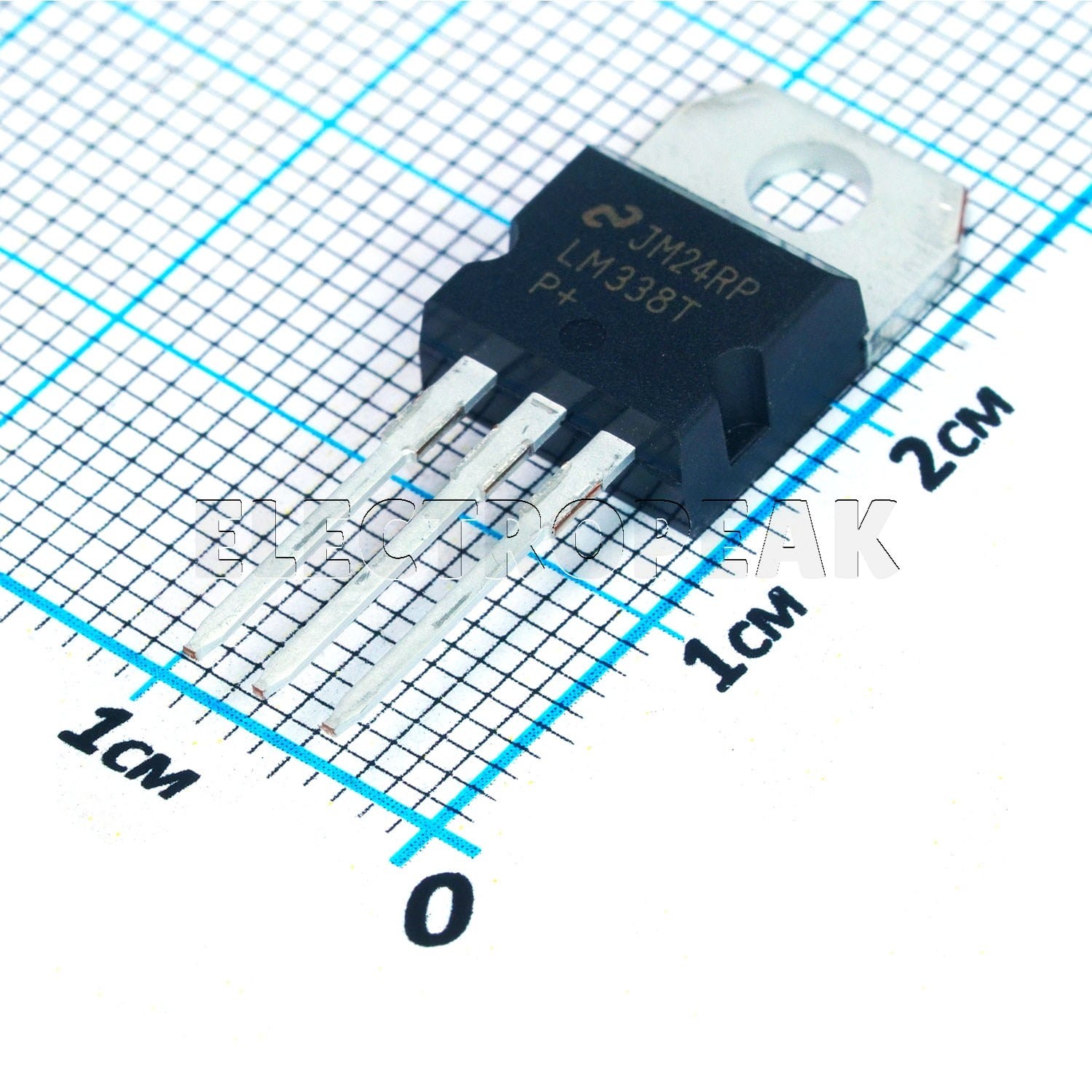

LM338T, Linear Voltage Regulator, TO-220AB
$0.2900
In stock
SKU
S1-0071
Volume discounts:
- +100 3 % $0.2800
- +500 7 % $0.2700
- +5000 10 % $0.2600
LM338T, Linear Voltage Regulator, TO-220AB is available to buy in increments of 10
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
SPX3819M5-L-3-3/TR, LDO Voltage Regulator, SOT-23-5 Previous
LM338T Linear Voltage Regulator is an adjustable three-terminal positive voltage regulator in a TO-220AB package. It supplies more than 5 amperes over an output voltage range of 1.2V to 32V. The device is designed for simple adjustment using only two external resistors. It provides line regulation and load regulation for stable output performance. Thermal overload protection and current limiting are included for protection under abnormal operating conditions.
Features of LM338T Linear Voltage Regulator
- Adjustable positive output
- Three-terminal regulator
- Two external resistors required
- Thermal overload protection
- Current limiting protection
Specifications of LM338T Linear Voltage Regulator
- Input Voltage: Up to 40V
- Output Voltage: Adjustable from 1.2V to 32V
- Output Current: More than 5A
- Line Regulation: 0.005% at input voltage from 3V to 40V
- Load Regulation: 0.1% at output current from 10mA to 5A
- Package: TO-220AB
- Operating Temperature Range: 0°C to 125°C
How to Use LM338T Linear Voltage Regulator
- Connect the LM338T in the TO-220AB package to the circuit.
- Use two external resistors to set the output voltage.
More Info
- Adjustable linear voltage regulator IC
- Positive voltage regulator type
| Package | TO-220AB |
|---|---|
| Packaging | Tube |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +125 C° |
| Polarity | Positive Type |
| Mounting Type | Through Hole |
| Components - Type | Linear Voltage Regulators |
