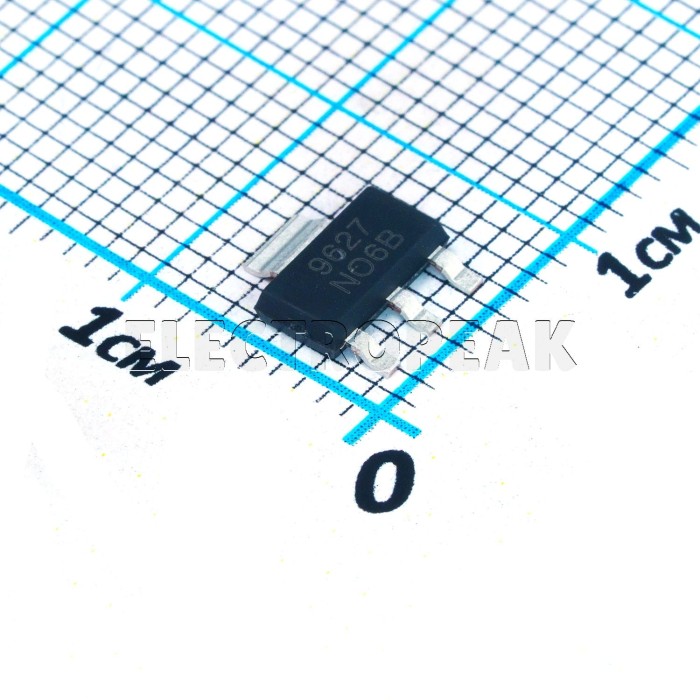

LM1117 5.0V, LDO Voltage Regulator, SOT-223-3
$0.0660
In stock
SKU
S1-0072
Volume discounts:
- +100 5 % $0.0630
- +500 6 % $0.0620
- +1000 8 % $0.0610
- +5000 9 % $0.0600
- +10000 12 % $0.0580
LM1117 5.0V, LDO Voltage Regulator, SOT-223-3 is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
LM338T, Linear Voltage Regulator, TO-220AB Previous
The LM1117 5.0V LDO voltage regulator provides a fixed 5.0V output for electronic circuits and power supply regulation. It delivers up to 800mA of output current and operates with a 1.2V dropout voltage at 800mA load current. The LM1117 includes overcurrent protection and overtemperature protection for added circuit safety. Its SOT-223-3 package supports compact regulator designs. Line regulation and load regulation are specified for stable output performance.
Features of LM1117 5.0V LDO Voltage Regulator
- Fixed 5.0V output
- Up to 800mA output current
- 1.2V dropout voltage
- Overcurrent protection
- Overtemperature protection
- SOT-223-3 package
Specifications of LM1117 5.0V LDO Voltage Regulator
- Input Voltage: Up to 20V
- Output Voltage: Fixed 5.0V
- Output Current: Up to 800mA
- Dropout Voltage: 1.2V at 800mA load current
- Package: SOT-223-3
- Line Regulation: 0.2% (maximum)
- Load Regulation: 0.4% (maximum)
- Overcurrent Protection
- Overtemperature Protection
How to Use LM1117 5.0V LDO Voltage Regulator
- Provide an input voltage within the specified range.
- Connect the regulator in the required circuit configuration.
- Use the fixed 5.0V output for the load.
More Info
- Low dropout linear voltage regulator
- Suitable for voltage regulation in electronic circuits
| Package | SOT-223-3 |
|---|---|
| Mounting Type | SMD/SMT |
| Components - Type | LDO Voltage Regulators |
