$1.50

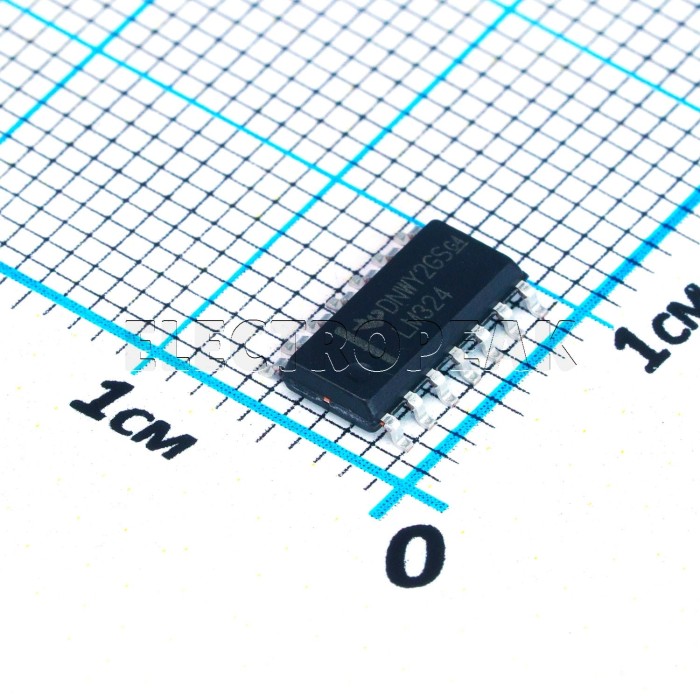

The LM324DT is a quad operational amplifier (Op-Amp) featuring true differential inputs, housed in an SO-14 package. Due to its low power consumption and wide supply voltage range, it is utilized in various applications, including analog signal amplification and active filters.
Specifications of LM324DT Op-Amp IC
- Number of Amplifiers: 4
- Slew Rate: 0.4 V/µs
- Gain Bandwidth Product: 1.3 MHz
- Input Bias Current: 20 nA
- Input Offset Voltage: 2 mV
- Supply Current: 1.5 mA
- Output Current per Channel: 40 mA
- Supply Voltage Range: 3V to 30V
- Operating Temperature: 0°C to 70°C
These features make the LM324DT suitable for applications such as general-purpose amplifiers, active filters, and analog integrated circuits.
Datasheet of LM324DT Op-Amp IC
For detailed technical information, refer to the LM324DT Datasheet.
| Package | SO-14 |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | 0 C° |
| Operating Temperature Max | +70 C° |
| Gain Bandwidth Product fT | 1.3 MHz |
| Mounting Type | SMD/SMT |
| Components - Type | Operational Amplifiers - Op Amps |
