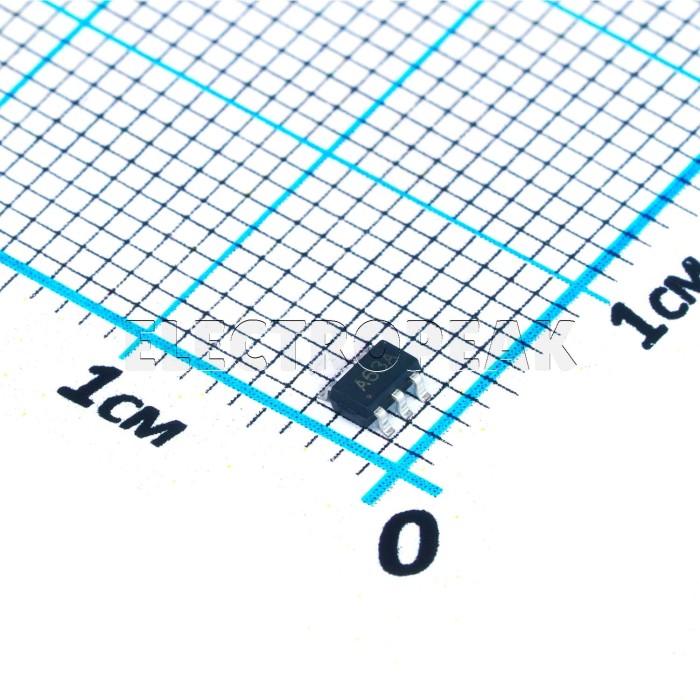

LM321MF, 1 MHz Op Amp, SOT-23-5 (SC-74A)
$0.0180
In stock
SKU
S1-0031
Volume discounts:
- +500 6 % $0.0170
- +5000 11 % $0.0160
LM321MF, 1 MHz Op Amp, SOT-23-5 (SC-74A) is available to buy in increments of 50
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
The LM321MF is a low-power, single-channel operational amplifier housed in an SOT-23-5 (SC-74A) package. It operates with a dual supply voltage ranging from 3V to 32V and features a bandwidth of 1 MHz and a slew rate of 0.4 V/µs. These characteristics make it suitable for general-purpose applications such as signal amplification, active filters, and signal processing.
Specifications of LM321MF Operational Amplifier IC SOT-23-5
- Operating Voltage: 3V to 32V
- Operating Current: Maximum 430 µA
- Bandwidth (GBW): 1 MHz
- Slew Rate: 0.4 V/µs
- Input Offset Voltage: Maximum 7 mV
- Input Bias Current: Maximum 45 nA
- Dimensions: 2.90 mm × 1.60 mm
- Packege: SOT-23-5
| Package | SOT-23-5 (SC-74A) |
|---|---|
| Packaging | Tape & Reel |
| Operating Temperature Min | -40 C° |
| Operating Temperature Max | +85 C° |
| Gain Bandwidth Product fT | 1 MHz |
| Mounting Type | SMD/SMT |
| Components - Type | Operational Amplifiers - Op Amps |
