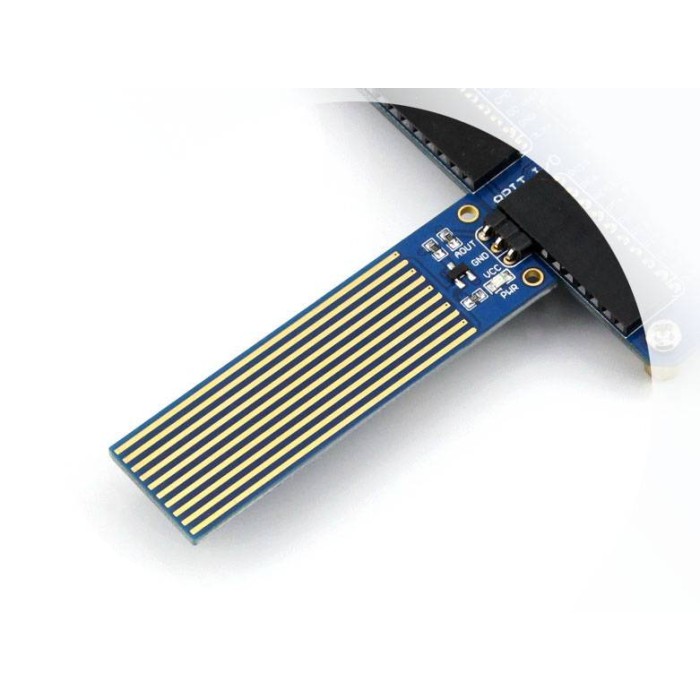

Waveshare Liquid Level Sensor
Waveshare Liquid Level Sensor Waveshare Liquid Level Sensor Waveshare Liquid Level Sensor Waveshare Liquid Level Sensor

Waveshare Liquid Level Sensor

$2.99
Availability: In stock
SKU
SEN-20-007

Output voltage boosts along with the immersion depth of the module.

Specifications:

  • Detection depth: 48mm
  • Power: 2.0V ~ 5.0V
  • Dimension: 19.0mm * 63.0mm
  • Mounting holes size: 2.0mm
  • How to use:
    In the case of working with an MCU:
    VCC ↔ 2.0V ~ 5.0V
    GND ↔ power supply ground
    AOUT ↔ MCU.IO (analog output)

Applications:

  • Water level alarm
