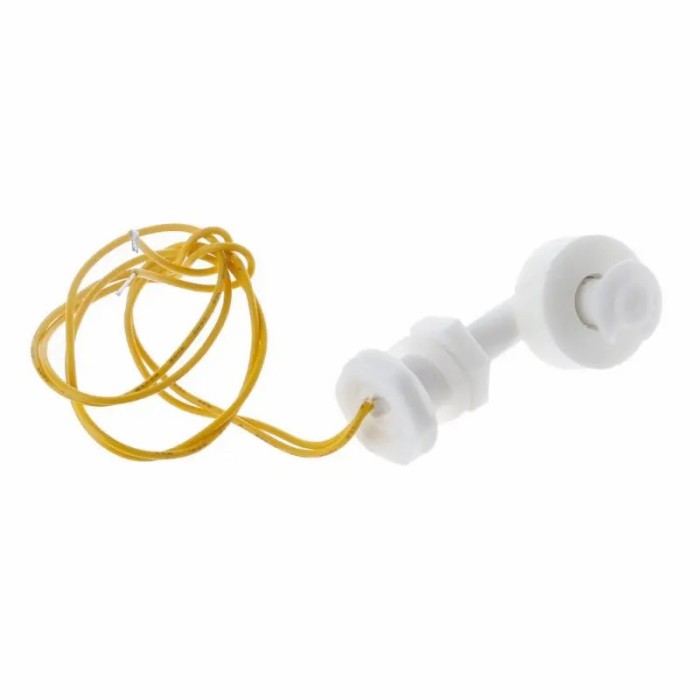

Floating Liquid Level Sensor Right Angle
$1.0500
In stock
SKU
SEN-20-013
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
P75 Liquid Level Sensor- Float Switch Previous
The Floating Liquid Level Sensor Right Angle is a highly reliable device designed to monitor and control the liquid levels in various tanks and containers. This sensor features a right-angle design, making it ideal for side-mounting in confined spaces. Its floating mechanism ensures accurate detection of liquid levels, triggering switches when the liquid reaches specified heights. Suitable for a wide range of applications, including water tanks, sump pumps, and industrial fluid reservoirs, this sensor provides dependable performance in various environments.
Specifications of Floating Liquid Level Sensor Right Angle
-
Max Switching Voltage: 100V DC
-
Max Switching Current: 0.5A
-
Max Breakdown Voltage: 220V DC
-
Max Carry Current: 1.0A
-
Max Contact Resistance: 100mΩ
-
Temperature Rating: -10 ~ +60 °C / +85 °C
-
Max Contact Rating: 10W
-
Dimensions: ---
-
Material: Polypropylene (PP)
-
Mounting Type: Side-mounted, right-angle design
-
Switch Type: NO/NC (Normally Open/Normally Closed) configurable
-
Cable Length: 35mm
-
Float Diameter: 28mm
-
Floating range of motion: ---
-
Weight: 13g
How to use of Floating Liquid Level Sensor Right Angle
-
Installation: Mount the sensor on the side of the tank or container at the desired height. Ensure the right-angle float is positioned correctly to move freely with the liquid level.
-
Wiring: Connect the sensor wires to your control system, configuring the NO/NC switch as required for your application.
-
Testing: Verify the sensor's operation by filling and draining the tank, ensuring it accurately detects and responds to liquid level changes.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | Max 100V DC |
| Operating Current (mA) | Max 0.1A |
| Operating Temp (°C) | -10 to +85 °C |
| Mounting Type | Side-mounted, right-angle design |
| Output Type | Digital |
| Environmental Parameter | Liquid Level |
| Probe Type | Immersion |
| Weight (g) | 13g |
| Relay Output | No |
