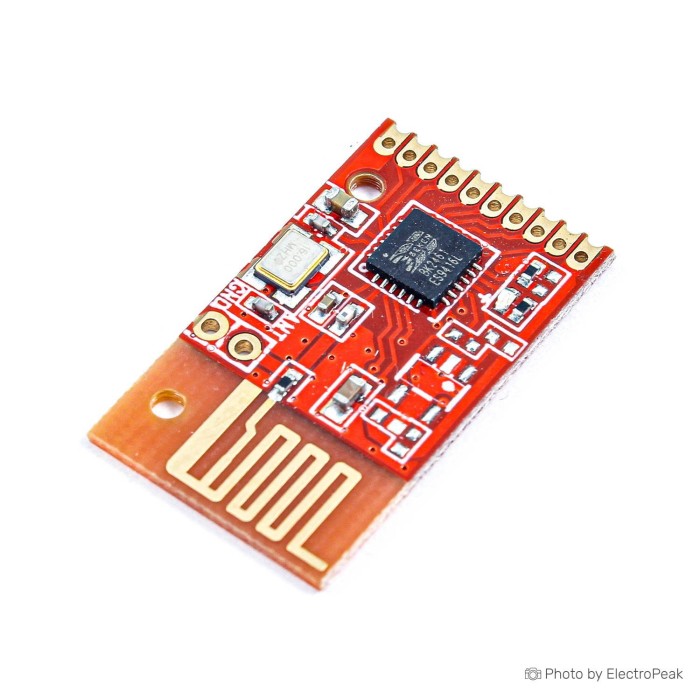

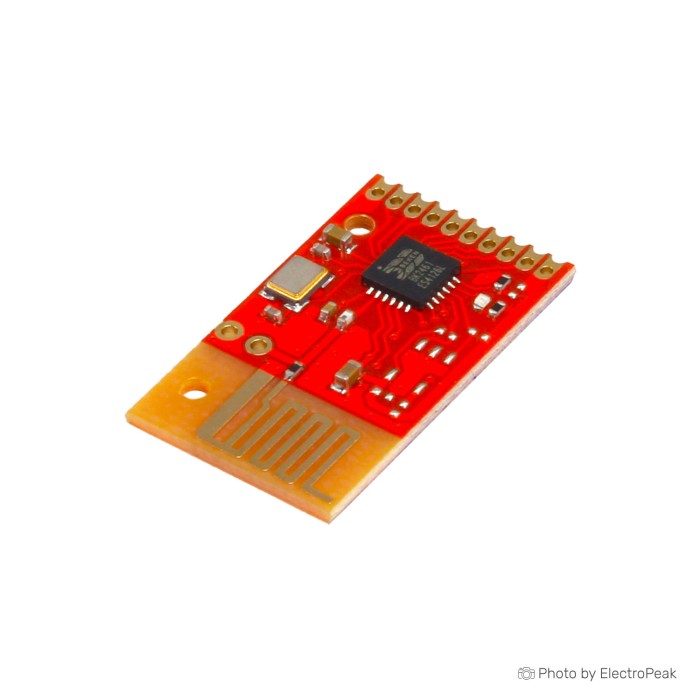

L24YK 2.4GHz 6-Channel Wireless Transmitter Module
$1.2500
In stock
SKU
COM-09-063
Volume discounts:
- +50 4 % $1.2000
- +100 6 % $1.1700
- +300 8 % $1.1500
- +500 10 % $1.1200
- +1000 12 % $1.1000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Bluetooth Audio Receiver AUX Adapter for Car Previous
The L24YK Wireless Transmitter Module is a 2.4GHz wireless data transmission module for electronic projects. It is designed to work with a receiver module for simple and fast wireless communication. The module supports transmitter code recognition by the receiver and connection using push buttons on the modules. Setup is done by wiring according to the circuit diagram and configuring pins B7 and B8. Receiver-side LED control is handled through pin B8 with different lighting modes.
Features of L24YK 2.4GHz 6-Channel Wireless Transmitter Module
- 2.4GHz wireless transmission
- 6-channel key input
- Active-low input ports
- Receiver code recognition support
- Pin B7 configuration
- Pin B8 LED control
- Push-button pairing
- Built-in MCU encoding and decoding
Specifications of L24YK 2.4GHz 6-Channel Wireless Transmitter Module
- Operating Frequency: 2.4GHz
- Communication Type: Wireless
- Setup Method: Wiring according to circuit diagram
- Setup Method: Pin configuration B7
- Setup Method: Pin configuration B8
- LED Control: Via pin B8
- LED Control: Various lighting modes
- Supports code recognition between transmitter and receiver
- Switch number of channels: 6 channels
- Input ports: 6-channel key input
- Input ports: Active low
- Working voltage: 2.5 - 3.6VDC
- Working Current: 0 - 15mA
- Working frequency: 2.5GHz
- Transmission distance: 40 meters (open area)
- Antenna: Built-in PCB antenna
- MCU on board with built-in encoding and decoding code
- Pairing code support
How to Use L24YK 2.4GHz 6-Channel Wireless Transmitter Module
- Wire the module according to the circuit diagram.
- Configure pins B7 and B8.
- Use the push buttons to pair the transmitter and receiver.
- Operate the transmitter after pairing is completed.
More Info
- The kit includes one pair of transmitter and receiver modules.
- The receiver-side LED behavior changes through pin B8 settings.
