L24YK 2.4GHz 6-Channel Wireless Receiver Module
$1.2500
In stock
SKU
COM-09-062
Volume discounts:
- +50 4 % $1.2000
- +100 6 % $1.1700
- +300 8 % $1.1500
- +500 10 % $1.1200
- +1000 12 % $1.1000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
L24YK 2.4GHz 6-Channel Wireless Transmitter Module Previous

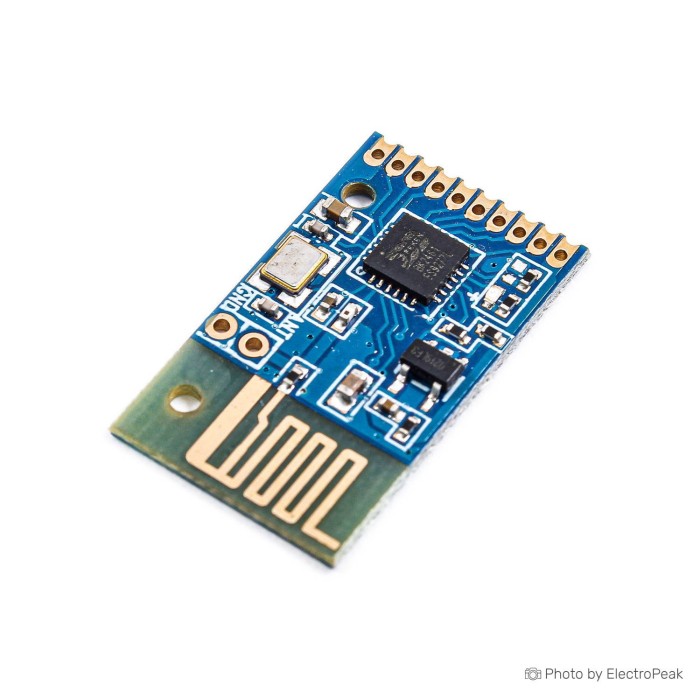

L24YK 2.4GHz 6-Channel Wireless Receiver Module is a wireless receiver module for data transmission and reception in electronic projects. It operates at 2.4GHz and supports 6-channel switching output. The module is designed for remote control and wireless communication applications. It also supports adjustable latch and non-latch output states. With a compact board size, it is suitable for space-conscious builds.
Features of L24YK 2.4GHz 6-Channel Wireless Receiver Module
- 2.4GHz wireless operation
- 6-channel switching output
- Adjustable latch and non-latch output
- Selectable receive current
- Low-power wireless design
- PCB antenna
Specifications of L24YK 2.4GHz 6-Channel Wireless Receiver Module
- Frequency: 2.4-2.5Ghz
- Receive current: 0.06/0.2/2/24mA selectable, default 24mA
- Output State: Adjustable Latch/Non-Latch
- The line of sight: 120m
- of codes: 20 transmit IDs can be stored
- Voltage: 2.8~3.6V
- Modulation method: GFSK
- Receiver sensitivity: -95dBm
- Data channel: 6 channels
- Output: 6-way switch
- Antenna: PCB Antenna
- Size: 23.3mm x 13.7mm x 2.1mm
- Input Voltage: 3.3V - 5V
- Pins: B7, B8, and switch pins
- Board color: Red or blue
How to Use L24YK 2.4GHz 6-Channel Wireless Receiver Module
- Connect the circuit according to the wiring diagram.
- Connect B7 to negative.
- Connect B8 to positive or negative.
- Press and hold the push button while pressing the transmitter B1 button several times.
- Disconnect power after release and free B7 from the body.
- Reconnect power and press the transmitter B1 button to activate LED1 on the receiver.
- Connect B8 to positive for short LED activation or to negative for always-on or always-off behavior.
More Info
- Supports pairing with transmitter modules for code reception.

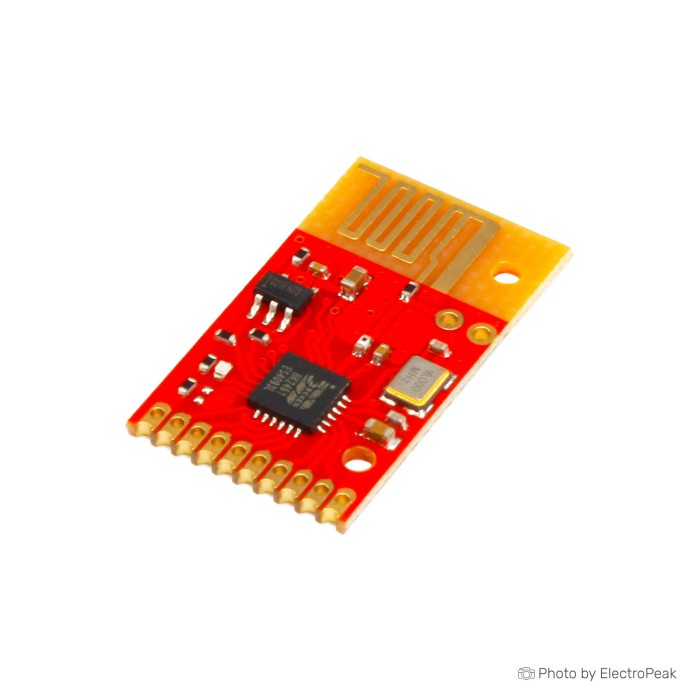

- Board color is shipped randomly in red or blue.
- Compact receiver module for wireless electronics projects.
| Interface Type | Digital |
|---|---|
| Operating Voltage (V) | 3.3V - 5V |
| Dimensions (mm) | 23x13 mm |
| Mounting Type | THT |
| Connector | Pin Header |
| Frequency Band | 2.4GHz |
| RF Modulation | GFSK |
| SIM Slots | 0 |
| Chipset | L24YK |
| Input Voltage (V) | 3.3V - 5V |
| Antenna Type | Internal Antenna |
| Application | Internet of Things (IoT) |
