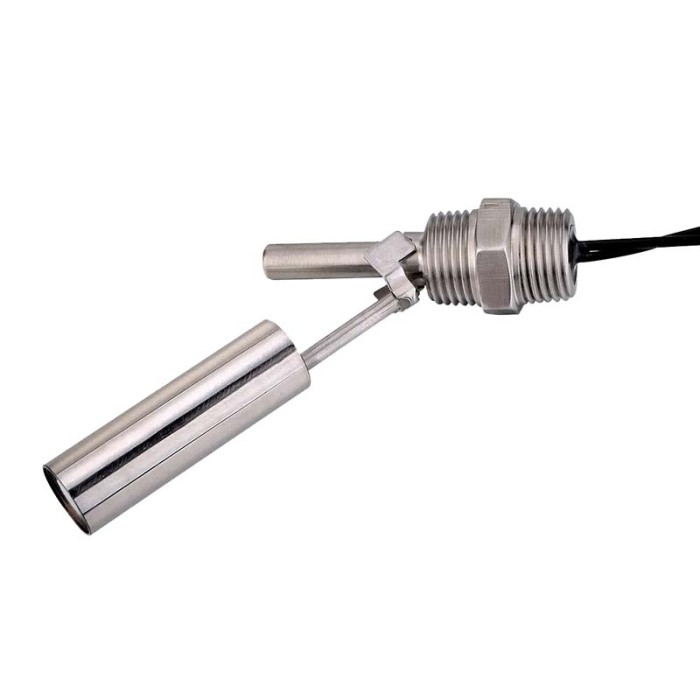

L12 Stainless Steel Liquid Level Sensor Right Angle - Float Switch
SAVE
As low as $11.9500
In stock
Only %1 left
SKU
SEN-20-049
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
Automatic Water Level Controller Module Previous
The L12 Stainless Steel Liquid Level Sensor is a right-angle float switch for liquid level detection. It is built from stainless steel for durable use and corrosion resistance. The sensor includes an IP67 protection rating. Two switch power options are available: 10W and 50W. This model is offered with G1/2 NTP mounting style.
Features of L12 Stainless Steel Liquid Level Sensor Right Angle - Float Switch
- Right-angle float switch
- Stainless steel body
- IP67 protection rating
- 10W and 50W options
- G1/2 NTP mounting style
Specifications of L12 Stainless Steel Liquid Level Sensor Right Angle - Float Switch
- Switch Power: 10W / 50W
- Operating Voltage: Max. 100VDC/100VAC (10W), 350VDC/300VAC (50W)
- Breakdown Voltage: Min. 150VDC (10W), 600VDC (50W)
- Operating Current: Max. 0.5A DC (10W), 0.7A DC / 0.5A AC (50W)
- Carry Current: Max. 1.0A (10W), 2.5A (50W)
- Contact Resistance: Max. 100mΩ
- Insulation Resistance: Min. 10⁹Ω (10W), 10¹⁰Ω (50W)
- Material: Stainless steel
- Mounting Style: G1/2 NTP
- Protection Rating: IP67
- Dimensions: ---
How to Use L12 Stainless Steel Liquid Level Sensor Right Angle - Float Switch
- Install the sensor using the G1/2 NTP mounting style.
- Connect the switch according to the selected 10W or 50W specification.
- Use the sensor for liquid level detection.
More Info
- Datasheet: Not available
- Model: L12
| Operating Voltage (V) | Max. 100VDC/100VAC (10W), 350VDC/300VAC (50W) |
|---|---|
| Operating Current (mA) | Max. 0.5A DC (10W), 0.7A DC / 0.5A AC (50W) |
| Mounting Type | G1/2 NPT |
| IP Rating | IP67 |
| Output Type | Digital |
| Environmental Parameter | Liquid Level |
| Probe Type | Immersion |
| Relay Output | No |
