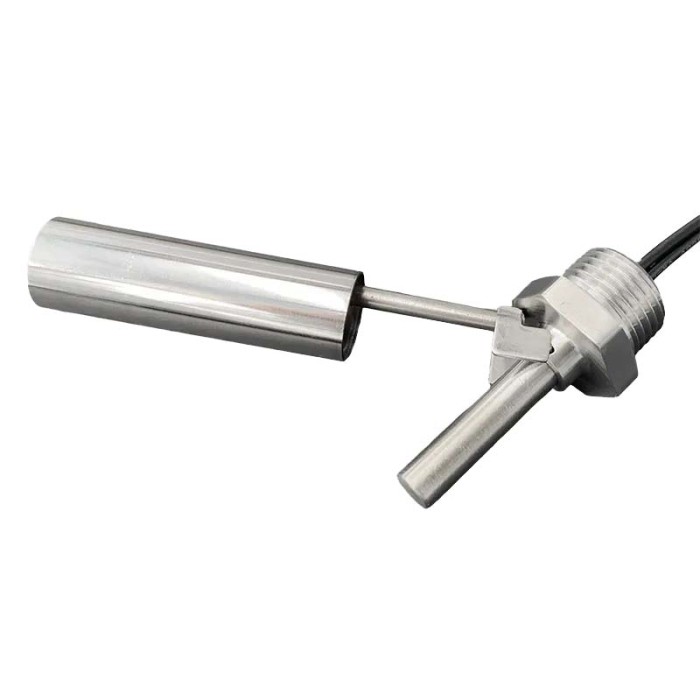

L11 Stainless Steel Liquid Level Sensor Right Angle - Float Switch
SAVE
As low as $7.9500
In stock
Only %1 left
SKU
SEN-20-048
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
L12 Stainless Steel Liquid Level Sensor Right Angle - Float Switch Previous
The L10 Stainless Steel Liquid Level Sensor is a right-angle float switch designed for accurate and reliable liquid level detection. Made of stainless steel, it offers high durability and resistance to corrosion. It features an IP67 protection rating, making it suitable for various industrial and commercial applications. Available in 10W and 50W options, it supports different voltage and current capacities to meet diverse needs.
Specifications of L11 Stainless Steel Liquid Level Sensor Right Angle
-
Switch Power: 10W / 50W
-
Operating Voltage: Max. 100VDC/100VAC (10W), 350VDC/300VAC (50W)
-
Breakdown Voltage: Min. 150VDC (10W), 600VDC (50W)
-
Operating Current: Max. 0.5A DC (10W), 0.7A DC / 0.5A AC (50W)
-
Carry Current: Max. 1.0A (10W), 2.5A (50W)
-
Contact Resistance: Max. 100mΩ
-
Insulation Resistance: Min. 10⁹Ω (10W), 10¹⁰Ω (50W)
-
Material: Stainless steel
-
Mounting Style: G1/2 NTP
-
Protection Rating: IP67
-
Dimensions: ---
Datasheet of L11 Stainless Steel Liquid Level Sensor Right Angle
Datasheet: Not available
| Operating Voltage (V) | Max. 100VDC/100VAC (10W), 350VDC/300VAC (50W) |
|---|---|
| Operating Current (mA) | Max. 0.5A DC (10W), 0.7A DC / 0.5A AC (50W) |
| Mounting Type | G1/2 NPT |
| IP Rating | IP67 |
| Output Type | Digital |
| Environmental Parameter | Liquid Level |
| Probe Type | Contact |
| Chipset | L11 |
