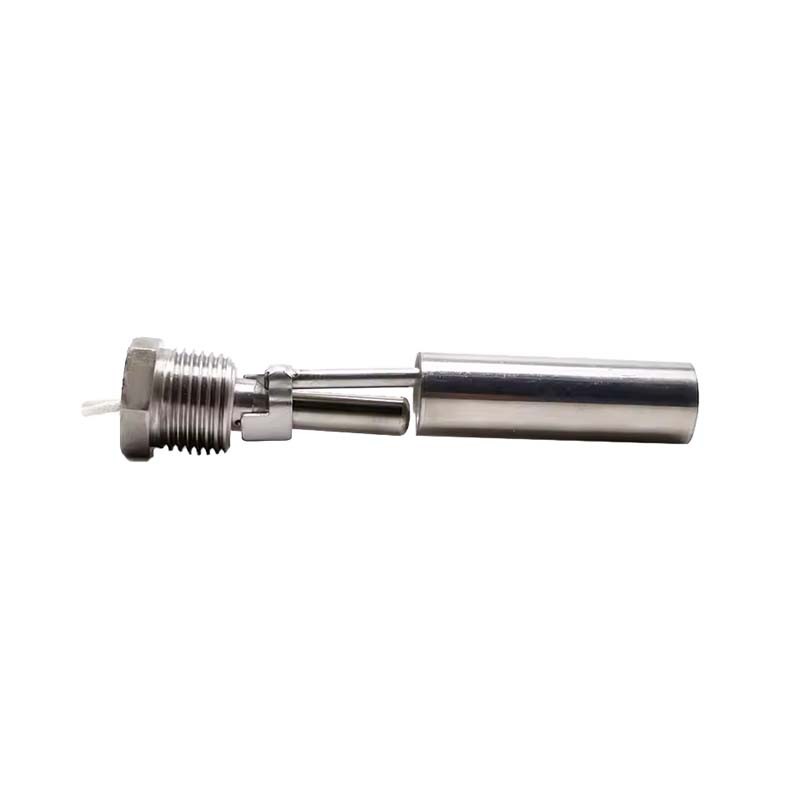

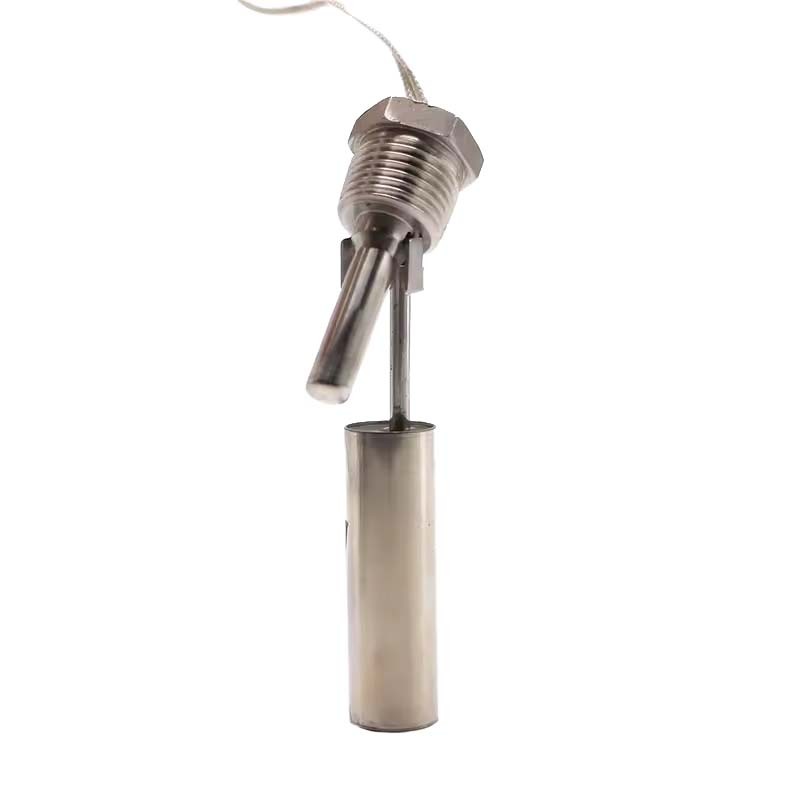

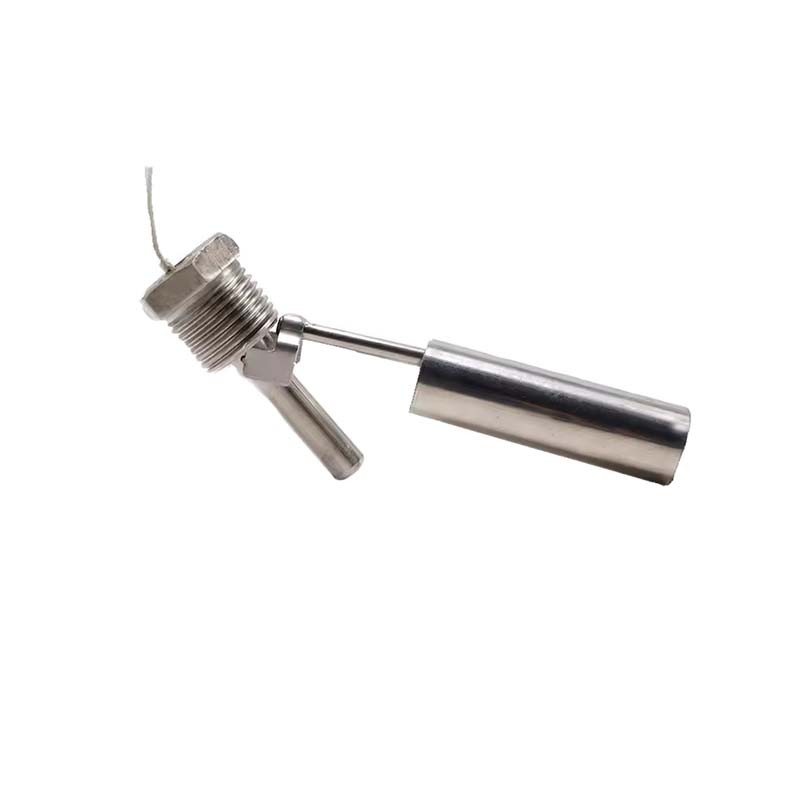

L10 Stainless Steel Liquid Level Sensor Right Angle - Float Switch

[SEN-20-047]
Shop with confidence Learn More
Availability: In stock
SKU
SEN-20-047
Ships in 2-3 business days, then:
Free delivery in 10-15 days by YunExpress on orders over $35.
Free delivery in 5-7 days by DHL on orders over $200.
More shipping info
As low as $11.5000

The L10 Stainless Steel Liquid Level Sensor is a right-angle float switch designed for accurate and reliable liquid level detection. Made of stainless steel, it offers high durability and resistance to corrosion. It features an IP67 protection rating, making it suitable for various industrial and commercial applications. Available in 10W and 50W options, it supports different voltage and current capacities to meet diverse needs.

Specifications of L10 Stainless Steel Liquid Level Sensor Right Angle

  • Switch Power: 10W / 50W

  • Operating Voltage: Max. 100VDC/100VAC (10W), 350VDC/300VAC (50W)

  • Breakdown Voltage: Min. 150VDC (10W), 600VDC (50W)

  • Operating Current: Max. 0.5A DC (10W), 0.7A DC / 0.5A AC (50W)

  • Carry Current: Max. 1.0A (10W), 2.5A (50W)

  • Contact Resistance: Max. 100mΩ

  • Insulation Resistance: Min. 10⁹Ω (10W), 10¹⁰Ω (50W)

  • Material: Stainless steel

  • Mounting Style: M10 Threads

  • Protection Rating: IP67

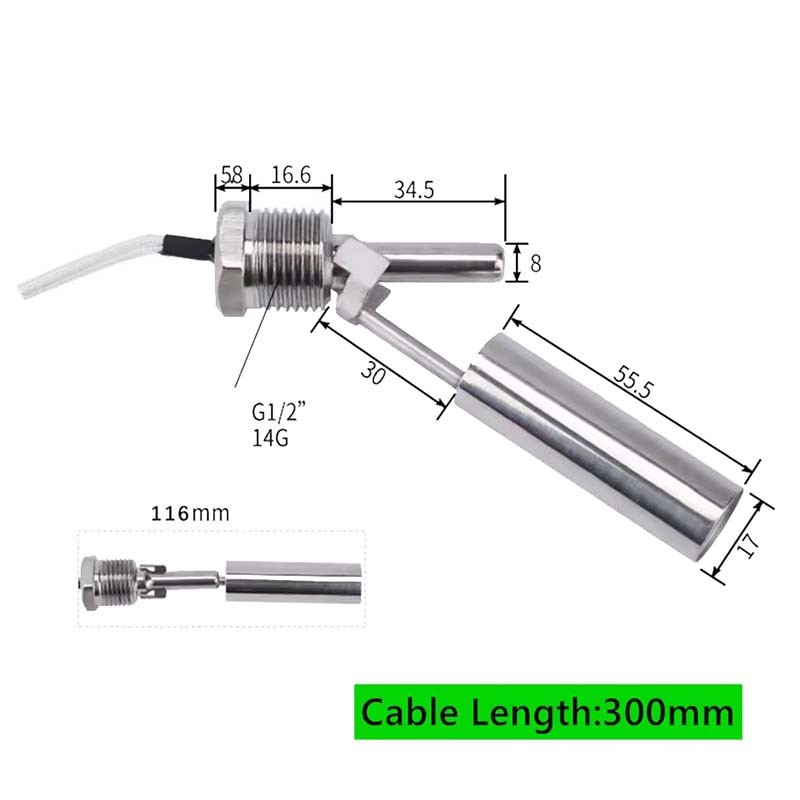

  • Dimensions: ---

Datasheet of L10 Stainless Steel Liquid Level Sensor Right Angle

Datasheet: Not available
