iTEAD NX3224T028 2.8inch Nextion HMI Touch LCD Display
$30.9500
In stock
SKU
LCD-01-097
Volume discounts:
- +10 4 % $29.8300
- +25 5 % $29.2700
- +50 7 % $28.7200
- +100 9 % $28.1600
- +300 11 % $27.6000
Ships in 2-3 business days, then:
Free delivery in 12-15 days by Tracked Economic Shipping on orders over $100.
Free delivery in 7-10 days by Express Shipping on orders over $300.
More shipping info
Shop with confidence Learn More
iTEAD NX4024T032 3.2inch Nextion HMI Touch LCD Display Previous

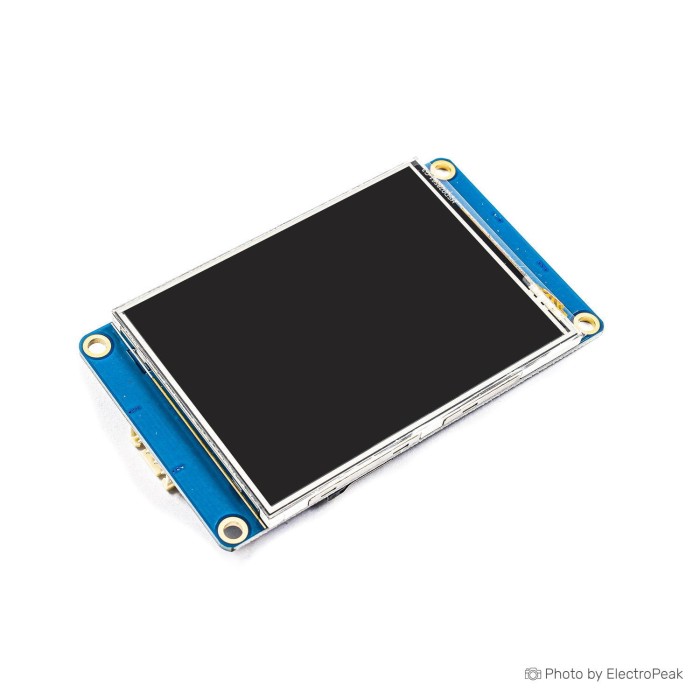

The iTEAD NX3224T028 2.8inch Nextion HMI Touch LCD Display is a 2.8-inch TFT HMI display designed for control and visualization interfaces. It uses a serial UART connection for communication with a project. The display includes a resistive touch panel and a micro-SD card slot. It supports adjustable brightness and is suitable for HMI-based electronics and robotics projects.
Features of iTEAD NX3224T028 2.8inch Nextion HMI Touch LCD Display
- 2.8-inch TFT display
- 320 x 240 resolution
- Resistive touch panel
- Serial UART interface
- 4MB internal flash memory
- Micro-SD card slot
- Adjustable brightness
- CE/EMC and RoHS certifications
Specifications of iTEAD NX3224T028 2.8inch Nextion HMI Touch LCD Display
- Resolution: 320 x 240
- Touch type: Resistive
- Internal flash memory: 4MB
- Micro-SD slot: Yes
- Display size: 2.8”
- Brightness adjustment: 0~180 nit with 1% steps
- Compatible with Arduino
- Compatible with Raspberry Pi A+
- Compatible with Raspberry Pi B+
- Compatible with Raspberry Pi 2
- Compatible with Raspberry Pi 3
- Certifications: CE/EMC
- Certifications: RoHS
- Interface type: Serial
- Board dimensions: 85mm*49.8mm
- Weight: 71 g
How to Use iTEAD NX3224T028 2.8inch Nextion HMI Touch LCD Display
- Connect the display to your project through the UART serial interface.
- Use the Nextion editor to create buttons, text, progress bars, sliders, and panels.
- Load your interface design to the display and integrate it with your application.
More Info
- HMI solution for control and visualization
- Designed for IoT and consumer electronics applications
- Includes hardware and software components
| Model | NX3224T028 |
|---|---|
| Platform | Arduino Mega, Arduino Uno, Raspberry Pi 3 |
| Display Size | 2.8 |
| Display Size Range | 2 inch to 3.49 inch |
| Display Resolution | 320 x 240 |
| Display Interface | UART |
| Panle Type | TFT |
| Display Color Type | Full Color |
| Touchscreen Type | Resistive |
| Backlight Type | White LED |
| Operating Voltage (V) | 5V |
| Pins | 4 |
| Brightness | 0~180 nit with 1% intervals |
