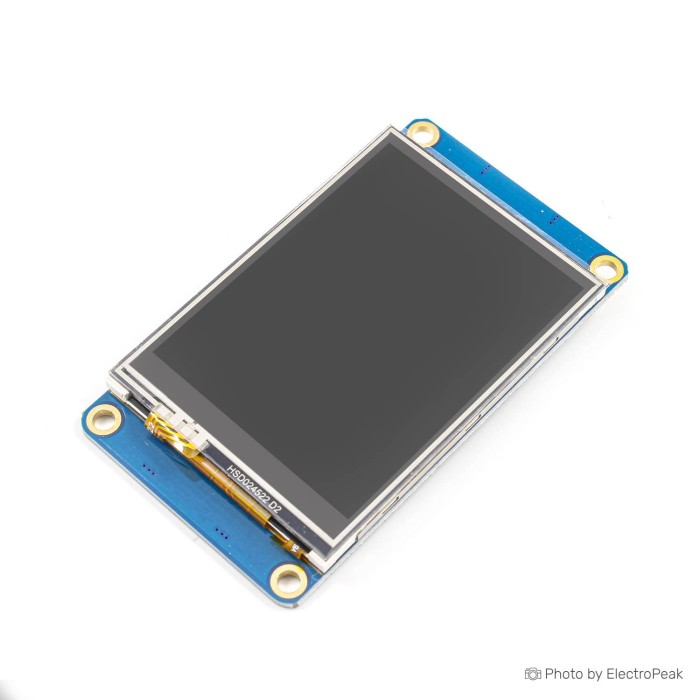

iTEAD NX3224T024 2.4inch Nextion HMI Touch LCD Display

The iTEAD NX3224T024 2.4 Inch Nextion HMI Touch LCD Display is a TFT HMI module for control and visualization interfaces. It features a 2.4-inch touch display with a 320 x 240 resolution and a resistive touch panel. The display uses a serial interface for communication and is designed for UART-based connection. It includes Nextion editor support for building graphical interfaces with buttons, text, progress bars, sliders, and instrument panels. The module also includes on-board flash memory and a micro SD card slot.

Features of iTEAD NX3224T024 2.4 Inch Nextion HMI Touch LCD Display - 320x240

• 2.4-inch TFT display
• 320 x 240 resolution
• Resistive touch panel
• Serial communication interface
• Nextion editor support
• On-board micro SD card slot

Specifications of iTEAD NX3224T024 2.4 Inch Nextion HMI Touch LCD Display - 320x240

• Resolution: 320 x 240
• Display size: 2.4”
• Touch type: Resistive touch
• Flash memory: 4M
• Micro SD slot
• Brightness adjustment: 0~180nit
• Brightness adjustment interval: 1%
• Compatible with Raspberry Pi A+, B+ and Raspberry Pi 2
• CE/EMC, RoHS certifications
• No display controller
• Serial interface
• Board dimensions: 74.4*42.9mm
• Weight: 62 grams
• Color: RGB 65K true to life colours
• Touch panel: 4-wire resistive touch panel
• Interface: Easy 4 pin interface to any TTL Serial Host
• Flash memory use: User Application Code and Data
• Firmware upgrade: On board micro-SD card
• Visual area: 36.72mm(L)×48.96mm(W)
• Power consumption: 5V90mA
• Generic using for all Arduino or Raspberry Pi project

How to Use iTEAD NX3224T024 2.4 Inch Nextion HMI Touch LCD Display - 320x240

1. Provide a UART connection to the module.
2. Design the interface in Nextion editor.
3. Load the project and use the display in your application.

More Info

• Designed as an HMI solution for control and visualization.
• Includes hardware and software parts.
• Suitable for interface design with drag-and-drop components.
