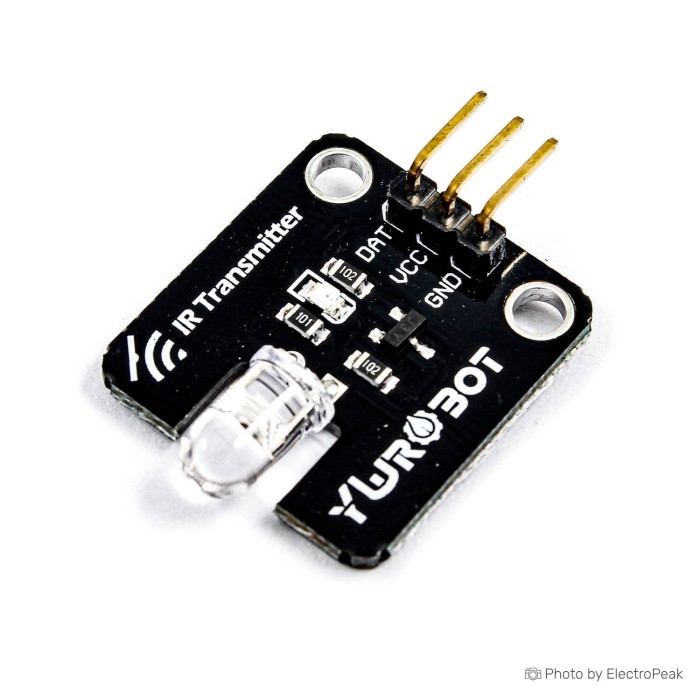

YwRobot 38KHz Infrared Transmitter Module

The YwRobot 38KHz Infrared Transmitter Module is an infrared transmitter module for Arduino robot applications. It provides digital output and includes one transmitter. The module is designed for infrared signal transmission using light. It also features LED indication and a port compatible with expansion boards.

This infrared transmitter module is suitable for electronic and robotics projects that require infrared transmission. The YwRobot 38KHz Infrared Transmitter Module can be used for sending binary or modulated information through light. Its compact size and simple interface support straightforward integration in project builds.

Features of YwRobot 38KHz Infrared Transmitter Module

• 38KHz infrared transmission
• Digital output
• One transmitter
• LED indication
• Expansion board compatible port
• Convenient debugging
• Arduino robot use

Specifications of YwRobot 38KHz Infrared Transmitter Module

• Dimensions: 25 * 21mm
• Voltage: 5V
• Output: Digital
• Transmitter: 1
• Working distance: 1-2 meters
• Wavelength: 940nm
• Platform: Arduino

How to Use YwRobot 38KHz Infrared Transmitter Module

1. Connect the module to a compatible Arduino setup.
2. Use the digital output for infrared transmission.
3. Operate it within the 1-2 meter working distance.

More Info

• Infrared transmission is used in many electronics and robotics applications.
• The module supports light-based data transfer.
